ED-8722 Page 3 of 4

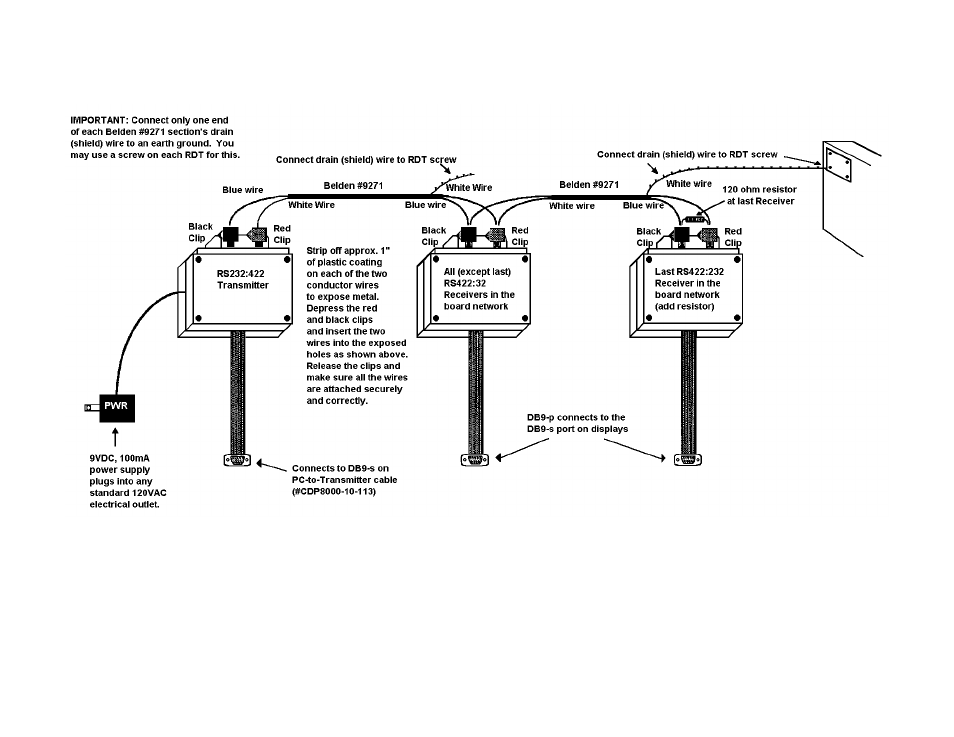

RS232:422 XMTR / RS422:232 RCVR WIRING DIAGRAM
Note: The colors of the two conductor wires in the Belden #9271 may be different from the colors indicated/ Just be sure to connect the same colored wires to
the same colored clips on the RS232:422 transmitter and RS422:232 receivers. For instance, attach all the black wires to the clack clips and all the grey wires to
all the red clips. If all RDT’s after a certain point do not receive any messages, check for reversed wire colors first, and then try reseating the wires in the clips.
Twist wires of the same color together before inserting them into the same clip.
DAKTRONICS, INC.
