Section 2: mechanical installation, 1 wall mounting, Section 2 – Daktronics TI-2022 Portable LED Timer User Manual

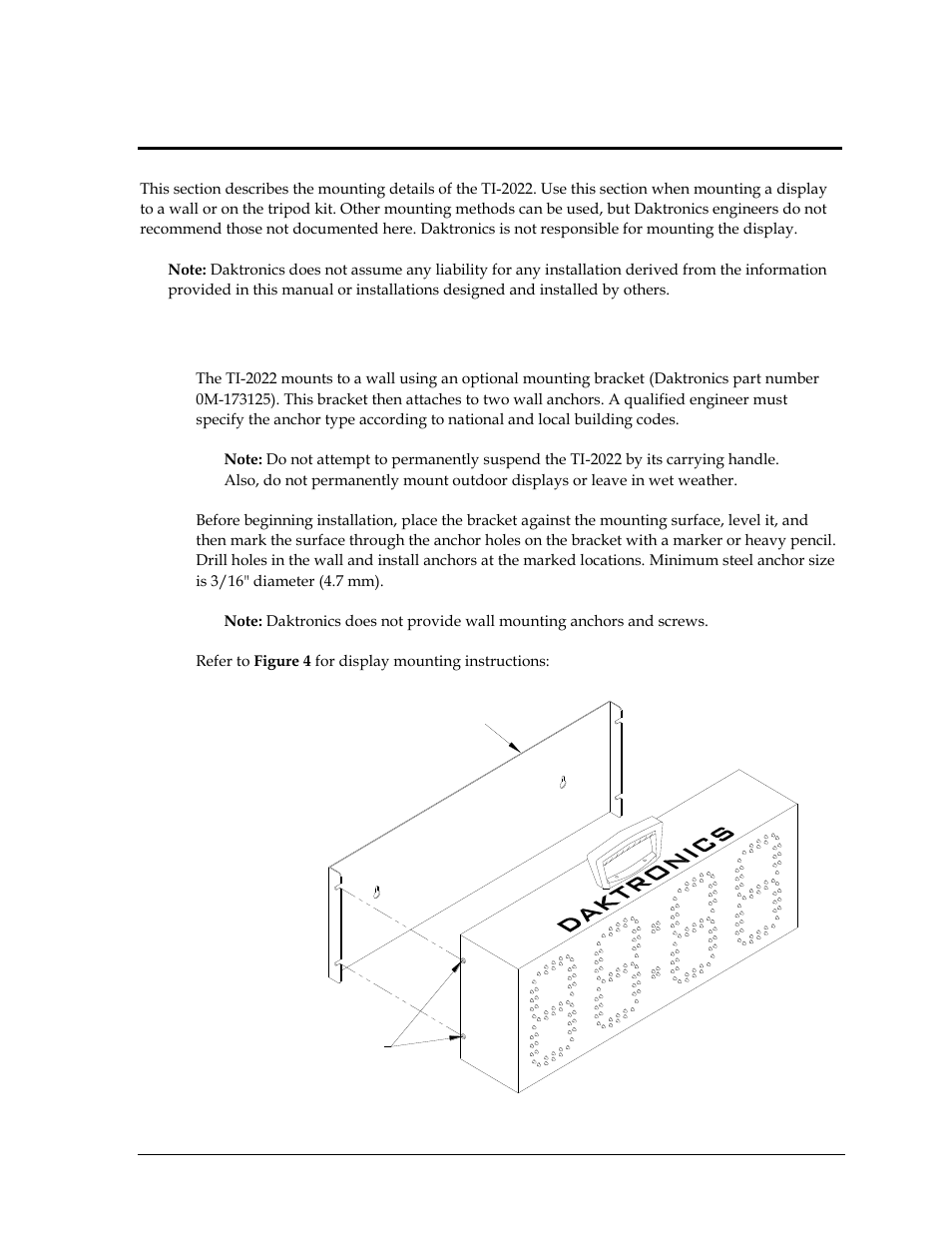

Page 11: Mechanical installation, Wall mounting
