CARE AND MAINTENANCE - MODEL ZTR 1001

DRIVE SYSTEM ADJUSTMENTS:

Due to both the complex nature of the transmission and the number of special tools
required for service, adjustments should be entrusted to your dealer.

There are a number of simple owner service items which greatly influence the
performance of the drive system.

1. Front and rear tires must be inflated to proper specifications.

2. Rear drive chain tension.

3. Tightness of all controls and linkages pertaining to the drive levers.

4. Lubrication of both primary and final drive chains. The use of a high quality chain

lubricant is highly recommended.

REAR CHAIN ADJUSTMENT:

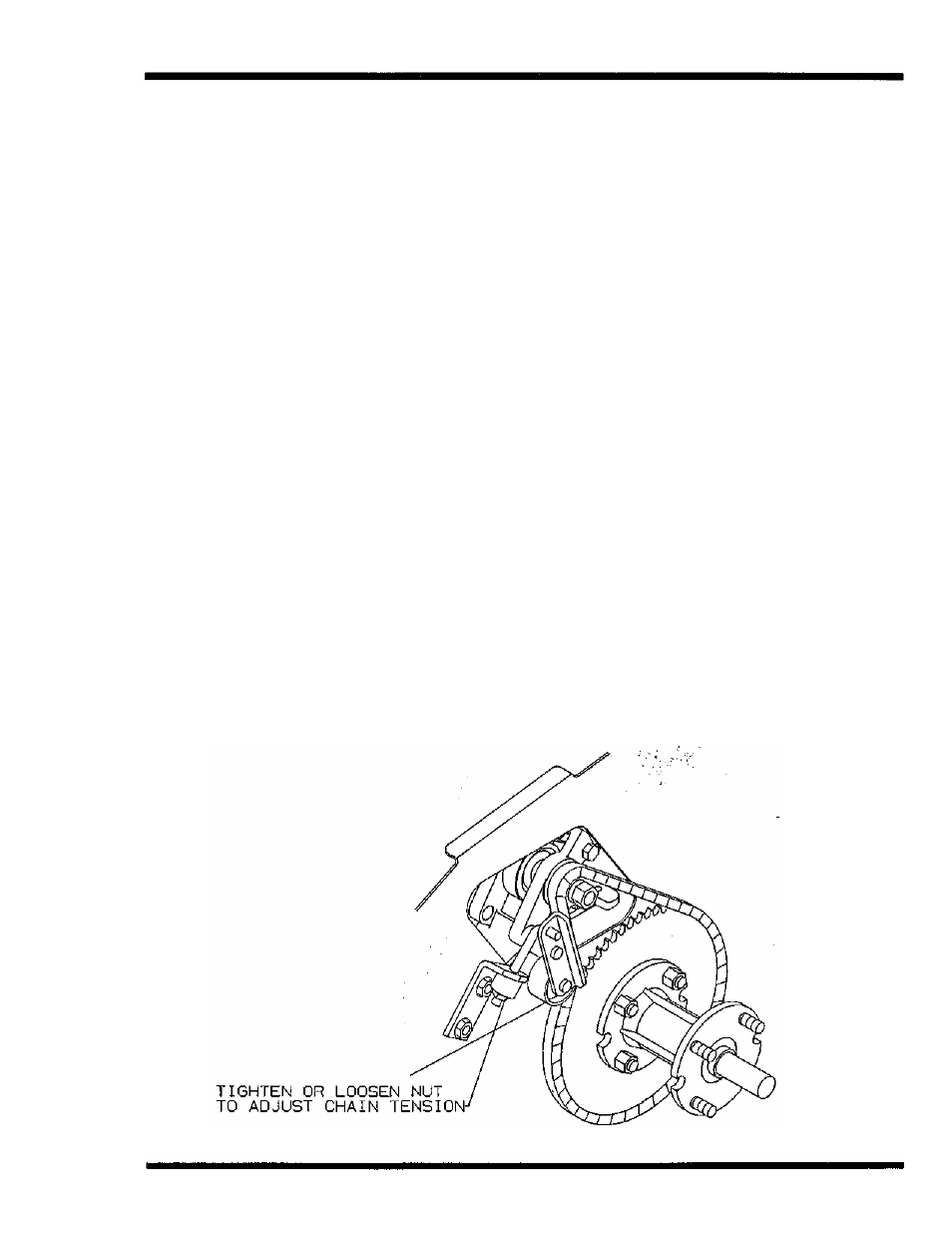

Adjustment of the rear drive chains of the Model 1001 is accomplished in the manner shown in the
illustration below.

Proper tension and lubrication of the rear drive chains with a quality chain lubricant is essential for safe
operation of this model.
