CARE AND MAINTENANCE - MODEL ZTR 1001
BELT TENSION 36" DECK:
ENGINE TO MOWER DECK BELT:

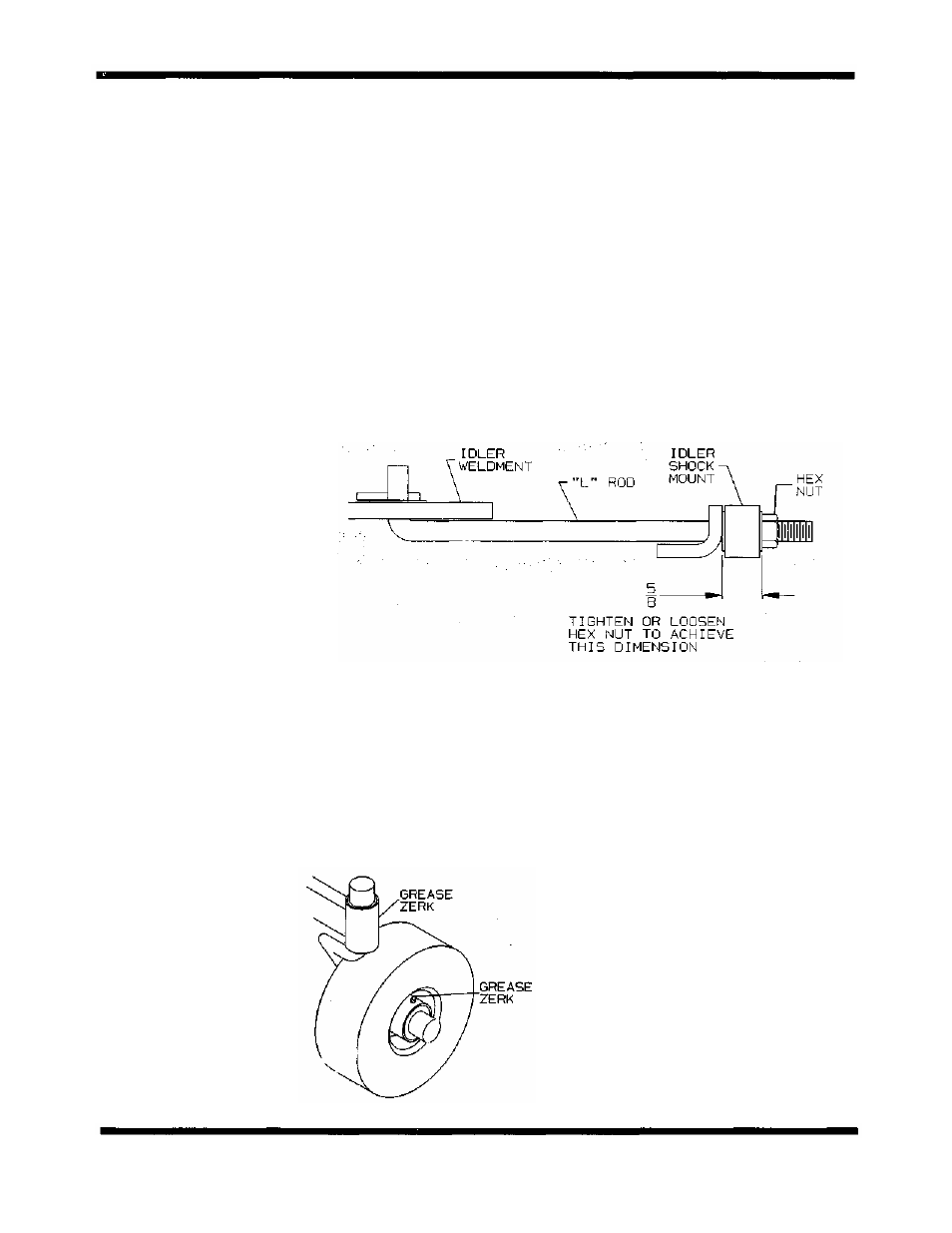

Adjust idler shock mount per diagram.
When fitted, the 36" mower deck belt tension is maintained through an
adjustable idler and shock mount. To adjust belt tension, tighten hex nut
until rubber shock mount is compressed to the dimension shown in the
illustration below.
CHASSIS: Number of grease zerks used: (4)
LOCATIONS: (1) each front wheel caster and each front wheel hub
SERVICE INTERVALS: Every 50 hours of operation
RECOMMENDED GREASE: Name brand wheel bearing or multi -purpose grease
Lubricate each front wheel to allow even
distribution of grease within the wheel,
rotate or spin each front wheel after (3)
pumps of the grease gun. Repeat
process until the appearance of g rease is
noted completely around each caster
axle.
LUBRICATION:
