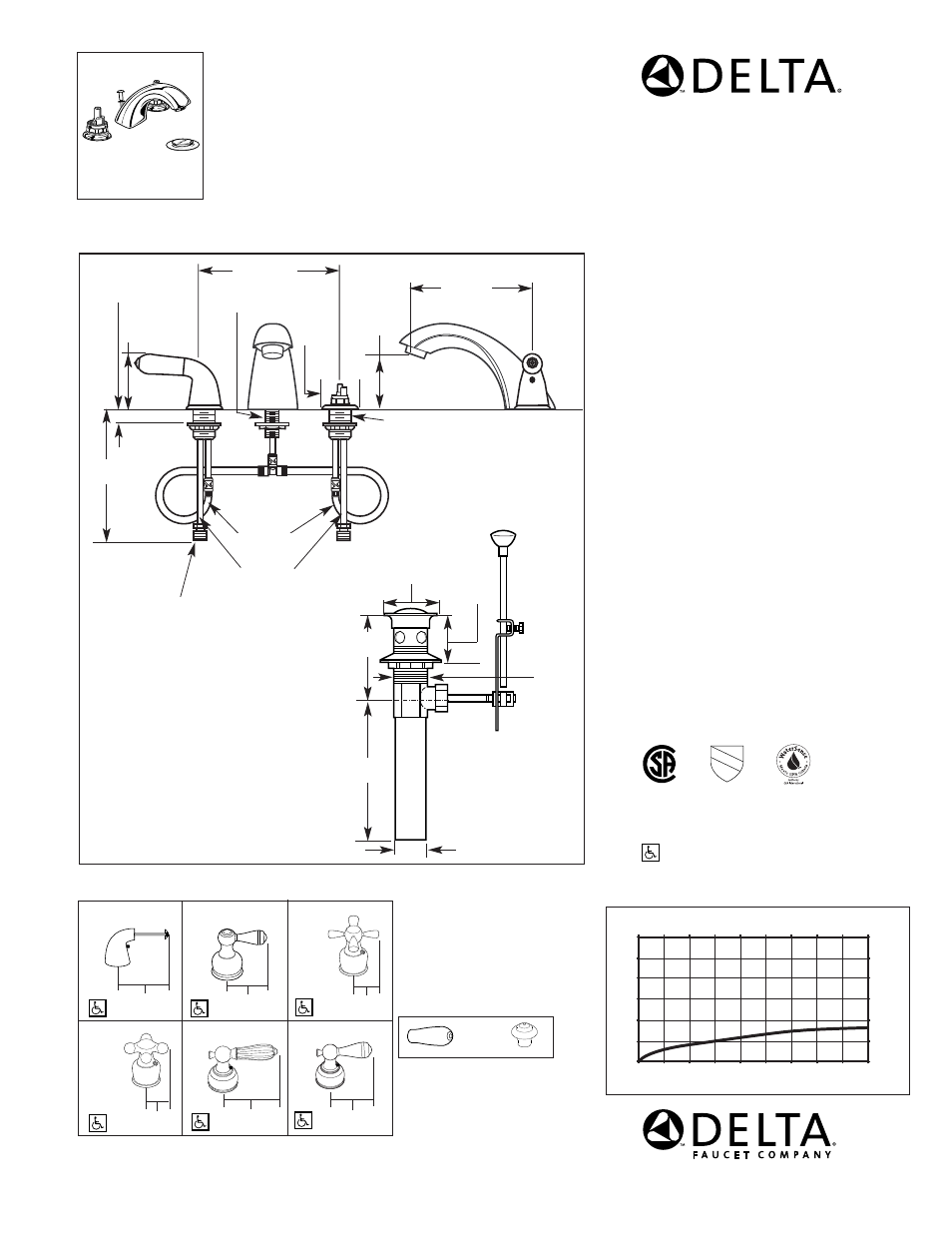

Delta 3530-LHP - Manual

Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
3530-LHP
3 3/8"
(86 mm)
1 3/8"
(35 mm)
Dia.
4 5/8"
(118 mm)
1 1/4" (32 mm) Dia.
®
®
U P C
C CO OM MP PL LIIE ES S W WIIT TH H::
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
• EPA Water Sense
• ASTM F409 (for non-metallic drain)
LAVATORY
FAUCETS
■ Innovations ® Series
■ Two Handle Widespread Deck Mount
■ 3 Hole Sink Applications
■ 6" to 16" Centers
■ Quick-Snap ® Installation
STANDARD SPECIFICATIONS:
•
Solid brass fabricated end valve and
spout bodies.
• Widespread - 6" (152mm) to
16" (406 mm) centers.
• 5 1/4" (133 mm) long, 3 7/8" (98 mm)
high, rigid spout.
• Quick-Snap ® installation.
• LHP - Less Handle Program. See handle
options below.
• 1/4 turn handle stops.
• Hot and cold stems are interchangeable.
• Control mechanism is the rotating
cylinder type with stainless steel plate and
180° rotation, with replaceable non-metallic
seats operating in stainless steel lined sockets.
• 3/8" O.D. copper supply tubes.
• Models with suffix “WF” and “LHP” supplied
with 1/2"-14 NPSM adapters.
• Models have metal drain with pop-up type
fitting with plated flange and stopper.
• Maximum flow rate 1.5 gpm @ 60 PSI.
DSP-L-3530 Rev. E
