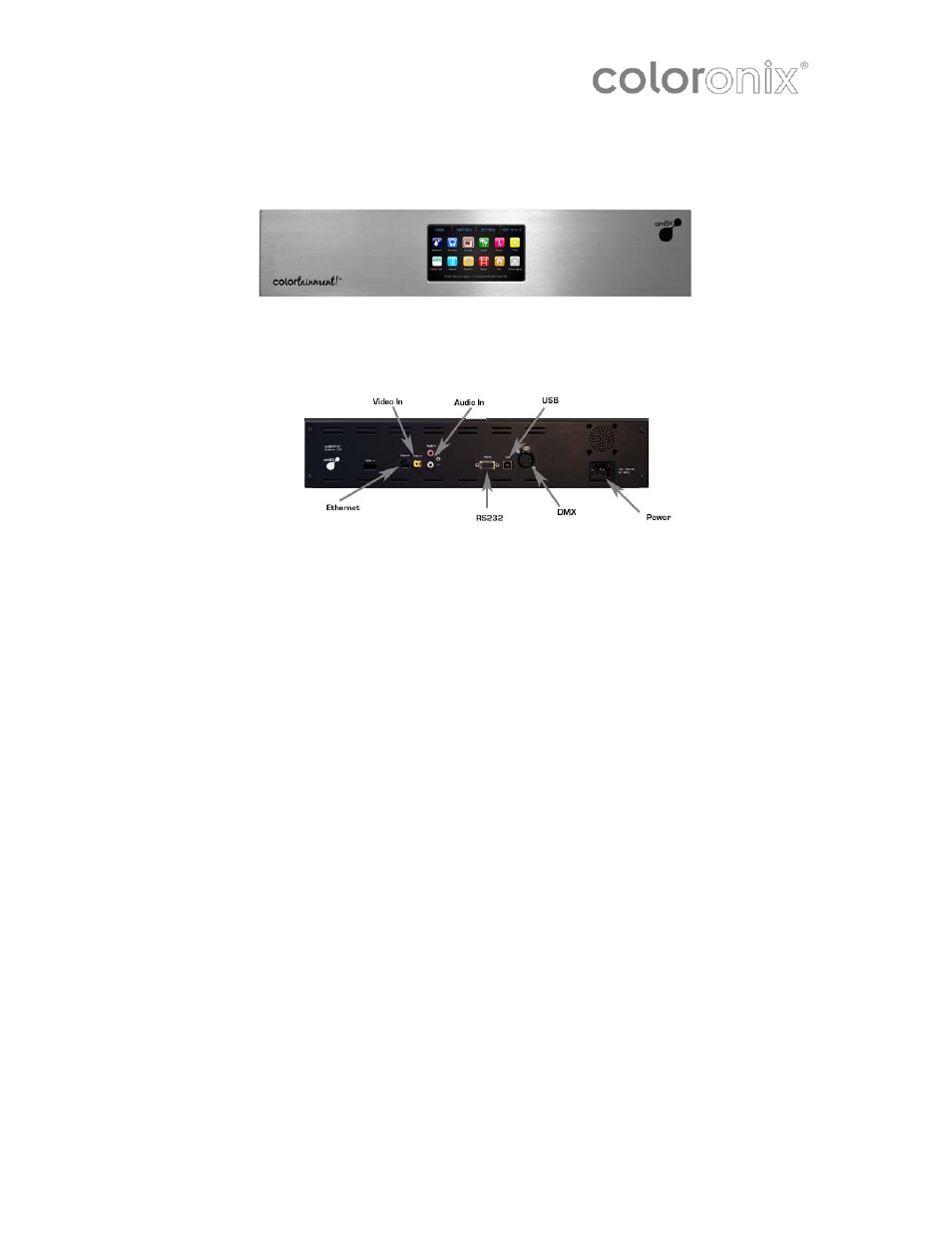

Front and Back Panel
Front Panel
Back Panel
Touchscreen
Easy to use Touchscreen interface allows you to navigate through pre-installed ambient
lighting effects, change the daily schedule and alter the light settings.
Ethernet
For network connectivity and connection to other devices.
Video In
Allows LED lighting installation to be synchronized to video content, producing dynamic
lighting effects.
Audio In
Connects LED lighting installation to an audio source for automated dynamic lighting
effects synchronized to music.
RS232
Compatible connection to other devices and systems.
USB
For PC connection and use with PC based Color Ray applications.
DMX
Industry standard interface and connection to LED lighting installations. Single DMX
512 universe supported with 5 pin XLR connector.
Power
100 - 240V AC, 50-60Hz, 20W
