Dremel 03-5415317 - Manual (Page 22)

22
14
14
8
2
3
4
6 7
5
10
10
11
11
15
13
1 9
8
16

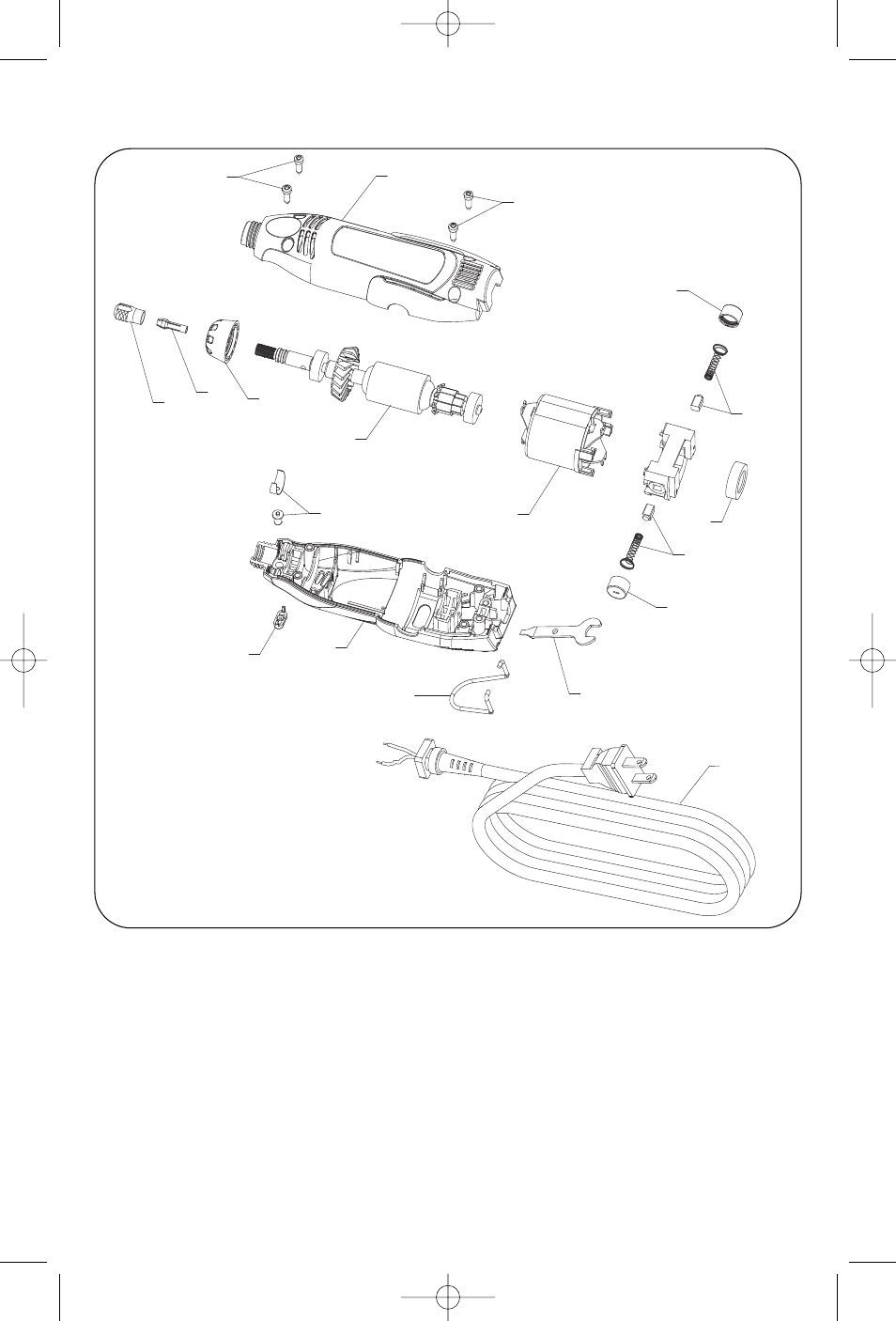

SERVICE PARTS & DIAGRAM
Ref. Part No. Description
1 2615990962 Wrench
2 2615297355 Collet Nut
3 2615110480 1/8" Collet (In Tool)
4 2615919754 Nose Cap
5 2610912779 Armature and
Bearing Assembly
6 2610907324 Field Assembly
7 2610913818 Shaft Lock Assembly
8 2610925724 Housing Set
9 2610925720 Hanger
Ref. Part No. Description
10 2610912785 Brush Cap (Pair)
11 2615302695 Brush & Brush Spring
(Pair)
12 2610938877 Switch Assembly
13 2610999103 Cord
14 2615294035 Screws (Individual)
15 2615297373 Rubber Bearing
Sleeve
16 2610925721 Glamour Cap
