BUG-O Systems CWP-18 - Manual (Page 36)

36

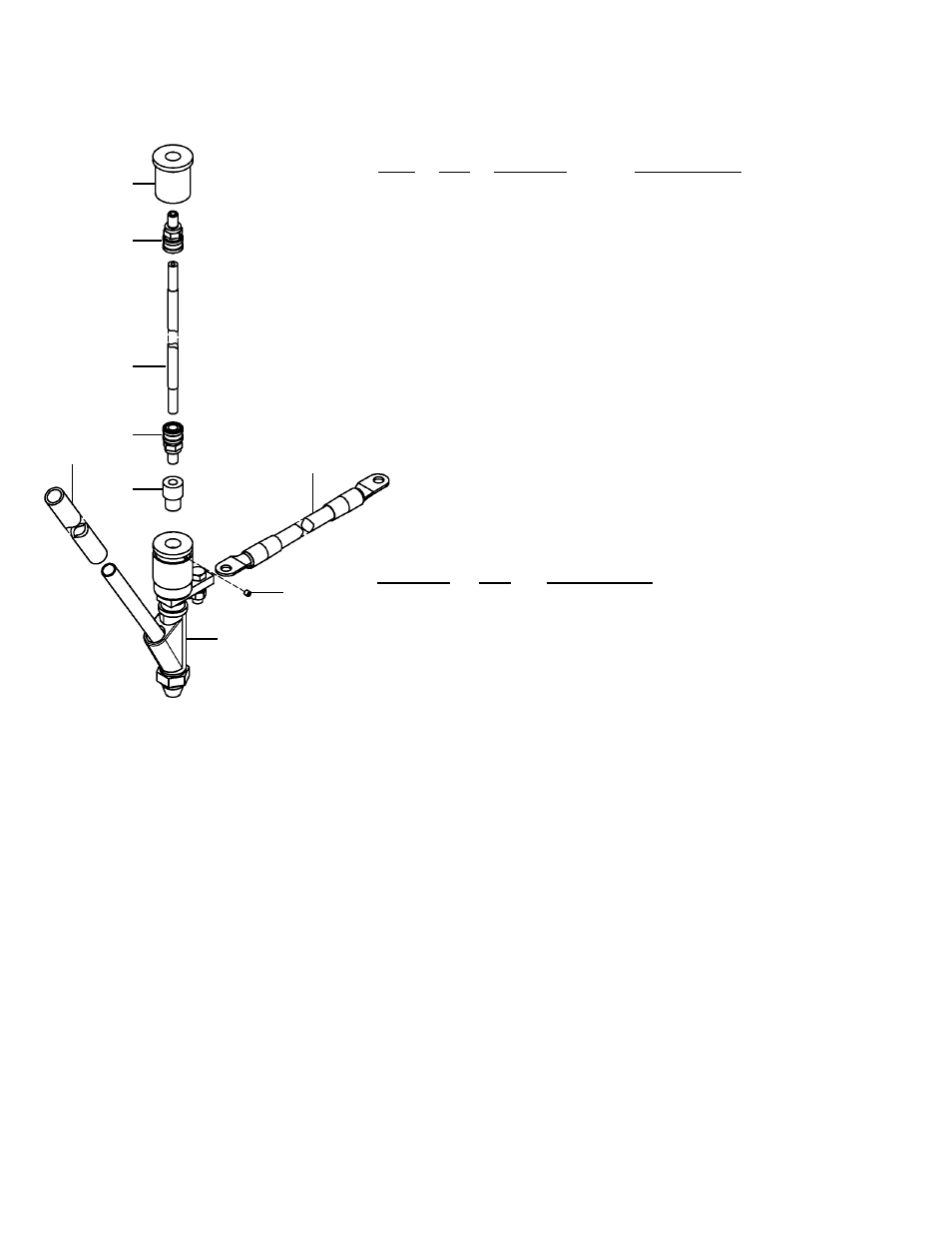

CWO-3710-_ SUB ARC GUN ASSEMBLY
1
2
3
2
4
7
5
6
8
ITEM QTY PART NO. DESCRIPTION
1 1 CWO-1816 Wire Feed Adaptor
2 2 CWO-1817 Bulk Head Connector QCB
3 1 CWO-3697 QCC 72" (1829 Mm) Liner
4 1 CWO-3695-1/2 Adaptor K231 1/2"
5 1 CWO-3970-72 Weld Cable 4/0 Assembly 72"
(1829 mm) LG
6 1 CWO-3690-1/8 Sub-Arc Nozzle 1/8"
1 CWO-3690-3/16 Sub-Arc Nozzle 3/16"
1 CWO-3690-5/32 Sub-Arc Nozzle 5/32"
7 1 CWO-3491-48 Flux Hose 3/4" ID x 1" OD
8 1 FAS-0452 Set Scr 1/4-20 x 1/4
9* 1 BUG-2708 Clamp
*Item not shown in drawing.
DRIVE ROLLS
PART NO. QTY DESCRIPTION
LDC-0013 1 3/32"-7/32" (2.4-5.6 mm) WIRE SIZES
LDC-0014 1 1/16"-3/32 (1.6-2.4 mm) WIRE SIZES
LDC-0015 1 .035"-.052" (.9-1.3 mm) SOLID WIRE
