UNPACKING

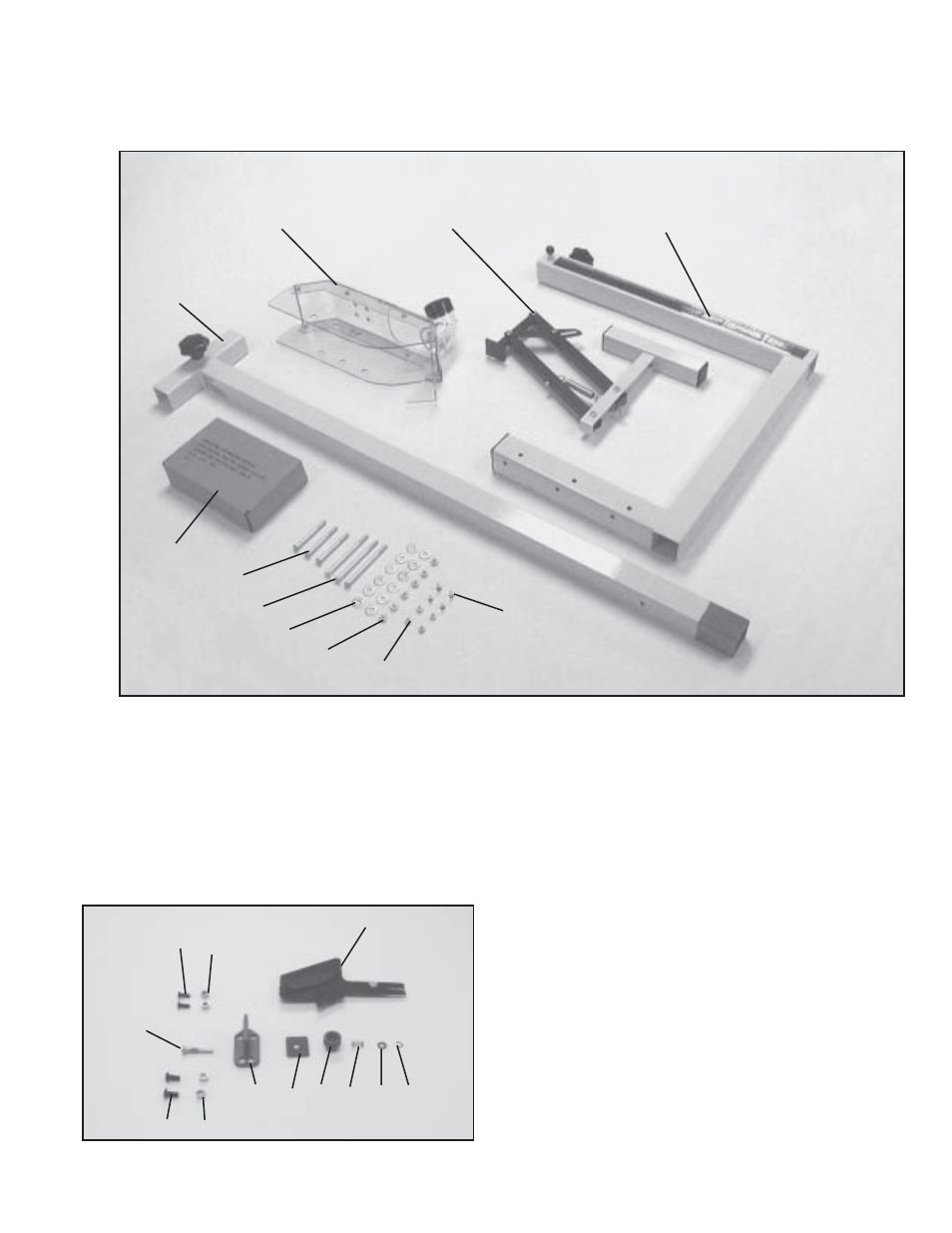

Carefully unpack the blade guard and all loose items from the carton. Figures 1 and 2 illustrate all items supplied
with the Blade Guard System.
1 - Blade Guard Basket Assembly
2 - Basket Body Assembly
3 - Guard Mounting Base
4 - T-Arm
5 - Splitter Assembly (Contents shown in Fig. 2)
6 - 1/4-20 x 2-3/4” long hex head screws (3)
7 - 1/4-20 x 3-3/4” long hex head screws (3)
8 - 1/4” flat washers (12)
9 - 1/4-20 hex nuts (6)
10 - #10-32 Lock Nut (4)
11 - #10-32 x 5/8” Flat HD Screw (4)
3
12 - Splitter
13 - 1/4-20 x 5/8” button head screws (2)
14 - 1/4” bushing (2)
15 - Stud
16 - 5/16-18 x 5/8” button screws (2)
17 - 5/16” bushings (2)
18 - Splitter mounting bracket
19 - Plate
20 - Knob
21 - Spring
22 - 1/4” flat washer
23 - E-ring
Fig. 2
Fig. 1
12
13 14
15
16 17
18 19 20 21 22 23
1 2
3
4
5
6
7
8
9
10
11
