SoundMax SM-CMD3010 - Manual (Page 9)

9

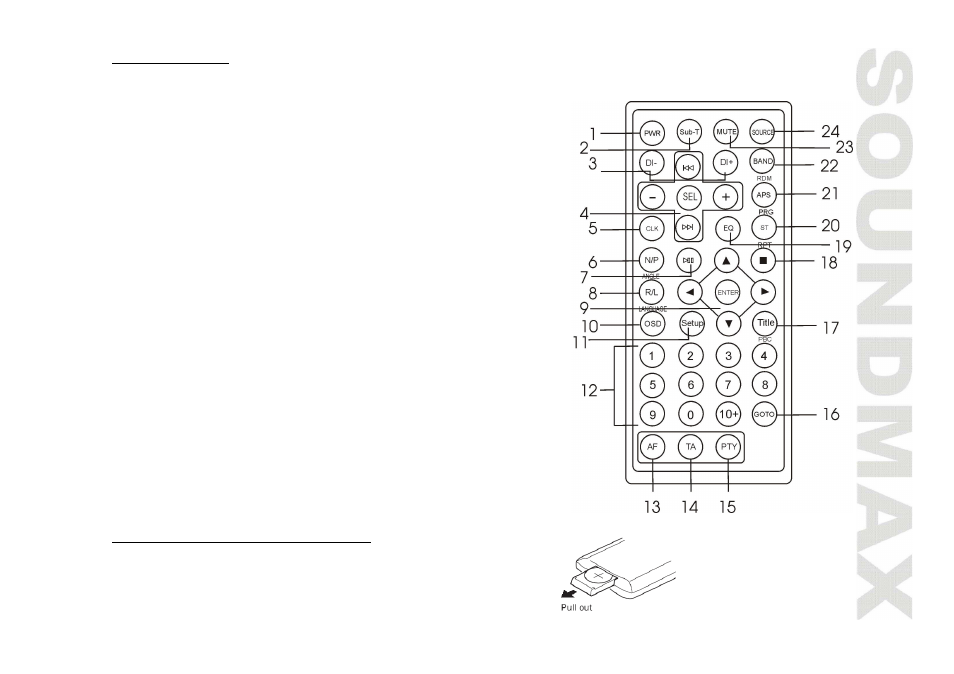

Remote control
1. PWR button
2. SUB-T button
3. DI+/- buttons (OPTION)
4. +/-/PREV/NEXT/SEL buttons
5. CLK button
6. N/P/ANGLE (option) button
7. PLAY/PAUSE button
8. R/L/LANGUAGE button
9. RIGHT/LEFT/UP/DOWN cursor buttons/ENTER button
10. OSD button
11. SETUP button
12. Number buttons
13. AF button (option)
14. TA button (option)
15. PTY button (option)
16. GOTO button
17. TITLE/PBC button
18. STOP button
19. EQ button
20. ST/RPT button
21. APS/PRG button
22. BAND/RDM button
23. MUTE button
24. SOURCE button
Loading and replacing the battery
-
Use one lithium battery (CR2025).
-
Insert the battery with + and – poles aligned properly.
