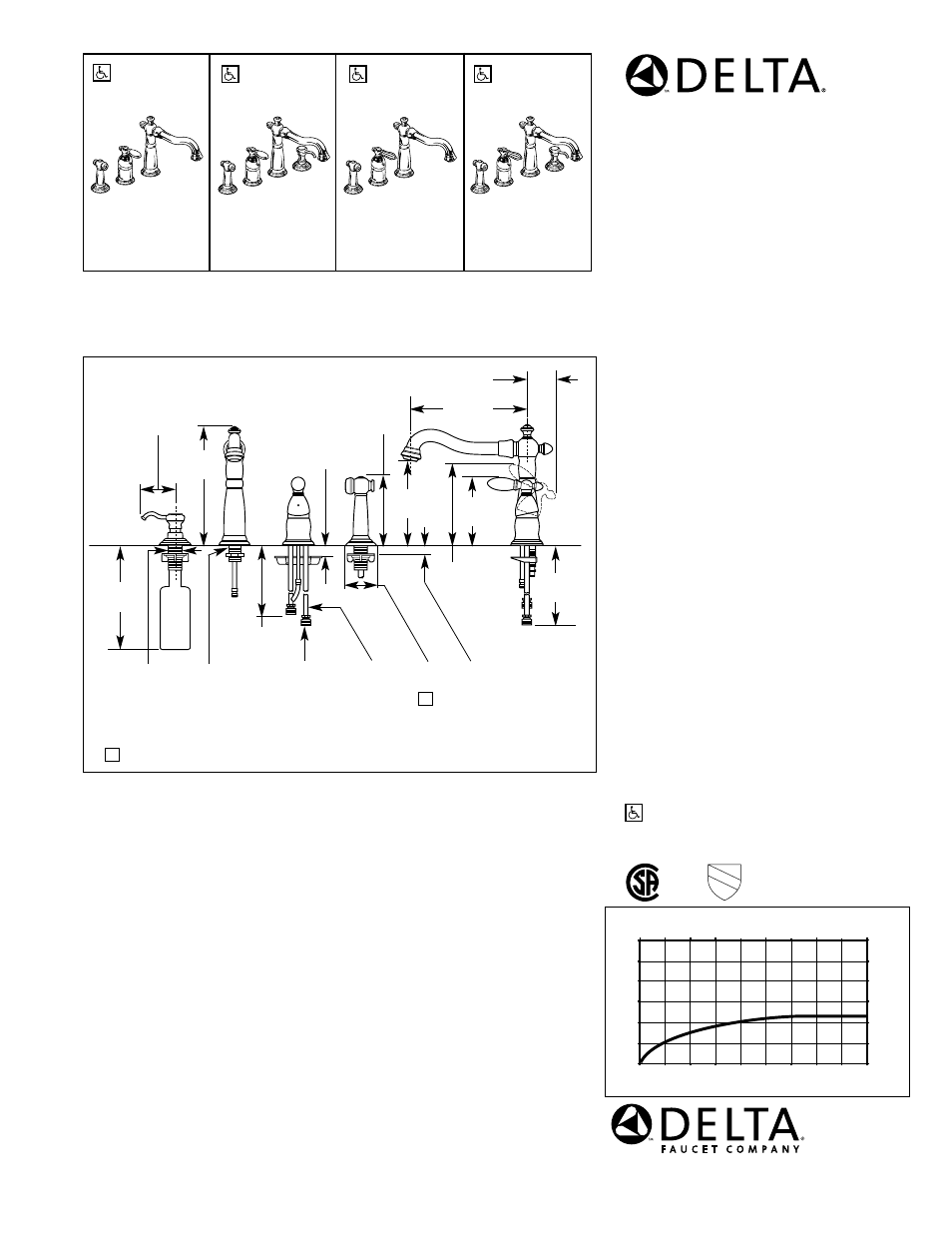

Delta 158-WF - Manual

COMPLIES WITH:
•
NSF 61
• ASME A112.18.1 / CSA B125.1
Indicates ADA compliance to
ICC/ANSI A117.1
• IAPMO Listed
• CSA Certified
KITCHEN
FAUCETS
■ Victorian ® Series
■ Single Handle Widespread Deck Mount
■ 3 and 4 Hole Sink Applications
■ Quick Snap
® Hose Installation
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
STANDARD SPECIFICATIONS:
•
Solid brass fabricated body.
• 9" (229 mm) long, spout swings 360˚.
• L ever handle. Control mechanism shall be of the
rotating stainless steel ball type with replaceable
non-metallic seats operating in stainless steel lined
sockets.
• Models 157 &158 series with porcelain lever handle.
• Control handle shall return to neutral position
when valve is turned off.
• Spray attachment has anti-siphon device as
integral part of valve body.
• Quick Snap ® hose installation.
• Vegetable sprayer with matching finish sprayhead
- 45” (1143mm) long hose.
• 3/8” O.D. straight, staggered coper tube inlets - 9
1/4” (235mm) and 10 5/8” (270mm) long with
1/2”-14 NPSM adapters.
• Standard mounting deck thickness 1 1/4" can be
extended 1" with RP37776 thick tile mounting kit.
• Recommended hole size 1 3/8” (35 mm) on 4”
(102 mm) centers.
156-WF 155-WF
DSP-K-155 Rev. B
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
157-WF
®
®
U P
C
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselectonline.com for finish options and product availability.
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2007 Masco Corporation of Indiana
4.D.8
8 1/8"
(206 mm)
1 3/8"
(35 mm)
Max.
Hole
Diameter
9 1/4"
(235 mm)
1/2"-
14 NPSM
Adapter
3/8" O.D.
Copper
Tubing
1 1/4"
(32 mm)
Max.
Deck
Thickness
1 1/4"
(32 mm)
Max.
Deck
Thickness
5 1/2"
(140 mm)
6"
(152 mm)
9"
(226 mm)
2 1/2"
(64 mm)
9"
(229 mm)
5 3/8"
(136 mm)
6 1/2"
(165 mm)
2 7/8"
(73 mm)
2 5/8"
(67 mm)
1 1/16"
(27 mm)
158-WF
10 5/8"
(270 mm)
2 5/8" (67 mm) on all bases
A
A
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
