9-Volt Battery
Battery
Housing
Installing 9-volt Battery (not Included) in
Hand-Held Remote control Unit
1. Remove battery cover on back of remote
control unit.
2. Remove and discard sensor tag inside battery
housing.
3. Attach terminal wires to the battery. Place
battery into the battery housing.
4. Replace battery cover onto remote control
unit.

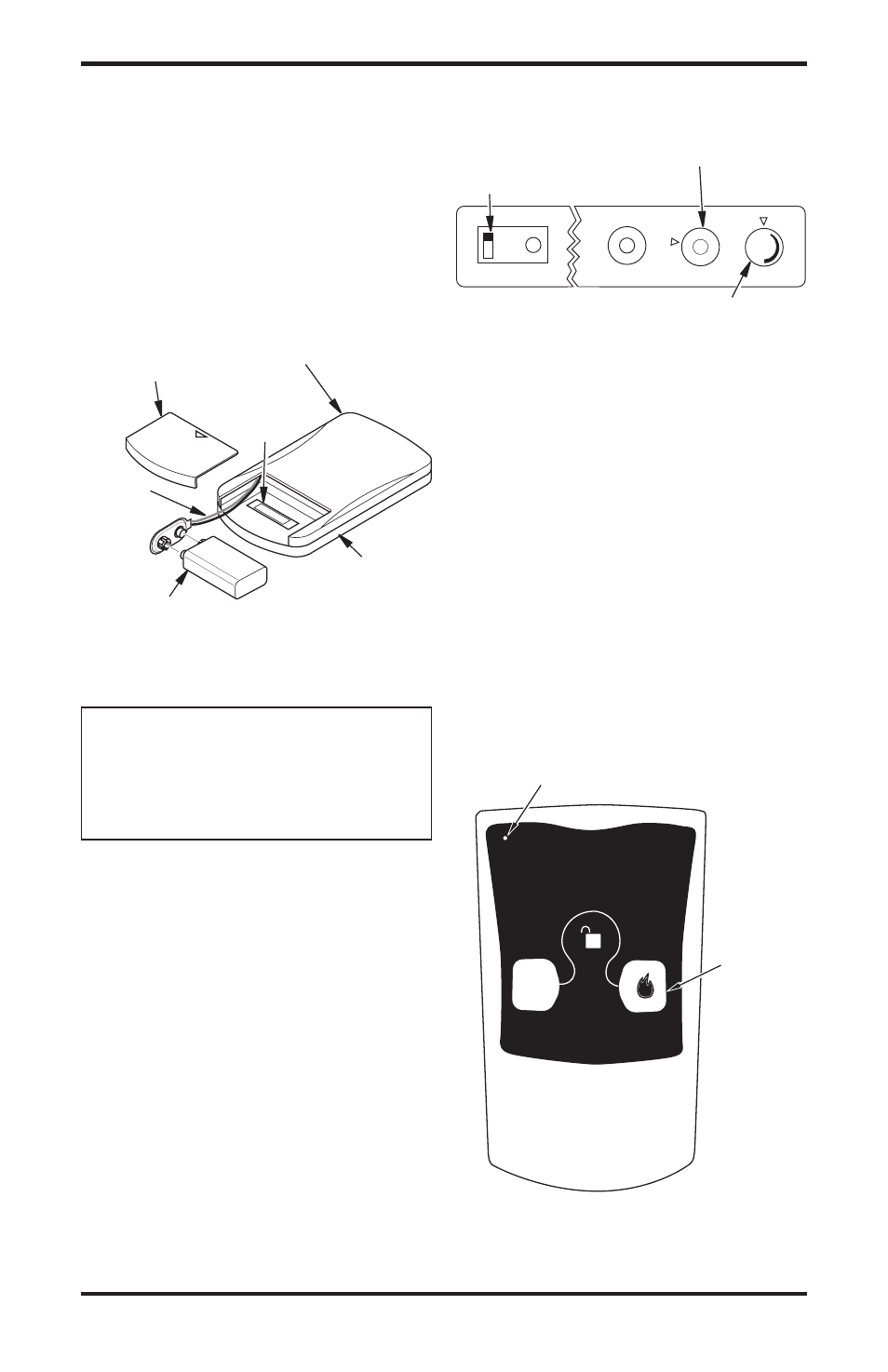

Figure 4 - Installing Battery in Hand-Held
Remote Control Unit
Battery
Cover
Terminal
Wires
Remote Control Unit
REmotE oPERAtIon
notIcE: You must light the pi-
lot before using the hand-held
remote control unit. See Light-
ing Instructions in your owner’s
manual.
1. After lighting, let pilot flame burn for about
one minute. Turn control knob to on posi-
tion. Adjust flame adjustment knob anywhere
between HI and Lo. Slide the selector switch
to the REMoTE position (see figure 5).
Note: The burner may light if hand-held
remote was on when selector switch was last
turned off. You can now turn the burner on and
off with the hand-held remote control unit.
IMPORTANT: Do not leave the selector switch
in the REMoTE or on position when the pilot
is not lit. This will drain the battery.
Figure 5 - Setting the Selector Switch,
Control Knob and Flame Adjustment
Knob (Available on Some Models) for
Hand-Held Remote Operation
OFF
P IL O
T
LO
IH
REMOTE
OFF
ON ON
Flame Adjustment Knob
(Available on Some Models)
Control Knob
Selector Switch in
REMOTE Position
(Optional Hand-Held
Remote Control)
on/oFF Series
(models HRc100 and HRc101)
Hold the control button on the hand-held remote
until burner turns on. Hold the control button again
until burner turns off (see figure 6).
to Lock
press both buttons on hand-held remote
control until light stops flashing. Hand-held
remote control is now locked. If the fire is on it
will be turned off automatically. In the locked
state, the light will not light up when any button
is pressed.
to Unlock
press both buttons together on hand-
held remote control until the light stops flashing.
The hand-held remote is now unlocked.
Figure 6 - ON/OFF Hand-Held Remote
Control Unit
Control
Button
Indicator Light
Sensor
Tag
