Bra line
In line with navel
Panty line
7.5cm apart
8

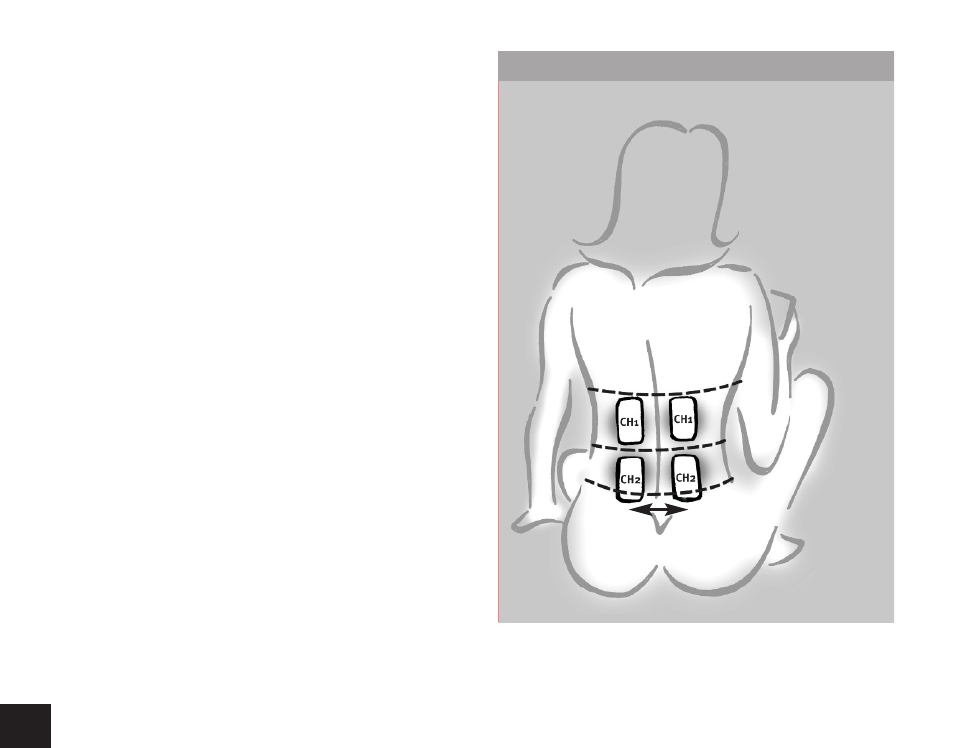

Suggested Electrode Placement Chart
The electrode pads are positioned 4-5cm
above and below the imaginary line
drawn, as seen in the diagram. This is in
line with the navel (see figure 1).
Place pads 7.5cm apart on either side of
the spine. All 4 pads should be used
during labour.
Reference: Cluett E. (1994) SRN RM ADM PGCEA.
Analgesia in Labour: A review of the TENS method.
Professional Care of Mother and Child.
Mar;4 (2): 50-2.
Figure 1
