Desa BRICK LINER KIT HFL300 - Manual (Page 3)

www.desatech.com 116466-01A 3

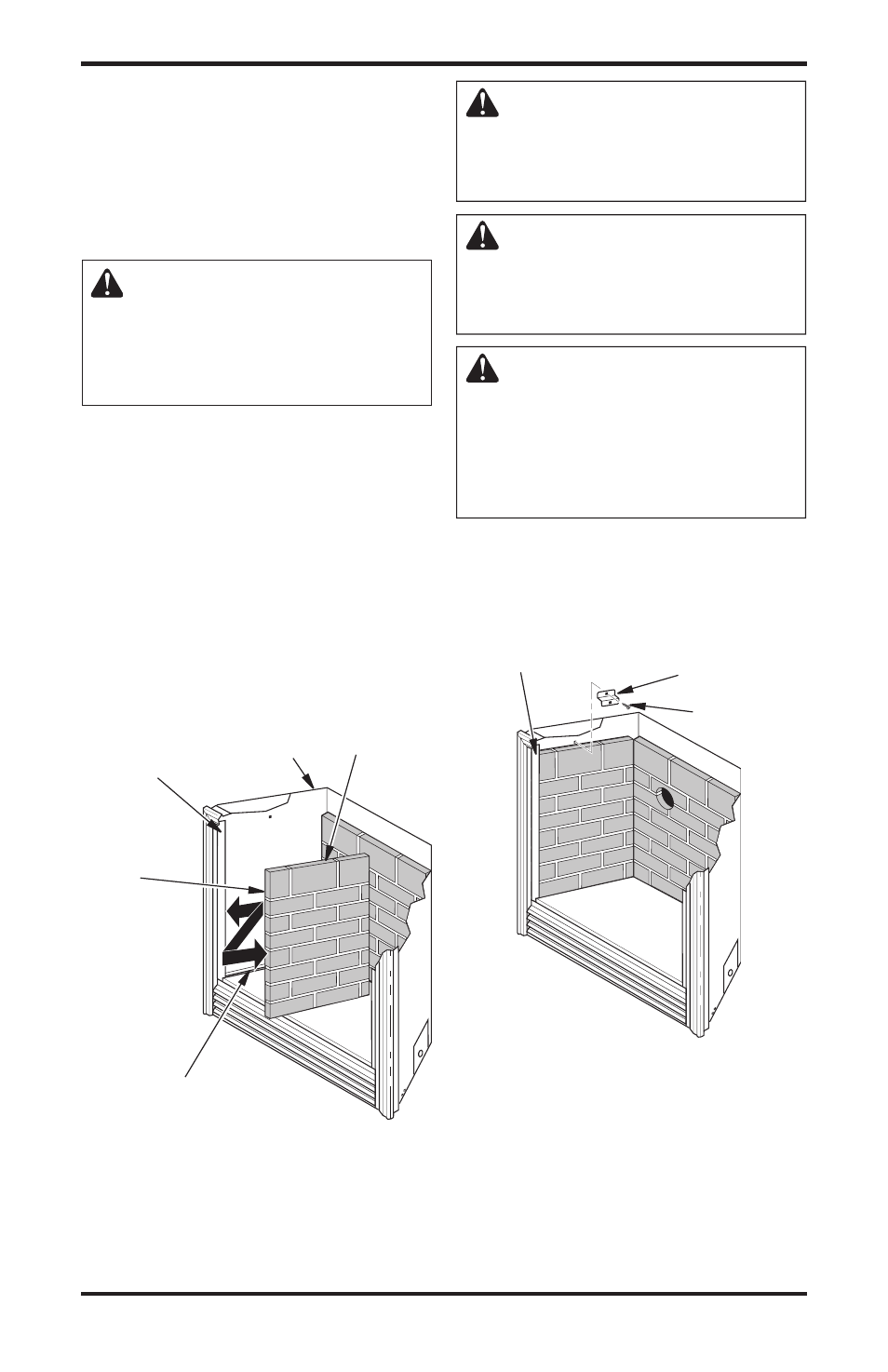

Figure 4 - Placing Side Firebrick Panel
Behind Retaining Edge
Liner Flange
Larger Brick
at Top of
Panel
Side
Firebrick
Panel
Side Wall
Retaining Edge
4. Slide one side firebrick panel behind the
retaining edge of fireplace. Standard brick
panel has larger bricks at the top while the Her-
ringbone panel has smaller bricks at the top.
Gently press the firebrick panel back against
the side wall (see Figure 4). The bottom edge
of the firebrick panel will rest on liner flange
and against back panel.
CAUTION: Always handle
firebrick panels with two hands.
Do not force firebrick panels into
place. Excessive force will break
firebrick panels.
5. Secure side firebrick panel to side wall of
fireplace with one retainer bracket and one
screw (see Figure 5).
Note: If there is a screw in the fireplace side
walls where you are to install the retaining
bracket, remove screw.
6. Repeat steps 4 and 5 to install other side of
firebrick panel.
7. Put log base assembly back into fireplace.
Secure log base assembly with the two screws
removed in step 2 (see Figure 2, page 2).
WARNING: A qualified ser-
vice person must connect and
disconnect fireplace to gas sup-
ply. Follow all local codes.
WARNING: Test all gas piping
and connections for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an
open flame to check for a leak.
Apply a noncorrosive leak detec-
tion fluid to all joints. Bubbles
forming show a leak. Correct all
leaks at once.
8. Replace logs. Make sure logs are put in their
proper position. See Installing Logs in the
Fireplace Ownerʼs Manual.
9. Replace screen (see Figure 1, page 1).
Figure 5 - Securing Side Firebrick Panel
to Side Wall of Fireplace
Retaining
Edge
Screw
Retainer
Bracket
