FUSES
Totally Integrated Power Module (TIPM)
The TIPM is located in the engine compartment near the
air cleaner assembly. This center contains cartridge fuses
and mini fuses. A label that identifies each component
may be printed on the inside of the cover. Refer to the
graphic below for FUSES/TIPM location.
Cavity
Cartridge
Fuse
Mini Fuse Description
1
40 Amp
Green
—
Power Top Mod-
ule – If Equipped
2 —
20 Amp
Yellow
AWD Module
3 — 10 Amp Red
Battery Feed –
Center High
Mounted Stop
Light (CHMSL)/
Brake Switch
4 — 10 Amp Red
Battery Feed –
Ignition Switch
5 —
20 Amp
Yellow
Trailer Tow –
If Equipped

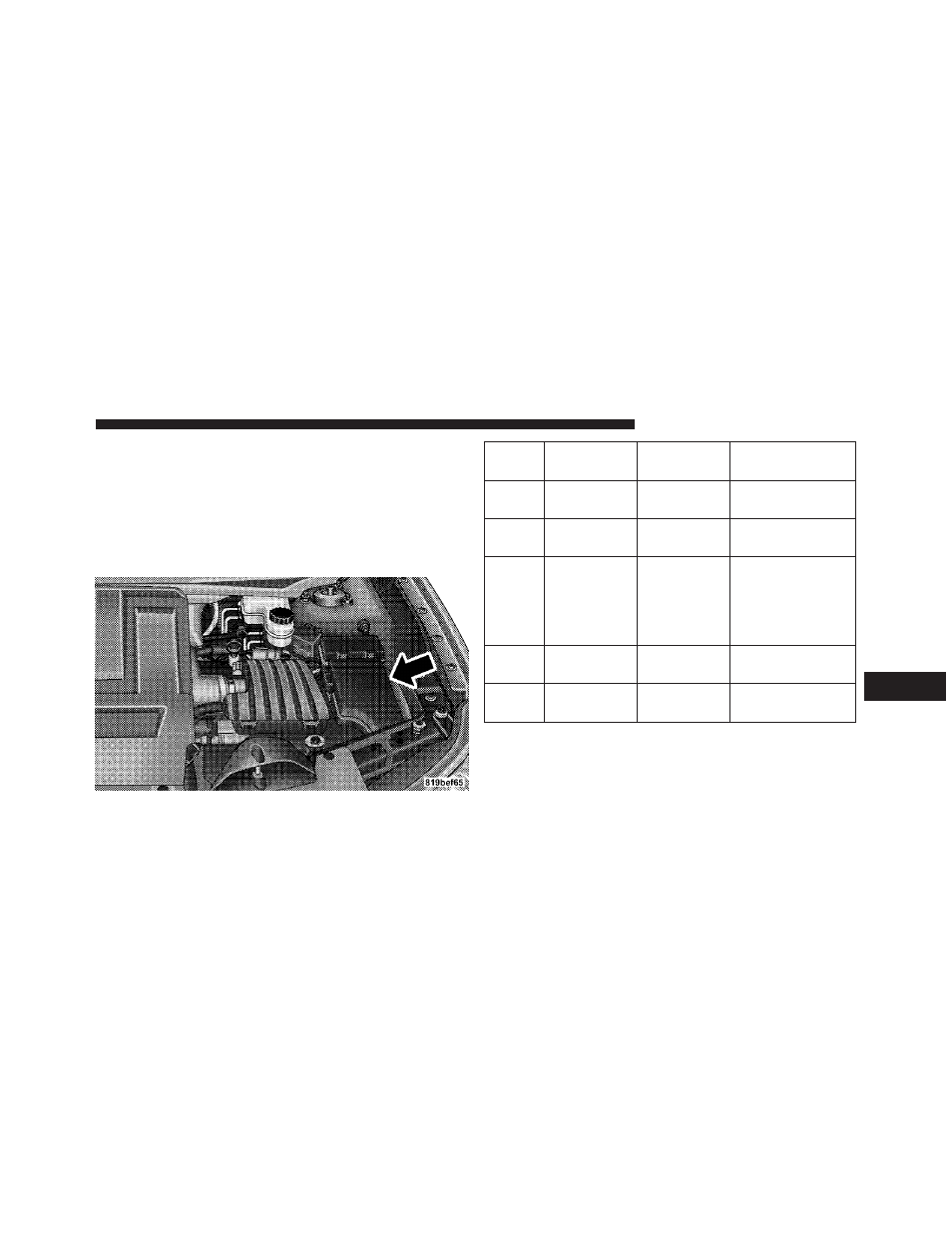

Totally Integrated Power Module (TIPM)
7
MAINTAINING YOUR VEHICLE 383
