Cav-

ity

Cartridge

Fuse

Mini-

Fuse

Description

J1

—

—

J2

30 Amp
Pink

Transfer Case, Pwr Lift-
gate Module

J3

—

—

Cav-

ity

Cartridge

Fuse

Mini-

Fuse

Description

J4

25 Amp
Natural

Driver Door Node

J5

25 Amp
Natural

Passenger Door Node

J6

40 Amp
Green

Antilock Brakes Pump,
Stability Control Sys-
tem

J7

30 Amp
Pink

Antilock Brakes Valve,
Stability Control Sys-
tem

J8

40 Amp
Green

Power Seat – If
Equipped

J9

—

—

J10

—

—

J11

30 Amp
Pink

Anti–Theft Module
Lock-Unlock

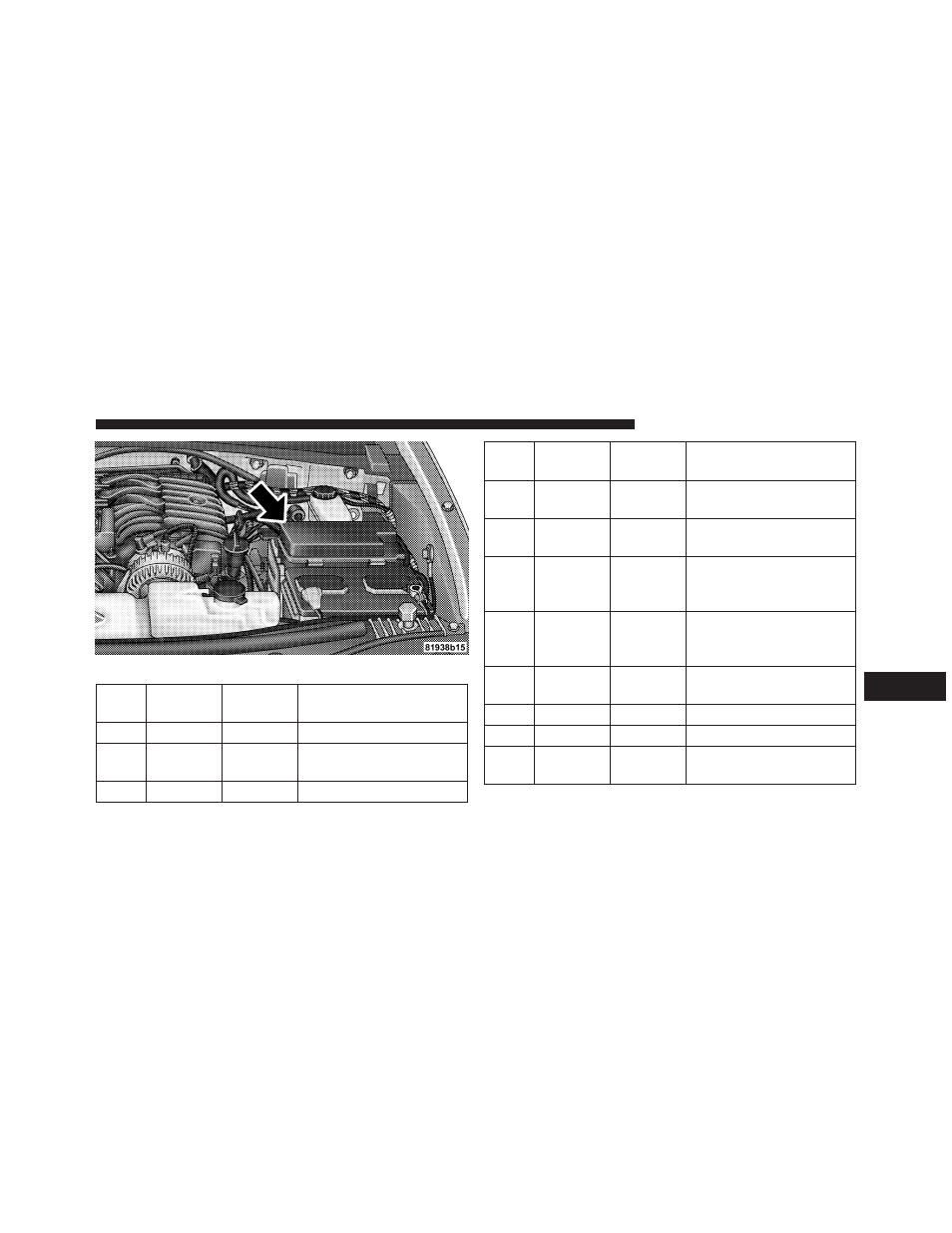

Totally Integrated Power Module (TIPM)

7

MAINTAINING YOUR VEHICLE

425
