LO W - P R O F I L E T V M O U N T I Q U I C K S E T U P G U I D E I DX - T V M 1 1 2
3-year limited warranty
Visit www.dynexproducts.com for details.
We’re here for you
www.dynexproducts.com
For customer service, call:
800-305-2204 (U.S./Canada markets)
01 800-926-3020 (Mexico market)
© 2010 BBY Solutions, Inc., All Rights Reserved.
Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue
South, Richfield, MN USA 55423-3645
Best Buy Imports, S. de R.L. de C.V. Av. Santa Fe 485, Segundo
Piso, Colonia Cruz Manca, Programa Parcial de Desarrollo
Santa Fe, Delegación Cuajimalpa, Distrito Federal, México
05349
© 2010 Best Buy UK Distributions Limited. All rights reserved.
Distributed by Best Buy Europe Distributions Limited. 1 Portal
Way, London W3 6RS
DYNEX is a trademark of BBY Solutions, Inc. Registered in
some countries. All other products and brand names are
trademarks of their respective owners.
6907-002010 <00>
ENGLISH 10-0164

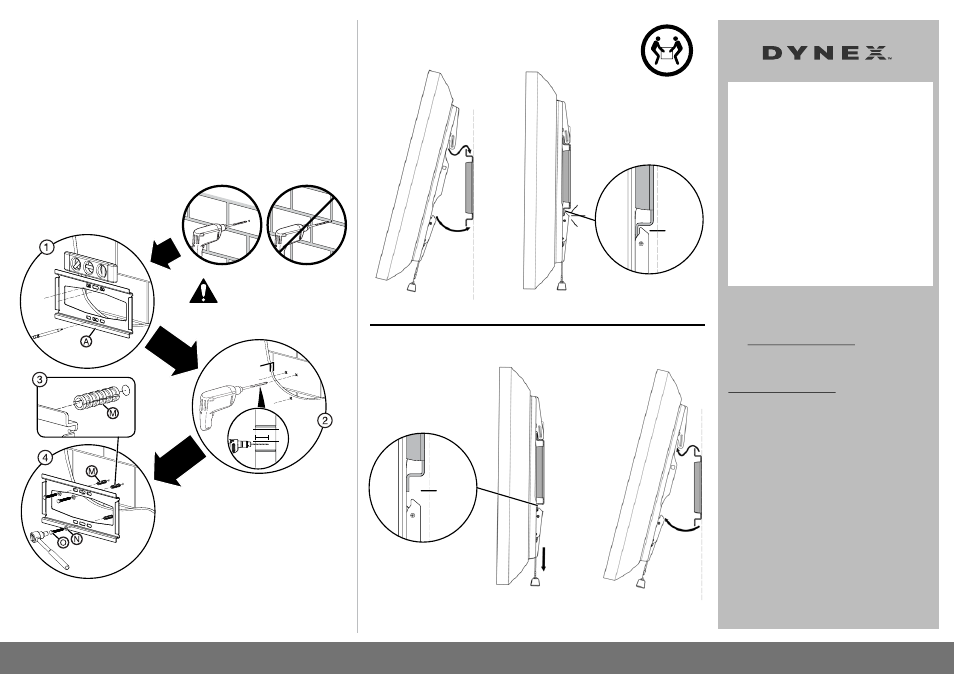

Option 2: Installing to a solid concrete or concrete block wall
1 Level the wall plate (A) and mark the hole locations.
2 Drill the pilot holes as illustrated.
3 Insert the concrete wall anchors (M) into the pilot holes and make sure
that the anchors are seated flush with the surface.
4 Align the wall plate (A) with the wall anchors, then place the washers (N)
over the holes. Insert the lag bolts (O) through the washers, then tighten
the lag bolts only until the washers are pulled firmly against the wall plate.
DO NOT over-tighten the lag bolts (O).
CAUTION: Avoid potential injuries or property damage!
Any material covering the wall must not exceed 5/8 in. (16 mm).
3 Mount the TV to the wall
Slide the upper notches on the TV bracket over
the upper flanges on the wall bracket.
4 Remove the TV from the wall
HEAVY! You will need
assistance with this step.
CAUTION: To prevent property
damage or personal injury, never
drill into mortar between blocks.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CAUTION: Do not use this product for any purpose not explicitly
specified by Dynex. Improper installation may cause property
damage or personal injury. If you do not understand these
directions, or have doubts about the safety of the installation,
contact Customer Service or call a qualified contractor. Dynex is
not responsible for damage or injury caused by incorrect
installation or use.
The weight of your TV must not exceed 50 lb (22.7 kg). The wall
must be capable of supporting five times the weight of the TV
and wall mount combined.
This product contains small items that could be a choking hazard
if swallowed. Keep these items away from young children!
5/8 in.
(<16 mm)**
2.5 in.
(63.5 mm)*
*Drill the pilot hole to a depth of 2.5 in. (63.5 mm)
**Maximum thickness of any material covering
the stud or concrete surface.
Latched
Unlatched
