www.desatech.com 119304-01A 1
INSTALLATION
Continued
INSTALLING LOGS
WARNING: Failure to posi-
tion the parts in accordance
with these diagrams or failure
to use only parts specifically
approved with this heater may
result in property damage or
personal injury.
CAUTION: Do not remove
the data plates attached to the
heater base assembly. The data
plates contain important safety
and warranty information.
It is very important to install these logs exactly
as instructed. Do not modify logs. Only use logs
supplied with heater.

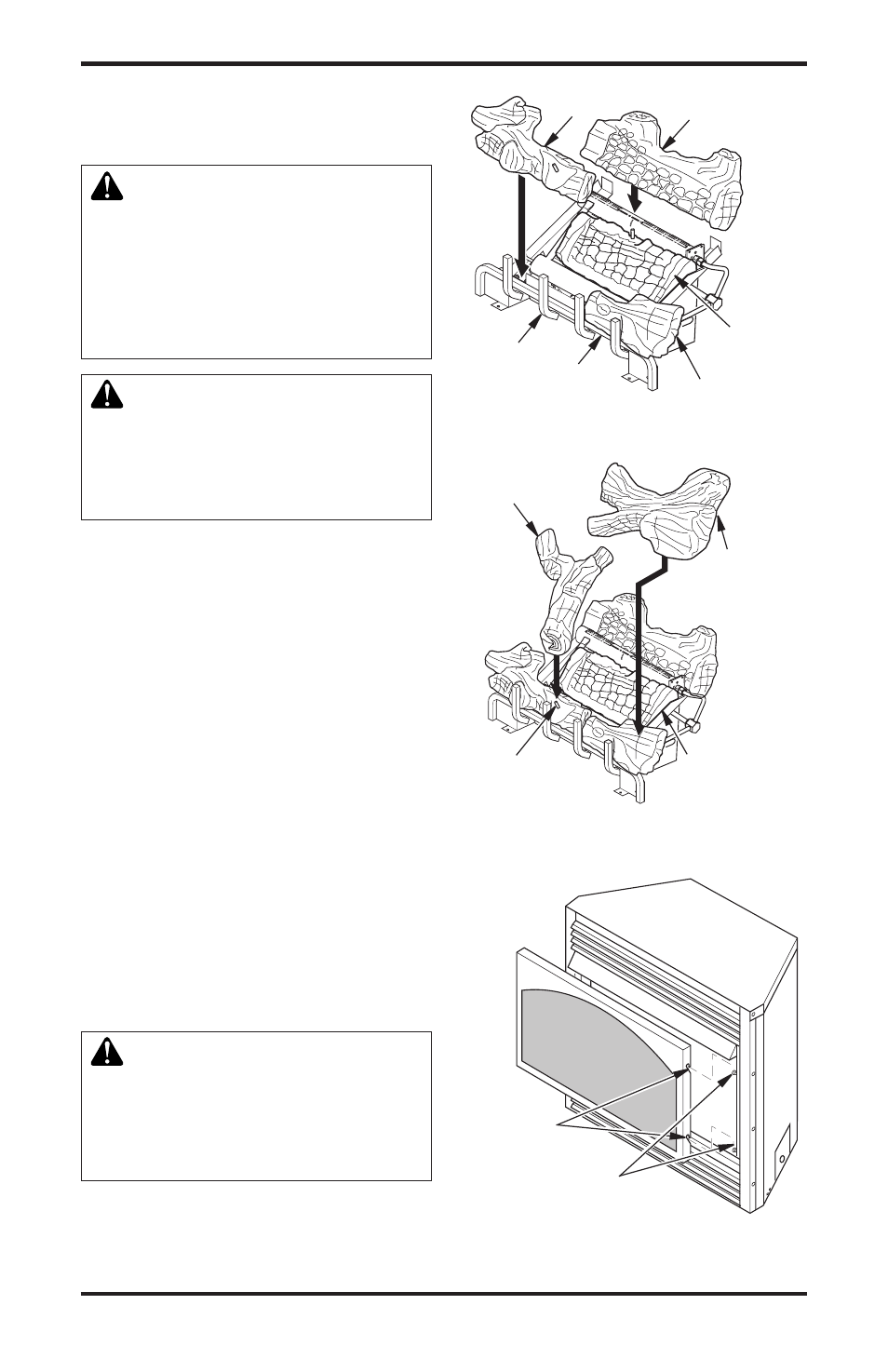

1. Place bottom log in center of the base assem-
bly as shown in Figure 24.
2. Rest rear log in back corner sections of base
assembly as shown in Figure 24. Make sure log
is completely vertical and not leaning in toward
burner where the flame will touch the log.
3. Position front right log against right side of
grate prongs (see Figure 24).
4. Position front left log against left side of grate
prongs (see Figure 24).
5. Place middle right log over front right and bot-
tom logs as shown in Figure 25. Be sure hole in
middle right log seats over pin in bottom log.
6. Place middle left log over front left and bot-
tom logs as show in Figure 25. Be sure hole in
middle left log seats over pin in front left log.
7. Install fireplace screen by slipping notches
of fireplace screen over screws on front of
fireplace (see Figure 26).
WARNING: You must operate
this fireplace with the fireplace
screen in place. Make sure fire-
place screen is in place before
running fireplace.
Figure 26 - Installing Fireplace Screen
Notches
Screws for
Mounting Screen
Figure 24 - Installing Bottom Logs
Figure 25 - Installing Top Logs
Rear Log
Grate
Prongs
Bottom
Log
Base
Assembly
Front Right
Log
Front
Left Log
Middle
Right Log
Middle Left Log
Bottom
Log Pin on Front
Left Log
