Installation
(for qualified installers only)
45
© Travis Industries 4140922 100-01410

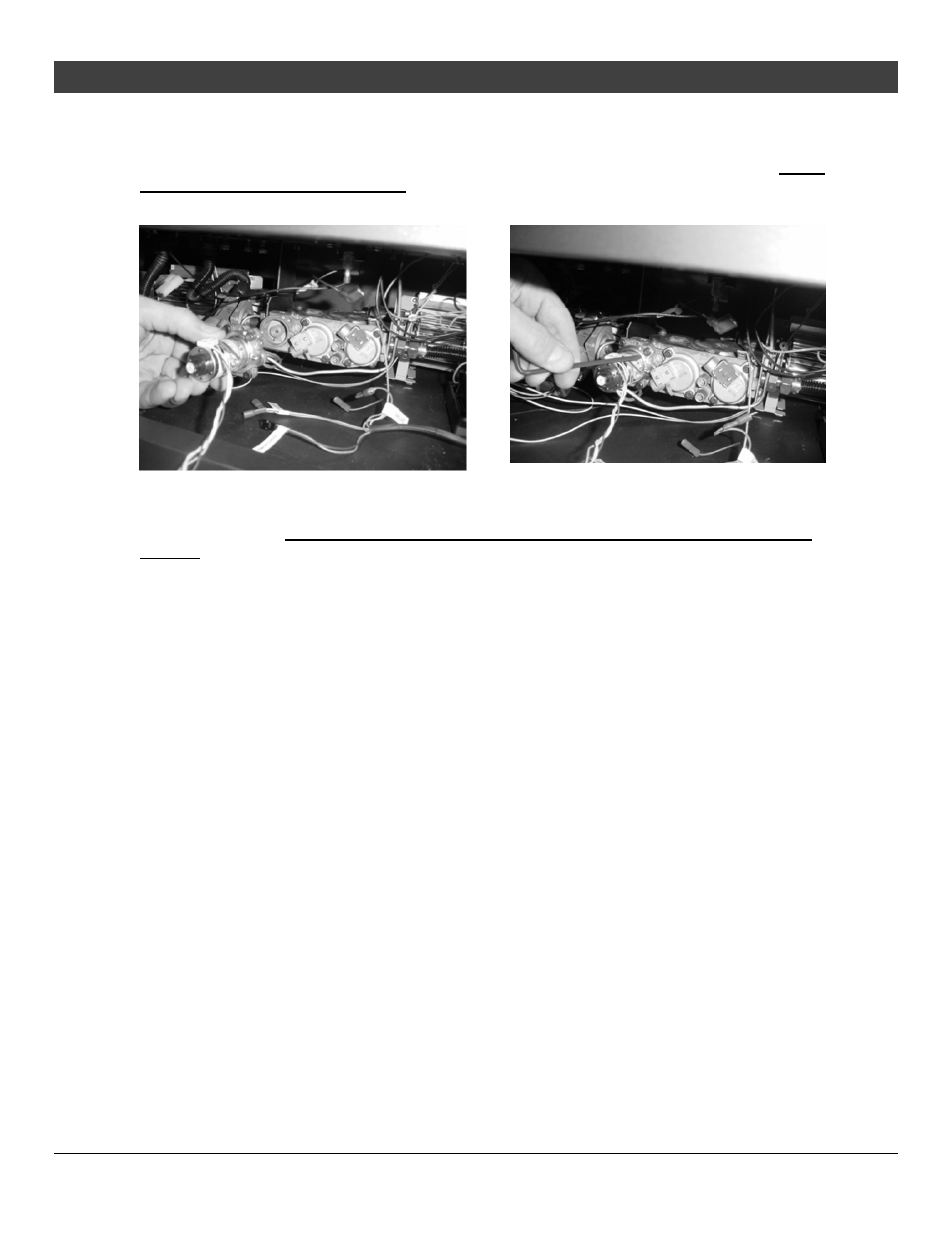

7. The stepper motor (adjustable regulator) has an installation sheet included with it – make sure to
follow all of the directions. Place the stepper motor on the gas control valve (see Figure 1) – MAKE
SURE IT IS CORRECTLY ORIENTED. Secure using the screws included with the motor (see Figure
2) – tighten to 25 Lb-inches. Leak test this area after installation to verify proper installation.
Figure 1
Figure 2
8. Replace the burner. Push the burner to the right side to insure the manifold inserts over the
orifices.
9. Replace the remaining firebox components.
10. Replace the glass.
11. Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly leak-
test all gas connections and the gas control valve.
