Fuses, Fuel shut off valve, Controls – Dixon SZ4619 CA User Manual
Page 23
CONTROLS
23

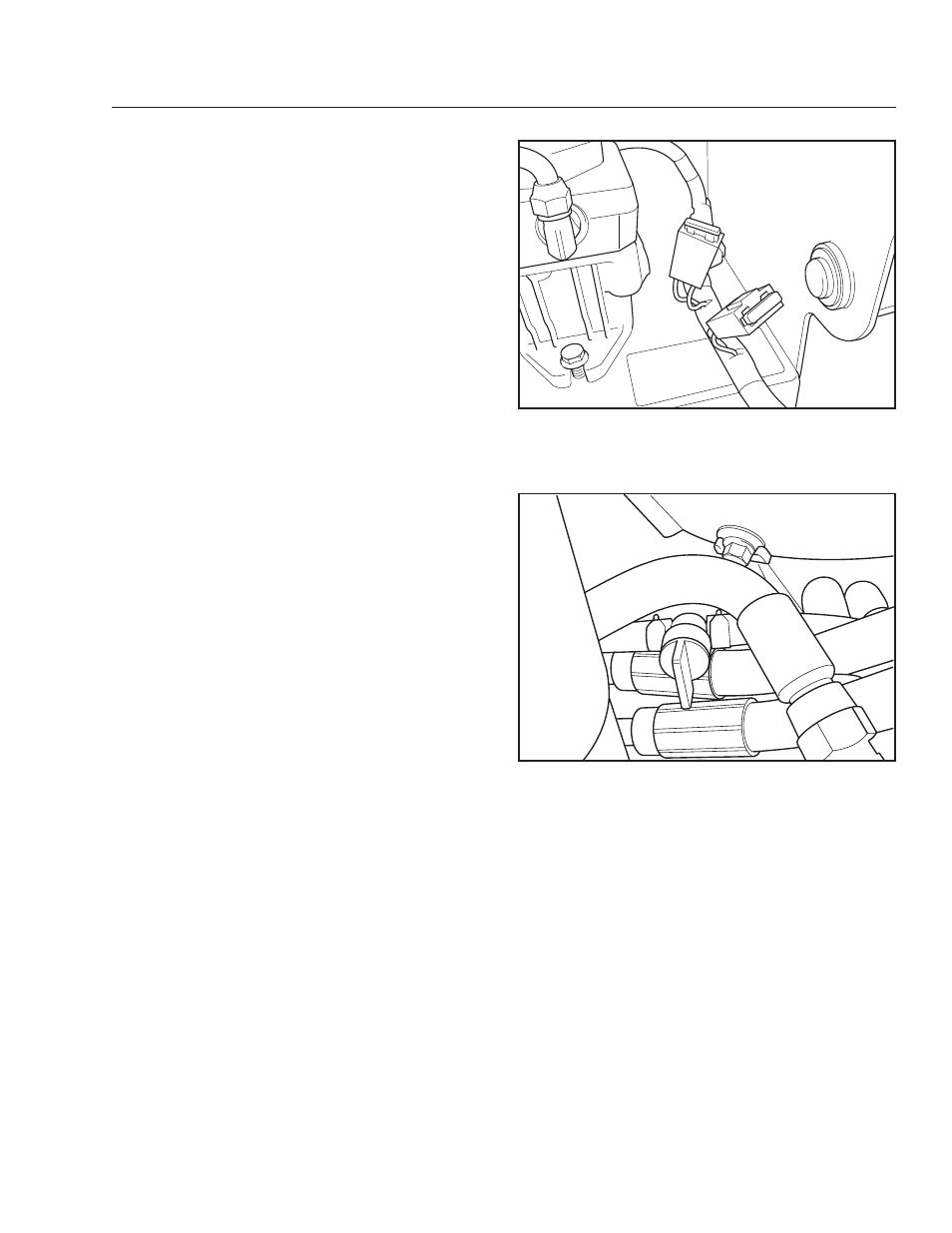

Fuses
Fuses are located on the left hand side of the
machine. They are accessed by tilting the seat
forward. They are flat pin fuses of the same type used
in automobiles.
There are two fuses with ratings and functions:
20 Amp Primary fuse
7.5 Amp Mower deck coupling
Fuel Shut Off Valve
The fuel shut off valve is located at the left rear of the
seat. The valve is off when the handle tab is turned
perpendicular to the fuel line.
8011-419
Fuel shut off valve in the CLOSED position
8011-420
Fuses
