Connection options (active 2.2) – Amina ALF80 User Manual
Page 11
Multi-channel
Amplifier
L
R
L
R
CH3
CH4
CH1
CH2
Connection Options (Active 2.2)
09

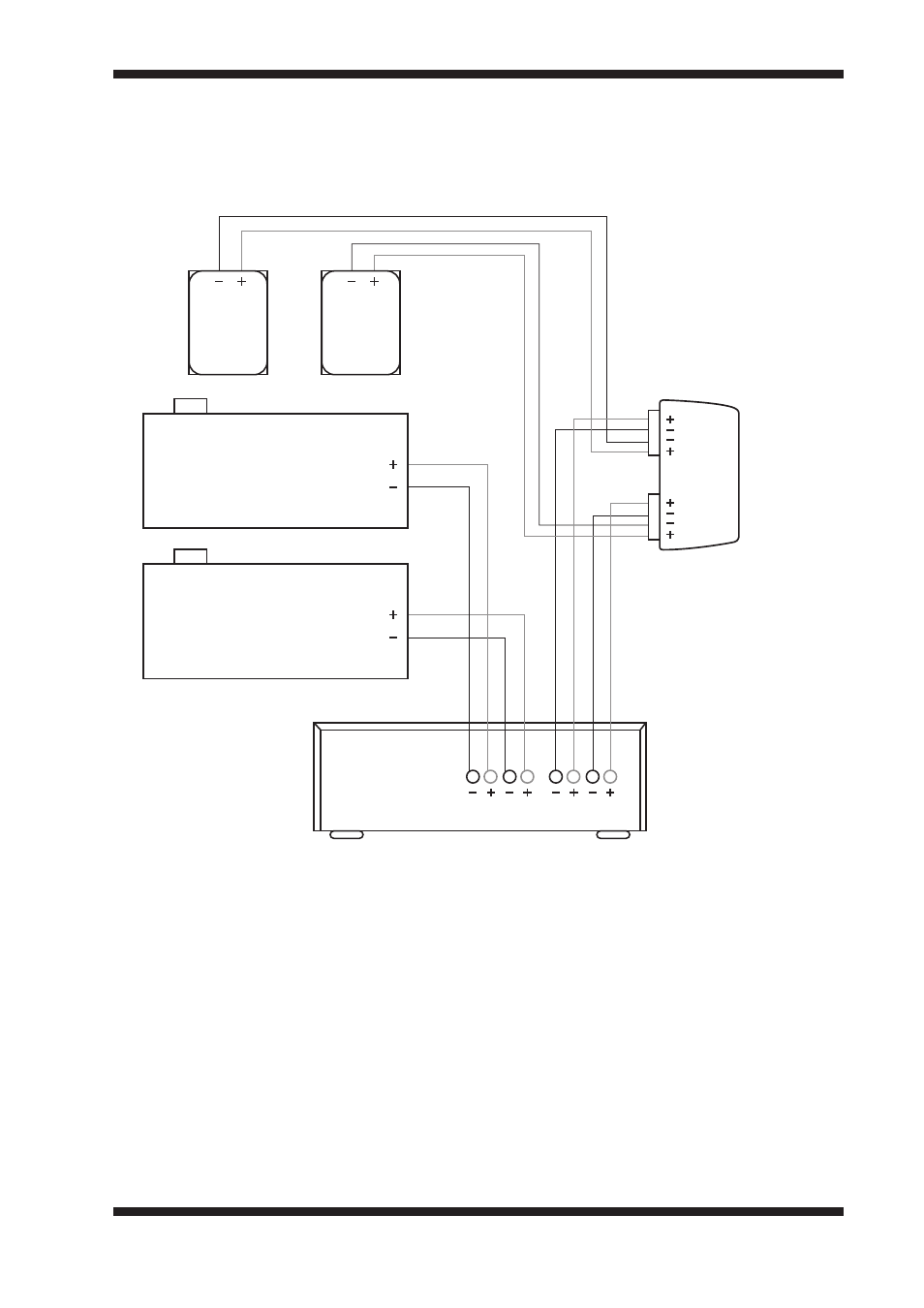

Active Stereo 2. 2: AIW550i pair + 2x ALF80
For systems using a pair of AIW550i speakers in rooms larger than 75m
2
two ALF80’s will be necessary.
In this scenario the amplifier will need four independent channels.
CH 1
L
R
CH 2
APU550
ALF80
ALF80
AIW550i
AIW550i
