Connecting to a TV Set
Connections
-9-
Notes:

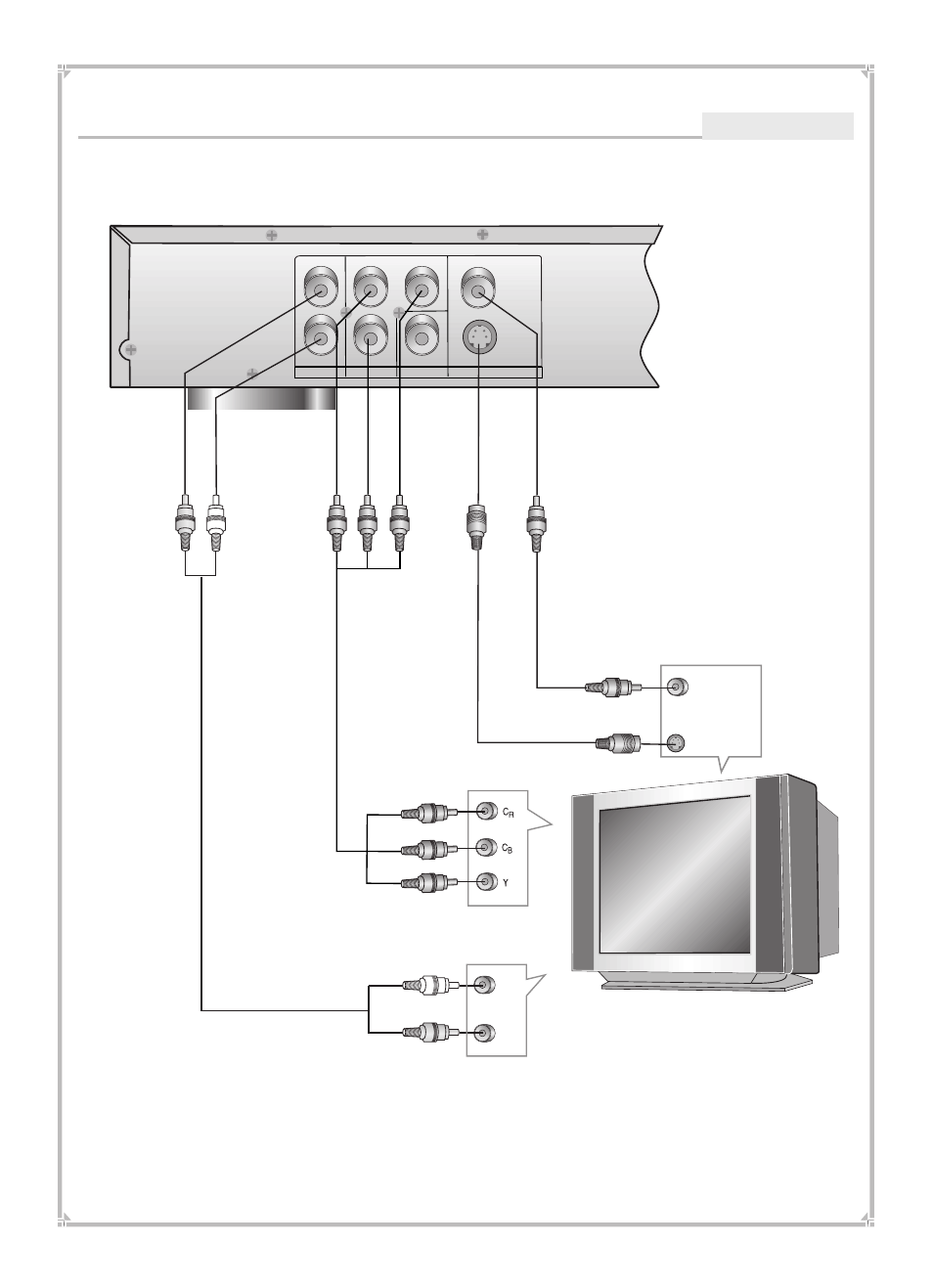

There are three ways of connecting the player's AV output to the TV set:
1. S-video cable and left/right audio cable [set the (Video Type) to (S-Video)].(See page 16)
2. Composite video cable and left/right audio cable.
3. Component video cable and left/right audio cable [set the (Video Type) to (YCbCr)].
AUDIO IN
L
R
VIDEO IN
YELLOW
WHITE
RED
VIDEO IN
VIDEO
S-VIDEO
Component video
Composite video
