VC-300D Digital Bargraph Antenna Tuner
Owner's Manual
2
TRANSMITTER IN.............. SO-239 connector
BALANCE LINE .................. Dual Banana jack
WIRE..................................... Banana jack
OTHER
Frequency Coverage .............1.8-30 MHz
Power Maximum ..................150 Watts Continuous; 300 Watts PEP
Dimensions...........................3.5" H x 10.2" W x 9.4" D
Weight ................................... 3.7 lbs.
CONTOLS / CONNECTORS

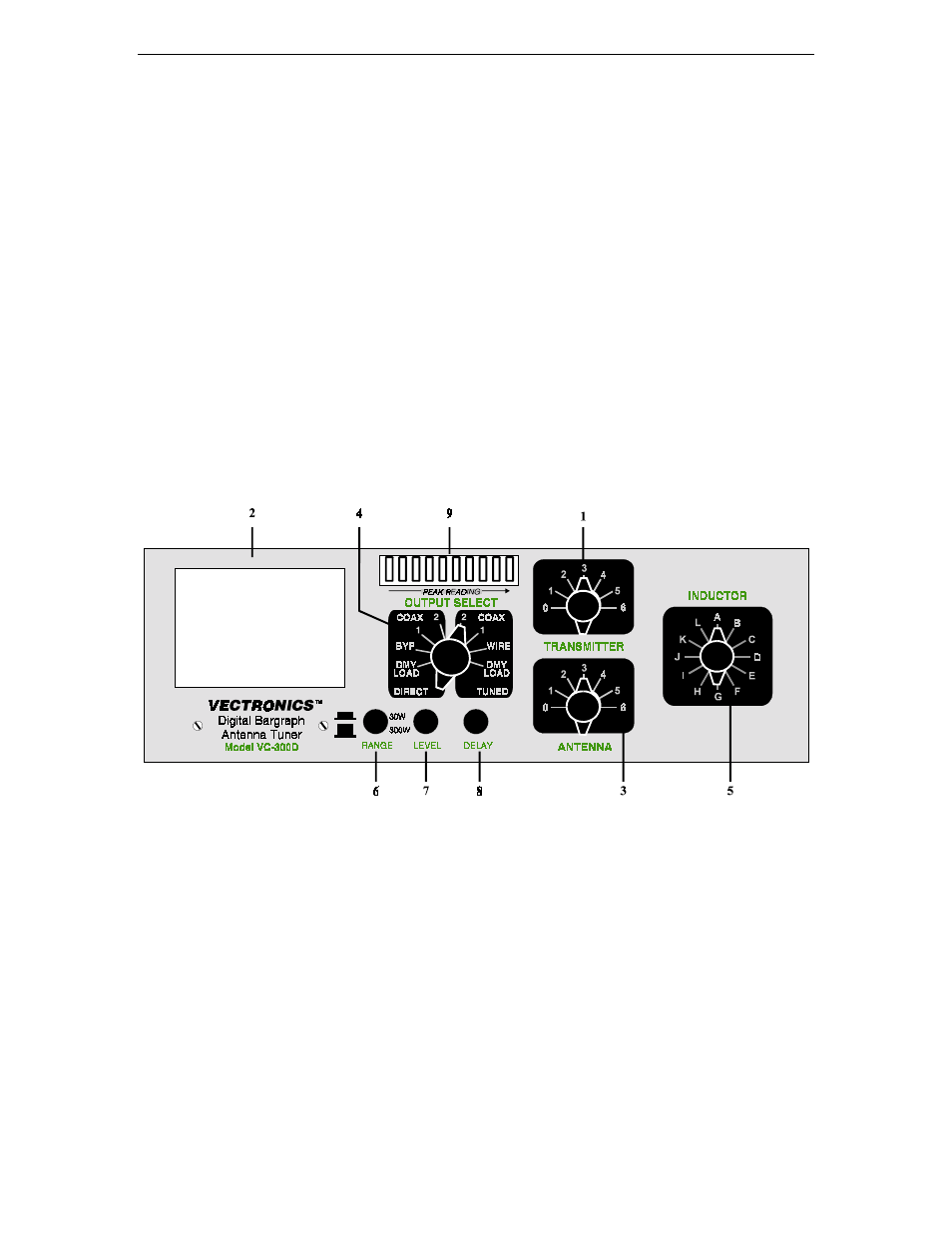

FRONT PANEL FUNCTIONS
1. TRANSMITTER
Continuously adjustable input capacitor
2. POWER / SWR METER
Dual needle meter displays FOWARD and REFLECTED Power in Watts.
The SWR in measured where the two needles intersect on the red scale.
3. ANTENNA
Continuously adjustable output capacitor.
4. OUTPUT
SELECT
Eight-position rotary switch an output coaxial connector.
