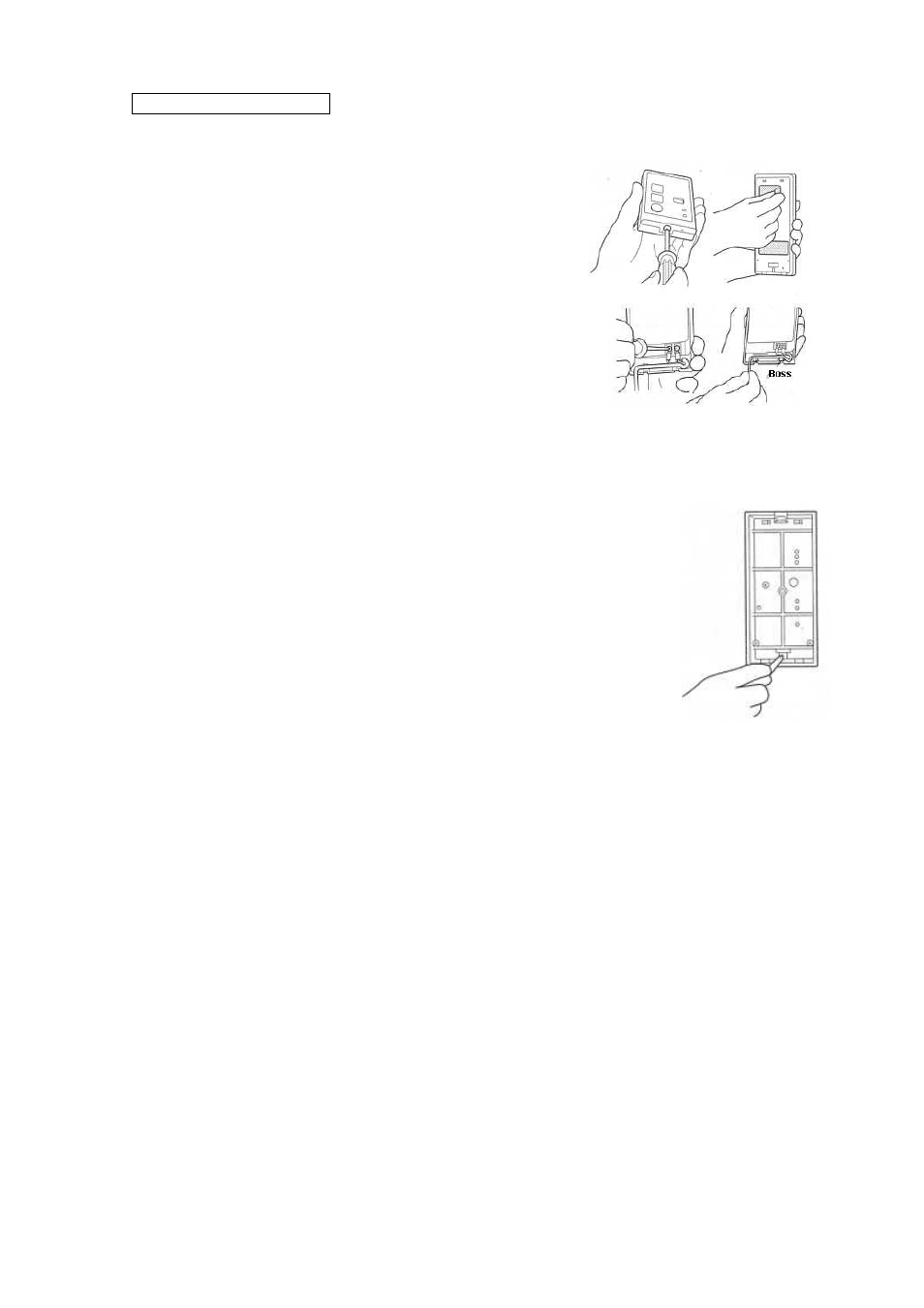

For Installation on the wall
1. For installation with the double-sided adhesive tape (2 pcs.) included in the carton box
(1) Remove the screw on the Remote Controller Cover,
and remove it from the base.
(2) Attach the adhesive double-coated tape at the back
of the base first, and then affix the base to the wall.
(3) After the Y-shaped terminal of the Remote
Controller Cord is screwed on to the terminal on the
circuit of Remote Controller, then put the cord
around the boss as shown in the figure.
(4) Return the Remote Controller Cover to the base.
2. For installation with the wood screws (2 pcs.) included in the carton box
(1) Remove the screw for the Remote Controller Cover,
and remove it from the base.
(2) Fix the base at the desired position by the attached
screws (2 pcs.).
(3) After the Y-shaped terminal of the Remote
Controller Cord is screwed on to the terminal on the
circuit of Remote Controller, then put the cord
around the boss as shown in the figure.
(4) Retrun the Remote Controller Cover to the base.
