18

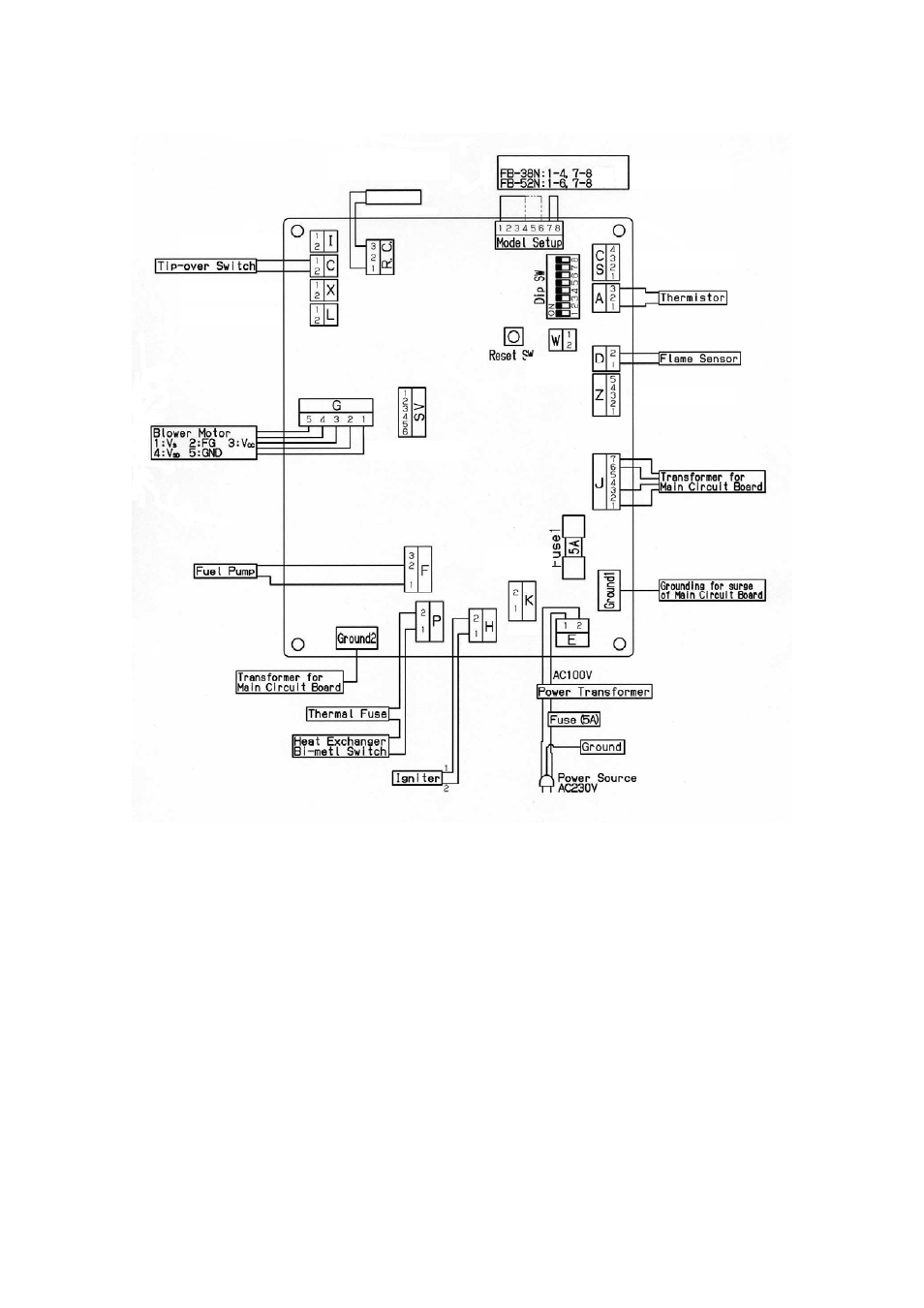

WIRING DIAGRAM
B: Blue
O: Orange
Y: Yellow
W: White
R: Red
K: Black
Open Terminal
Open Terminal
Open Terminal
Open Terminal
Open Terminal
Open
Terminal
Open Terminal
Open
Termin
al
Terminal Block for
Remote Contorl
Model Selecting
Jumper
