Model FSL-F-42 Model FSL-F-50 Model FSL-F-65
For display sizes up to and including 42˝
diagonal For display sizes up to and including 50˝
diagonal For display sizes up to and including 65˝
diagonal
Minimum required interior height of
cabinet: 27
13 /
16
˝. Minimum required
interior width of cabinet is the width of
your display and speakers plus 2˝.
Minimum required interior height
of cabinet: 31
3 /
4
˝. Minimum required
interior width of cabinet is the width of
your display and speakers plus 2˝.
Minimum required interior height
of cabinet: 37
1 /
4
˝. Minimum required
interior width of cabinet is the width of
your display and speakers plus 2˝.
Maximum weight capacity: 210lbs Maximum weight capacity: 210lbs Maximum weight capacity: 210lbs
Universal mounting bracket is included Universal mounting bracket is included Universal mounting bracket is included;
however, a display specific bracket and
Draper’s SMS WH T2 Flatscreen Mount
may be required.
All models:
Operating noise: 63 dB (not installed in furniture) 24VDC Motor
Power Surge Line Overload Protection for display Stops automatically if motor current is overloaded
Standard controls: RF remote control, contact closure, and
12V trigger (standard).
Optional controls: RS232, and IR remote control are
optionally available.
Automatically switches to “creep” mode as it approaches “up”
and “down” limits, which prevents “jarring” of display during
operation.
Limits can be adjusted to stop at any intermediate point for
the “show“ position.

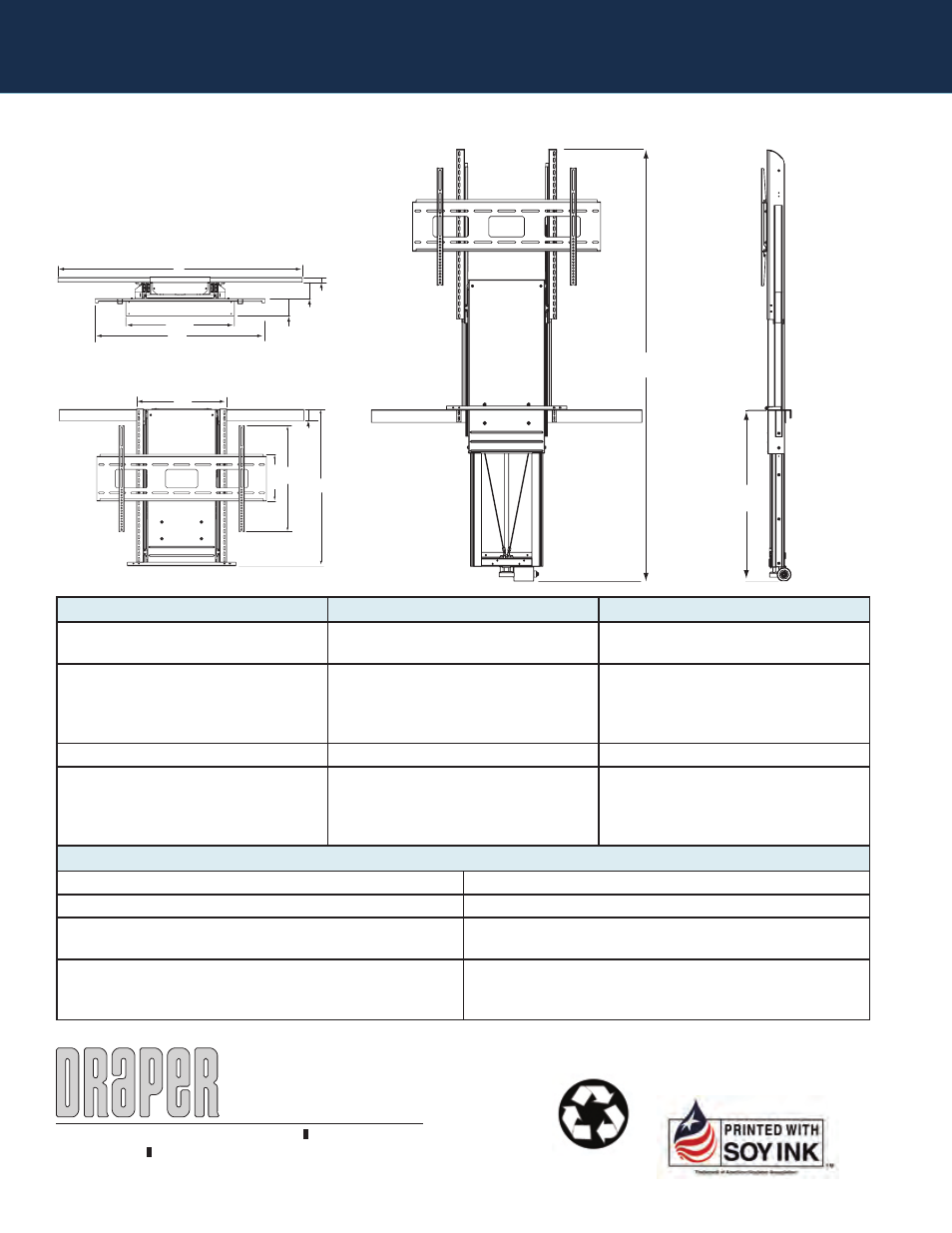

Technical Data
Top View
Front View (Lowered)
Front View (Extended) Side View (Extended)
