Section 8
FAN MODIFICATION

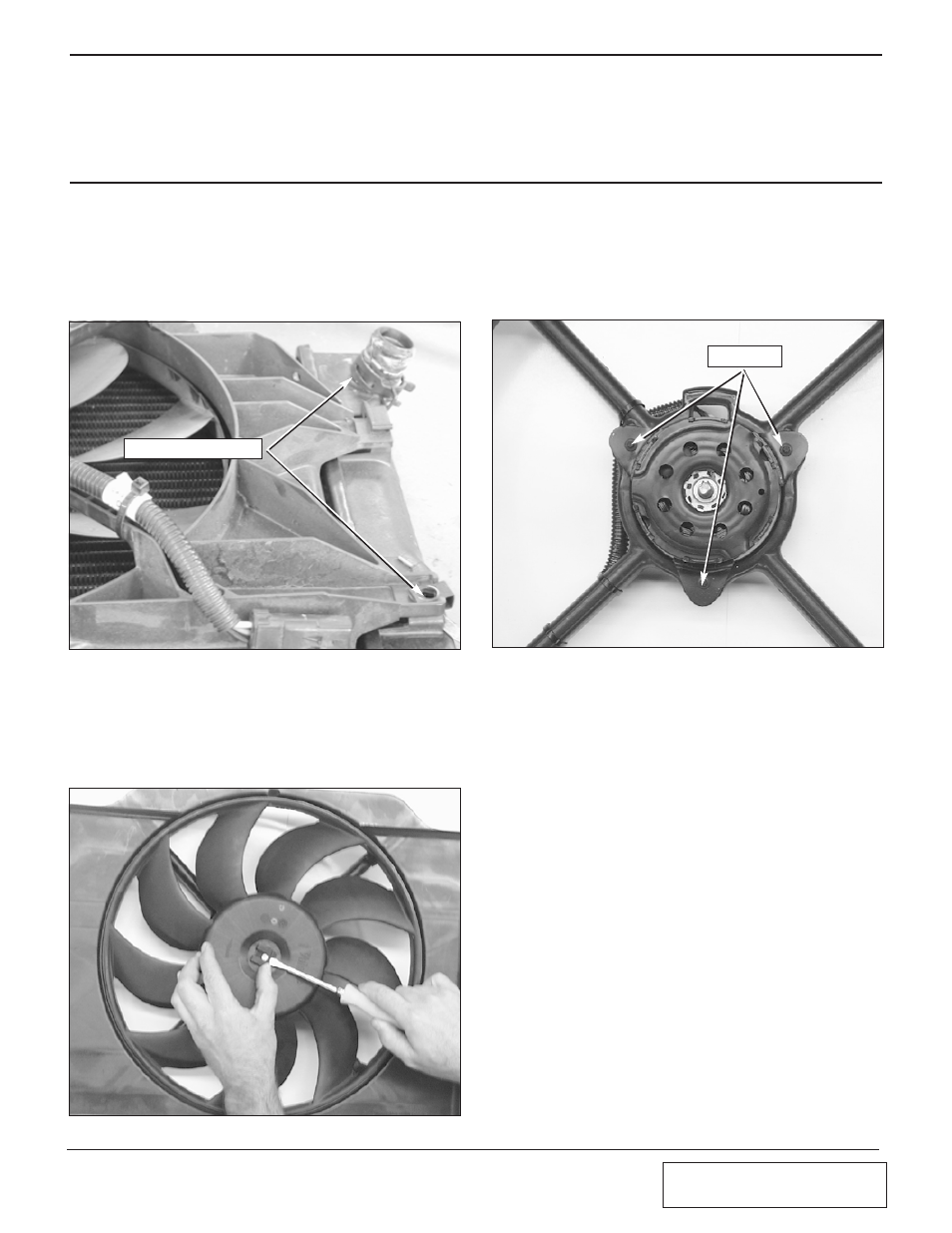

A. Install spacers between the fan and the
shroud. Detach the fan from the support
brace by removing the two mounting screws
and popping the spring clips (see Fig 8-1).
8.1 FAN MODIFICATION
Fig. 8-1
Remove the spring clip that retains the fan
(see Fig. 8-2) and remove the three screws
using an internal Y-27 torx socket (This is a
hard to find size. If you do not have one, a
pair of pliers will do the job.)
Place the three spacers between the motor
and the fan shroud (see Fig. 8-3). This will
space the back of the fan motor away from
the engine slightly. Reassemble the fan.
Fig. 8-2
Fig. 8-3
REMOVE SPRING CLIPS
3 SPACERS
