One Systems PM4-M V4 User Manual
Page 5
IMPORTANT: It is REQUIRED that each of the six (6) band slots be wrapped
TWICE (TWO INDEPENDENT SINGLE WRAPS PER SLOT). This should not
be confused with “double wrapping”, which is two wraps of the band thru a single
buckle. This means that a total of 12 bands and 12 buckles are required for a
single PM4-M bracket. Two independent single wraps per slot will ensure a
strong and secure mounting of the bracket to the pole. Make certain that the two
buckles are separated from each other in each slot as shown below!

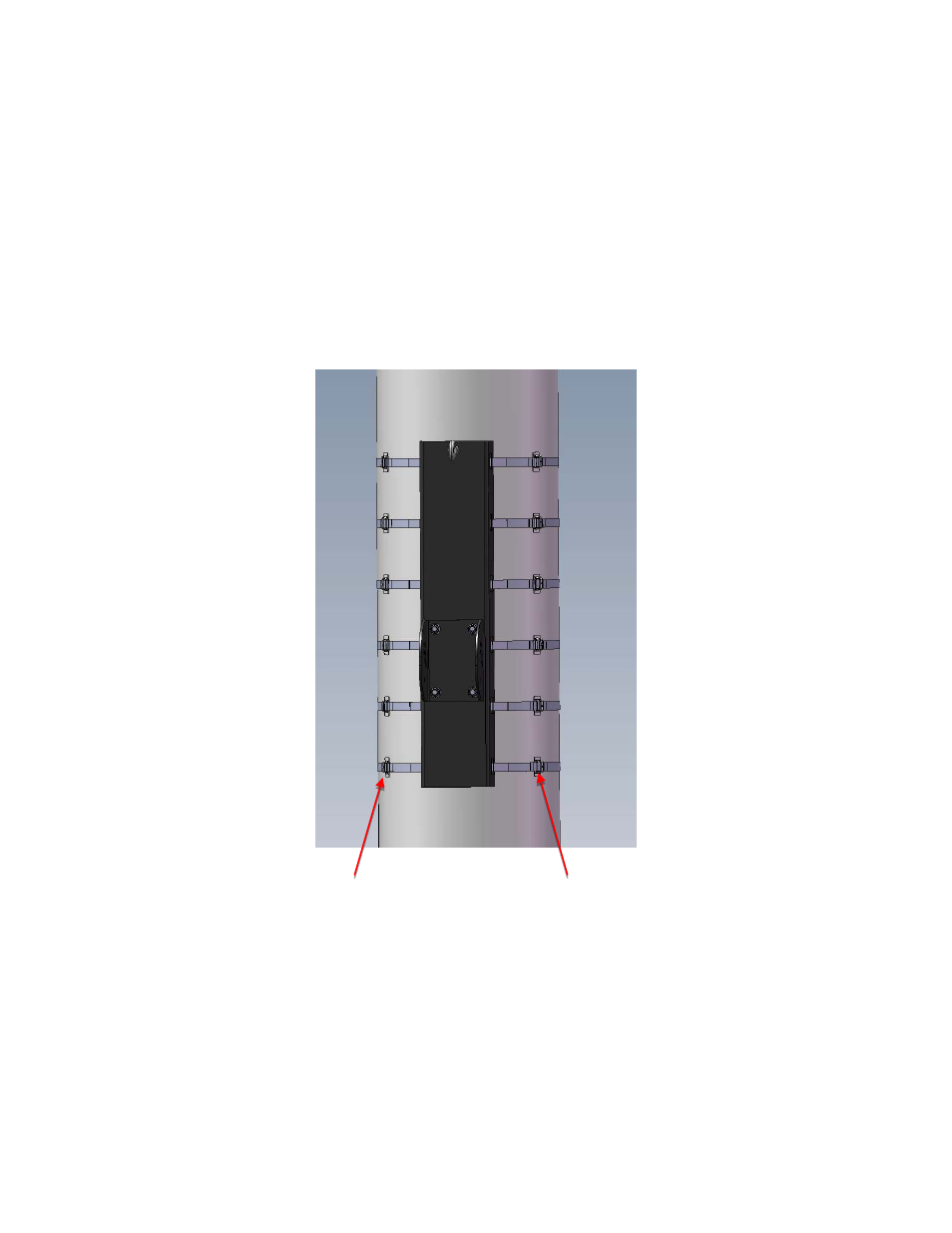

The image below illustrates the double wrapping required for each of the six
slots.
Note the TWO independent bands and buckles per slot
The figure above illustrates the use of two independent bands per slot and also
illustrates the use of all six slots. This is also shown in Figure 4b as well.
