- 11 -
with screws

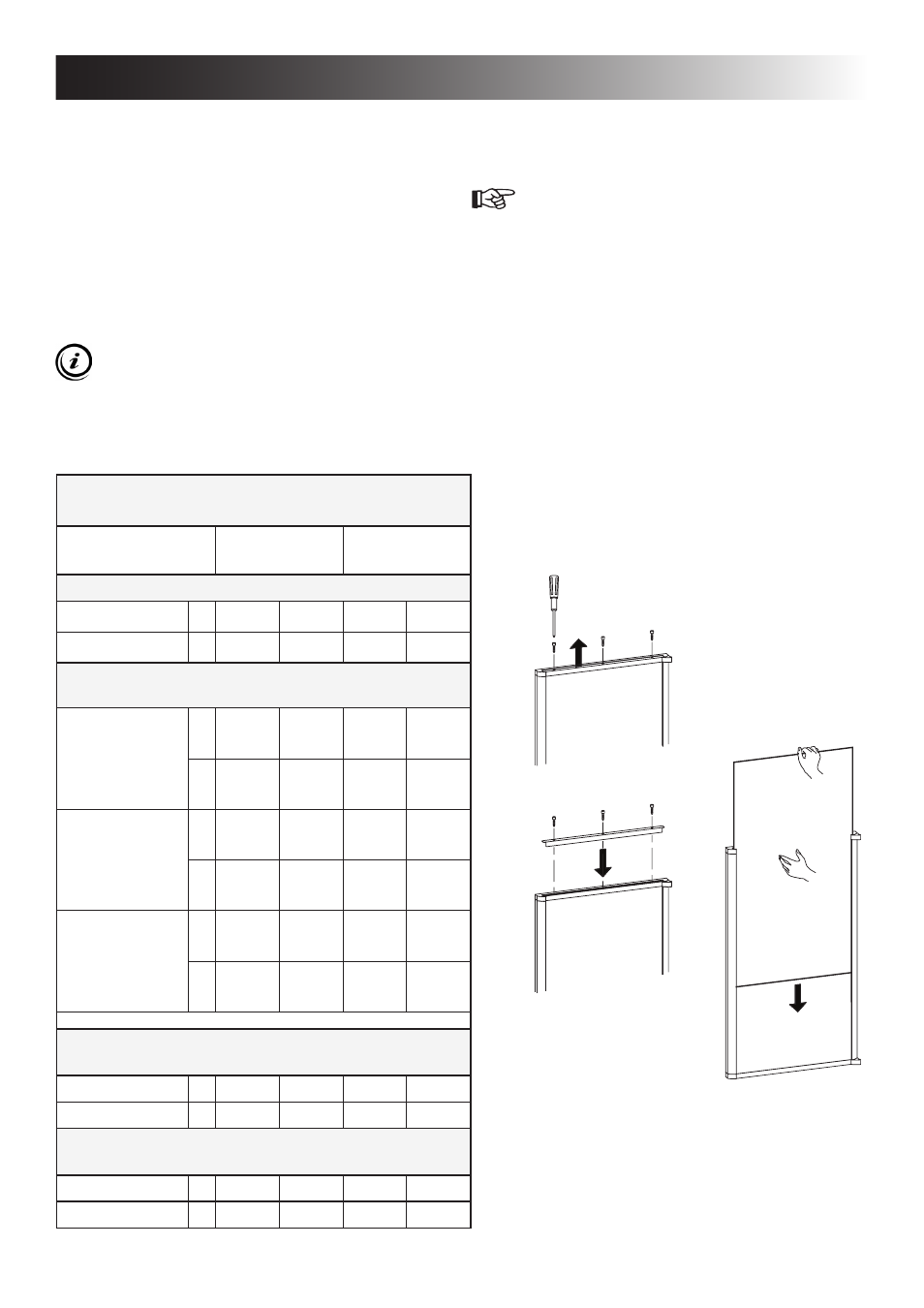

To mount the panel, follow these steps:
Open the door 90 degrees. 1.
On new refrigerators, the decoration strip is taped 2.
inside the door; if installed on the door, remove
the door decoration strip (2) by removing its three
screws (1).
NDR1292 :
Fresh food compartment door - remove three screws.
Freezer compartment door - remove two screws.
Insert the vertical edges into the grooves of the door
3.
frame (3).
Push the panel downwards so that the lower
4.
horizontal edge of the panel (4) is fitted into the bot-
tom grove (5).
Put the decoration strip across the door so that the
5.
gap is covered. Secure the decoration strip with the
screws removed in step 2.
reVerSing the door Swing
For all models, except NDR1292 , the refrigerators are equipped
with hinges that makes it possible to change the direction the
door opens by moving the hinges to the opposite side. A special
hinge kit must be used in order to change the door swing.
For conversion kit number, see APPENDIx A - SPARE PARTS .
For additional information, please contact service point or
distributor service dept. for assistance.
Mounting the door Panel(S)
Optional door insert panels are available for all
models except
NDR1292 . The refrigerator is normal-
ly delivered without door panel(s).
Before starting the mounting work, read this instruction thor-
oughly and check that the panel dimensions are in compliance
with those given in the following table:
paNel DiMeNsioNs
max. thickness 5/32" (4 mm)
height
max min
width
max min
UPPER
mm 403 401 527 524
inch 15-27/32 15-25/32 20-3/4 20-5/8
LOWER /SINGLE
DOOR
RM2351
RM2354
mm
667 665 498 496
inch 26-17/64 26-3/16 19-5/8 19-17/32
RM2451
RM2454
DM2652
DM2662
DM2663
mm 827 825 527 524
inch
32-9/16 32-1/2 20-3/4 20-5/8
RM2551
RM2554
DM2852
DM2862
NDM1062
mm
983 981 527 524
inch 38-11/16 38-5/8 20-3/4 20-5/8
FRoZEN FooD
CoMPARTMENT
NDR1292
mm 1402 1400 288 265
inch 55-3/16 55-1/8 10-9/16 10-7/16
FRESh FooD CoMPARTMENT
NDR1292 mm 1402 1400 430 427
inch 55-3/16 55-1/8 16-15/16 16-13/16
3
3
4
5
1
1
1
2
1
1
1
door mounting instructions
