DS321LR4 User Manual 15

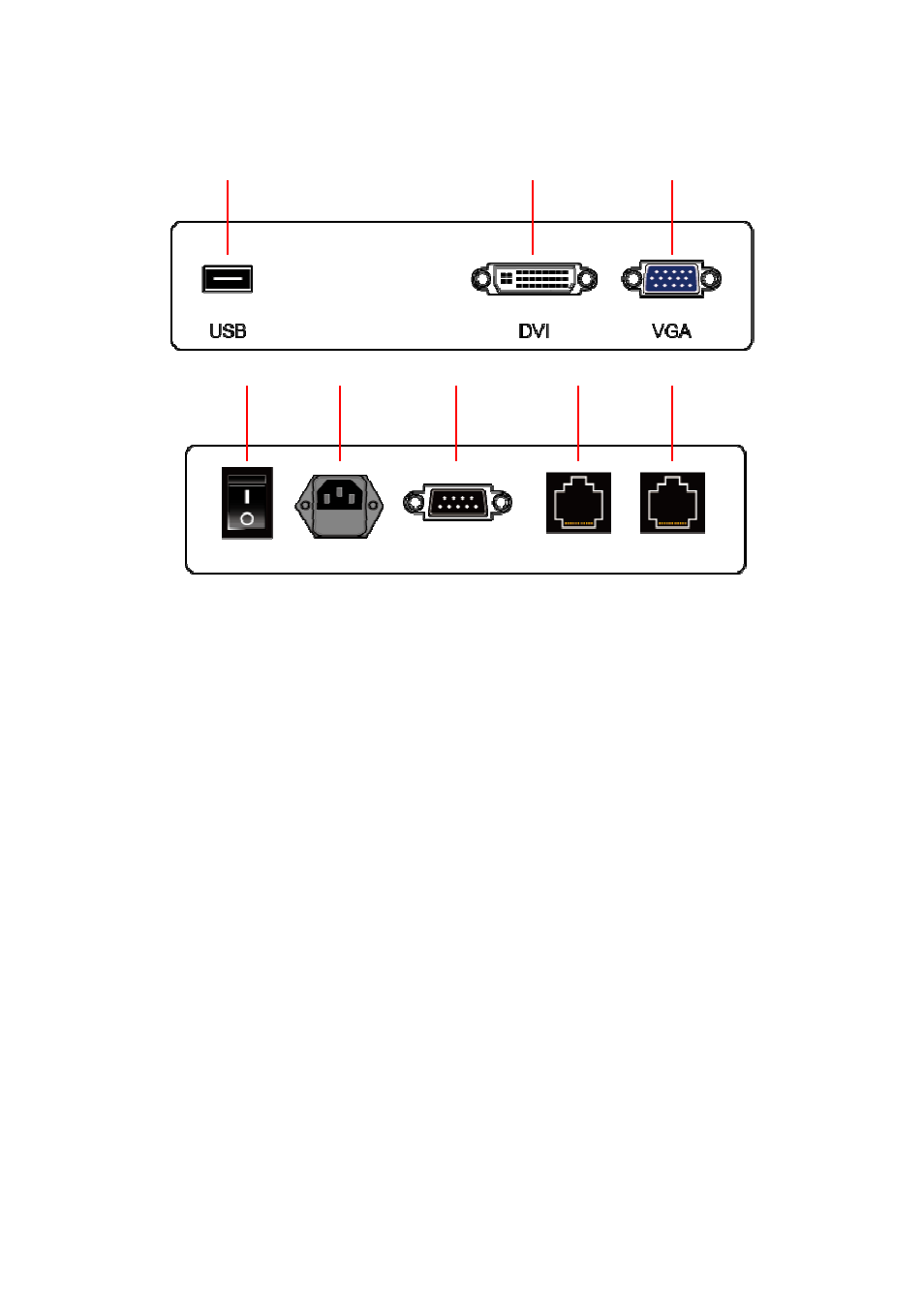

Input / Output Terminals
○ ○ ○ ○
1 VGA (IN): Connect the VGA output of a PC, or an AV device by using a VGA cable.
○ ○ ○ ○
2 DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device by using a DVI-HDMI cable.
○ ○ ○ ○
3 USB: USB can play content (photo, music, movie).
○ ○ ○ ○
4 RS485 (OUT): RJ45 control function for the daisy chain application.
○ ○ ○ ○
5 RS485 (IN): RJ45 network input connection for the use of remote control from computer.
○ ○ ○ ○
6 RS232 (IN): RS232C network input connection for the use of remote control from computer.
○ ○ ○ ○
7 AC (IN): Connect the supplied power cord to the wall outlet.
○ ○ ○ ○
8 Power Switch: Press to switch the main power on/off.
○
6
○
7
○
8
○
5
○
4
○
3
○
2
○
1
RS485 RS485 RS232
