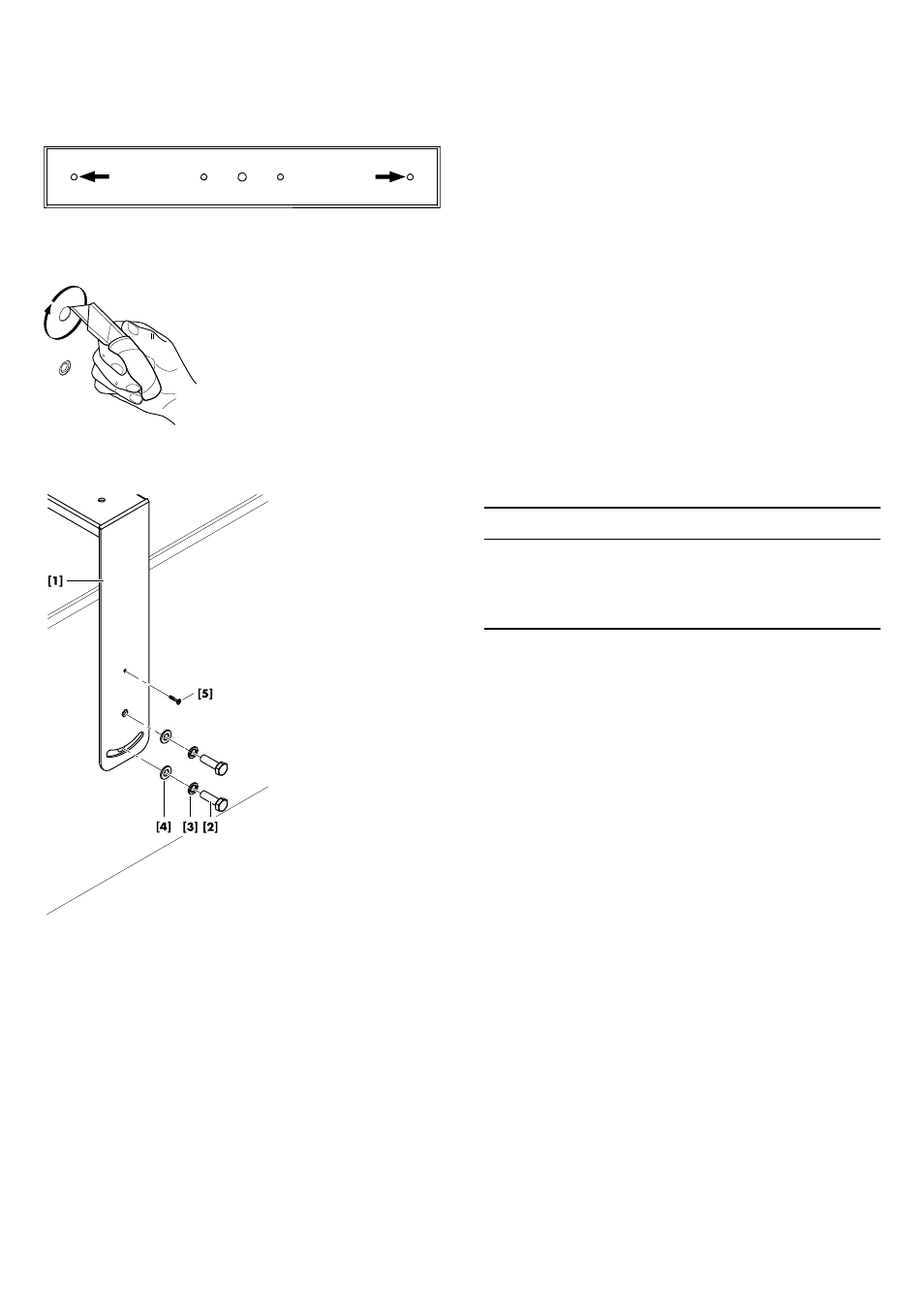

To attach the bracket to the ceiling, use the holes shown in the
graphic opposite to provide adequate support.
A corresponding fixing template is supplied with these mounting
instructions. Refer to Þ Chapter 2. "Fixing templates"
Preparing the cabinet
The top and bottom panels of the loudspeaker cabinet are each
equipped with a pair of M10 threads. The threads are covered by
dummy caps in cabinet color.
To remove the caps, proceed as follows:
1.
Cut out the caps along the recessed spline using an
appropriate cutting knife.
2.
Carefully take off the caps and ensure the cabinet coating is
not peeled off.
Attaching the cabinet to the bracket
NOTICE!
– Only use the supplied and specified screws
[2], otherwise there
a risk of damaging the threaded inserts.
– Always use the spring washers
[3] and U washers [4] to
prevent the bolts from slackening.
Tools required:
– Open-ended spanner/wrench (size #17)
1. Attach the cabinet to the prepared bracket.
2. Insert the screws together with the spring and U washers.
3. Align the cabinet and tighten the screws.
4. If you want to fix the set angle, use the supplied spax screw
[5].
