www.desatech.com 111115-01F
THERMOSTAT SERIES (MODEL
HRC200)
The hand-held remote can be operated using
either the manual mode (MANU) or thermo-
static mode (AUTO) (see Figure 32). To select
Fahrenheit/Centigrade mode display, carefully
press the ˚C/˚F mode button with the end of a
paper clip or similar blunt object.
Manual Mode
1. Press the POWER and LOCK buttons
together to turn on the hand-held remote
control.
2. Press the MANU button to turn on the
fireplace.
3. Press the POWER and LOCK buttons
together to turn off the fireplace.
Auto (Thermostatic) Mode
1. Press the POWER and LOCK buttons
together to turn on the hand-held remote
control.
2. Press AUTO button to select this mode.
3. Set the desired room temperature by press-
ing the TEMP + or - buttons.
4. Press the POWER and LOCK buttons
together to turn off the fireplace.
Note: Do not leave the hand-held remote in the
AUTO mode close to the fireplace. The radiant
heat from the fireplace will turn off the fireplace.
Ideally, place the hand-held remote in the center
of the room facing towards the fireplace.
Note:
Do not hold the hand-held remote for
a long time. Body temperature will affect its
operation in the AUTO mode.
oPERAting HEAtER
Continued

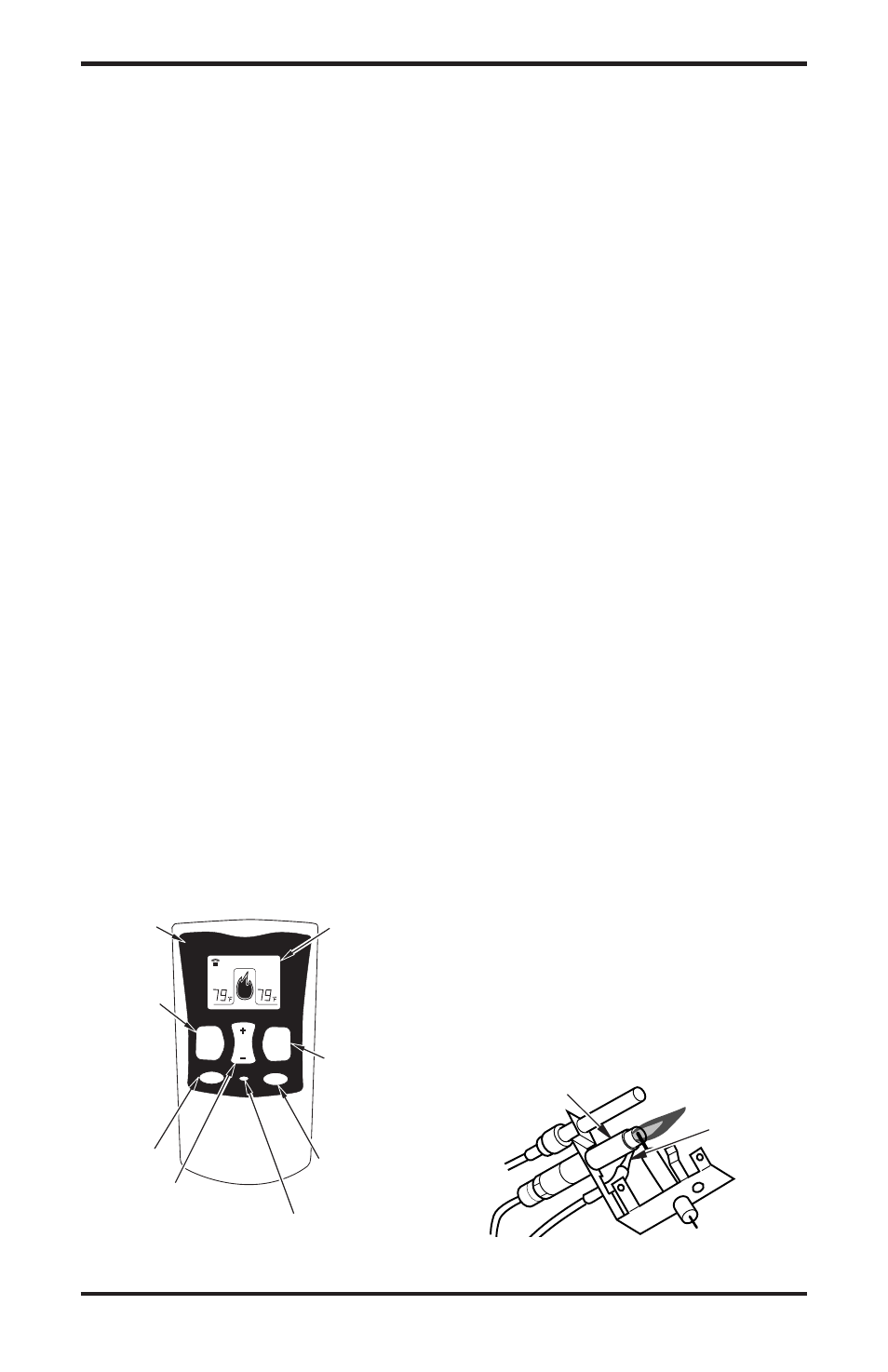

Figure 32 - Thermostat Hand-Held
Remote Control Unit (HRC200)
Safety Features
When away from home for an extended period
of time or as a child safety feature to prevent
accidental ignition of the fireplace, the receiver
ON/OFF/REMOTE switch should be in the
OFF position.
Auto Shutoff Feature
1. If the average room temperature exceeds 82
degrees Fahrenheit (28 degrees Centigrade),
the hand-held remote control will perform a
safety override and shut the fireplace off. This
feature is not available in the MANU mode.
2. The receiver continuously receives signals
from the hand-held remote to control the
room temperature. If the hand-held remote
is misplaced, obstructed or for any reason
cannot transmit to the receiver, the receiver
will shut off the fireplace after 8 minutes.
Key pad Lock Feature
This feature allows the user to lock/unlock
the keypad on the hand-held remote in the
MANU or AUTO mode to prevent inadvertent
operation (i.e. children operating the hand-held
remote control, etc.). The keypad is locked in
either on or off. Press the POWER and LOCK
buttons together to turn the unit on or off.
Figure 33 - Correct Pilot Flame Pattern
(Propane/LP Pilot Shown)
inSPECting BuRnERS
Check pilot flame pattern and burner flame pat-
terns often.
pILOT FLAME pATTERN
Figure 33 shows a correct pilot flame pattern.
Figure 34, page 23, shows an incorrect pilot flame
pattern. The incorrect pilot flame is not touching
the thermocouple. When the thermocouple cools,
the heater will shut down.
If pilot flame pattern is incorrect, as shown in
Figure 34, page 23
• turn heater off (see To Turn Off Gas to Appli-
ance, page 20)
• see Troubleshooting, page 25
Note:
The pilot flame on natural gas units will
have a slight curve, but flame should be blue and
have no yellow or orange color.
Pilot Burner
Thermocouple
Locks
System to
Prevent
Accidental
Ignition
LOCK
MANU AUTO
ºC/ºF
TEMP
POWER
ROOM
TEMP SET
TEMP
AUTO
Turns Hand-
Held Remote
On or Off and
Allows You
to Choose
the Manual
Setting
Selects AUTO
Mode
°C/°F Mode Button
Turns
Burners
On or Off
Increases or Decreases
Room Temperature in
AUTO Mode
Digital
Display
Shows
Temperature
and Settings
Indicator
Light
