Ti-SUB

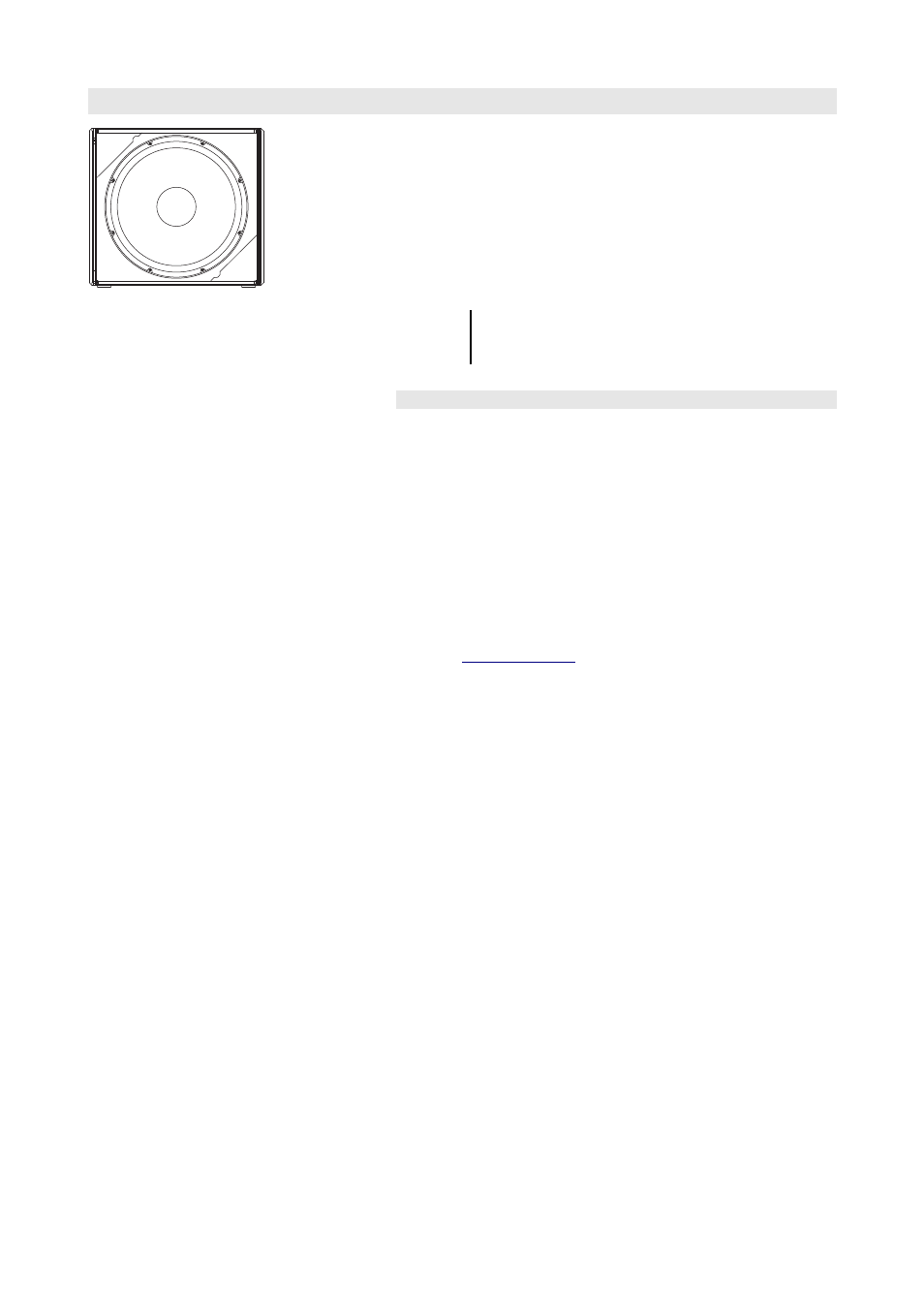

Fig. 1: Ti-SUB loudspeaker
The Ti-SUB is the subwoofer for the Ti-Series. It can be used to
supplement Ti10 cabinets in various combinations, either flown or
ground stacked. The Ti-SUB cabinet is an actively driven bass-reflex
design housing a long excursion 15" driver, its frequency response
extends from 47 Hz to 140 Hz.
The Ti-SUB cabinet is constructed from marine plywood and has an
impact and weather resistant black paint finish. The front of the
loudspeaker cabinet is protected by a rigid metal grill in front of an
acoustically transparent foam.
NOTICE: Only operate Ti-SUB loudspeakers with a correctly
configured d&b amplifier, otherwise there is a risk of
damaging the loudspeaker components.
Ti-Series rigging components and arrays
Cabinets are mechanically connected using the rigging strands on both
sides of the cabinet front and a central strand at the rear of the cabinet.
All necessary rigging components are mounted to the cabinet and are
folded or slide out when needed.
A detailed description of the T-Series rigging components is given in the
T-Series Rigging manual which is provided with the Z5370 T Flying
frame.
A detailed description of planning and designing T-Series arrays is
given in the technical information "TI 385 J-, Q- and T-Series system
design, d&b ArrayCalc" which is also provided with the T Flying frame.
The d&b ArrayCalc array calculator can be downloaded from the d&b
website at
www.dbaudio.com .
