MP-840
14

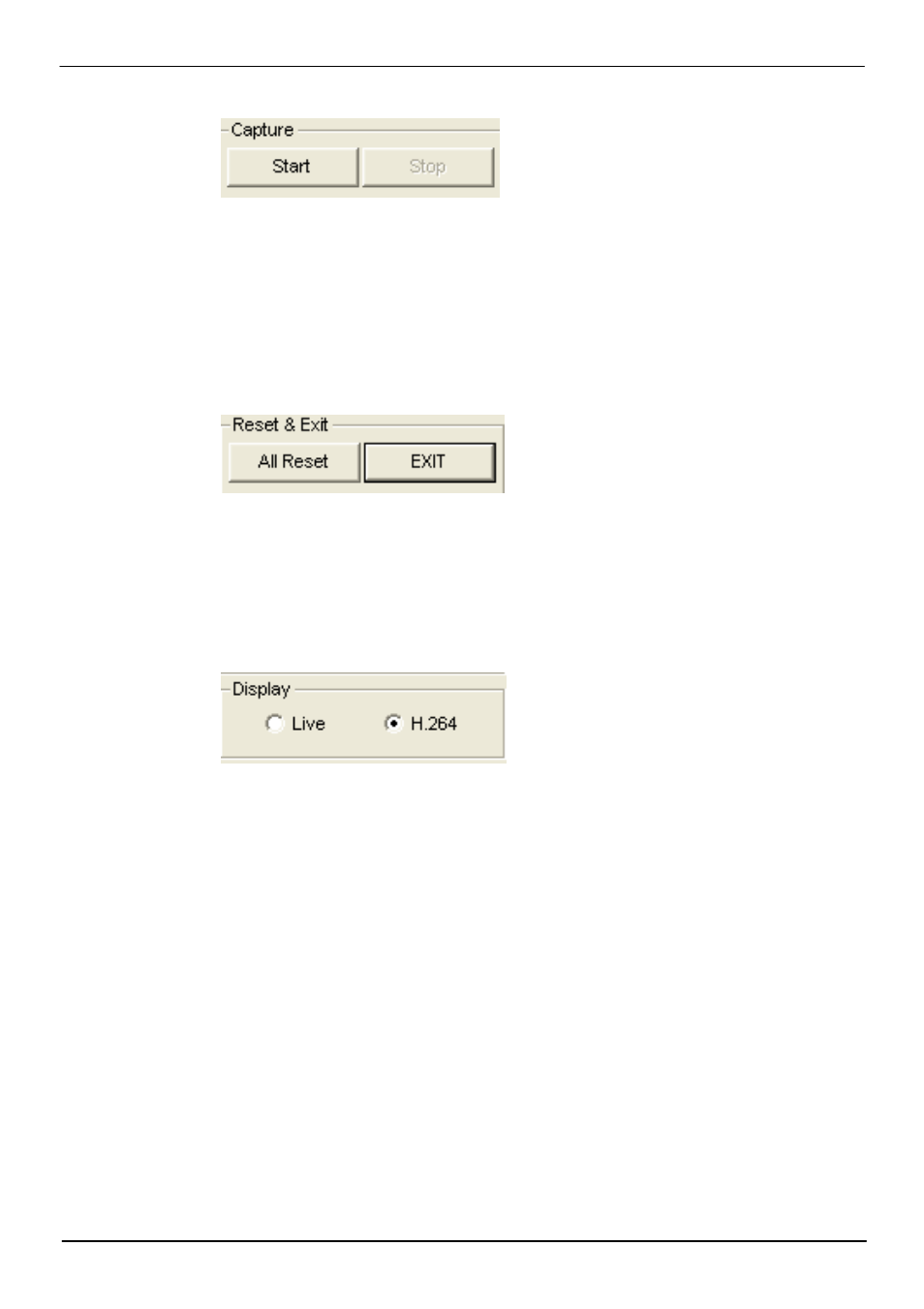

1.6.3
1) There are two [Start] and [Stop] buttons.
2) If choose [Start] button, the live and capture image is displayed.
3) If choose [Stop] button, the live and capture image stops.
1.6.4
1) There are two [All Reset], [EXIT] buttons.
2) If [All Reset] button press, the value in PC Card is initialized in PC Card.
3) If [EXIT] button press, Application program is finished.
1.6.5
1) It could choose [Live] or [H.264] in Display setting block.
2) If you choose [Live] in capturing status, the chosen channel’s live image
is displayed in the screen in the real time.
3) If you choose [H.264] in capture start status, you could watch law capture
image.
