LN-D70 User’s Manual
- 24 -

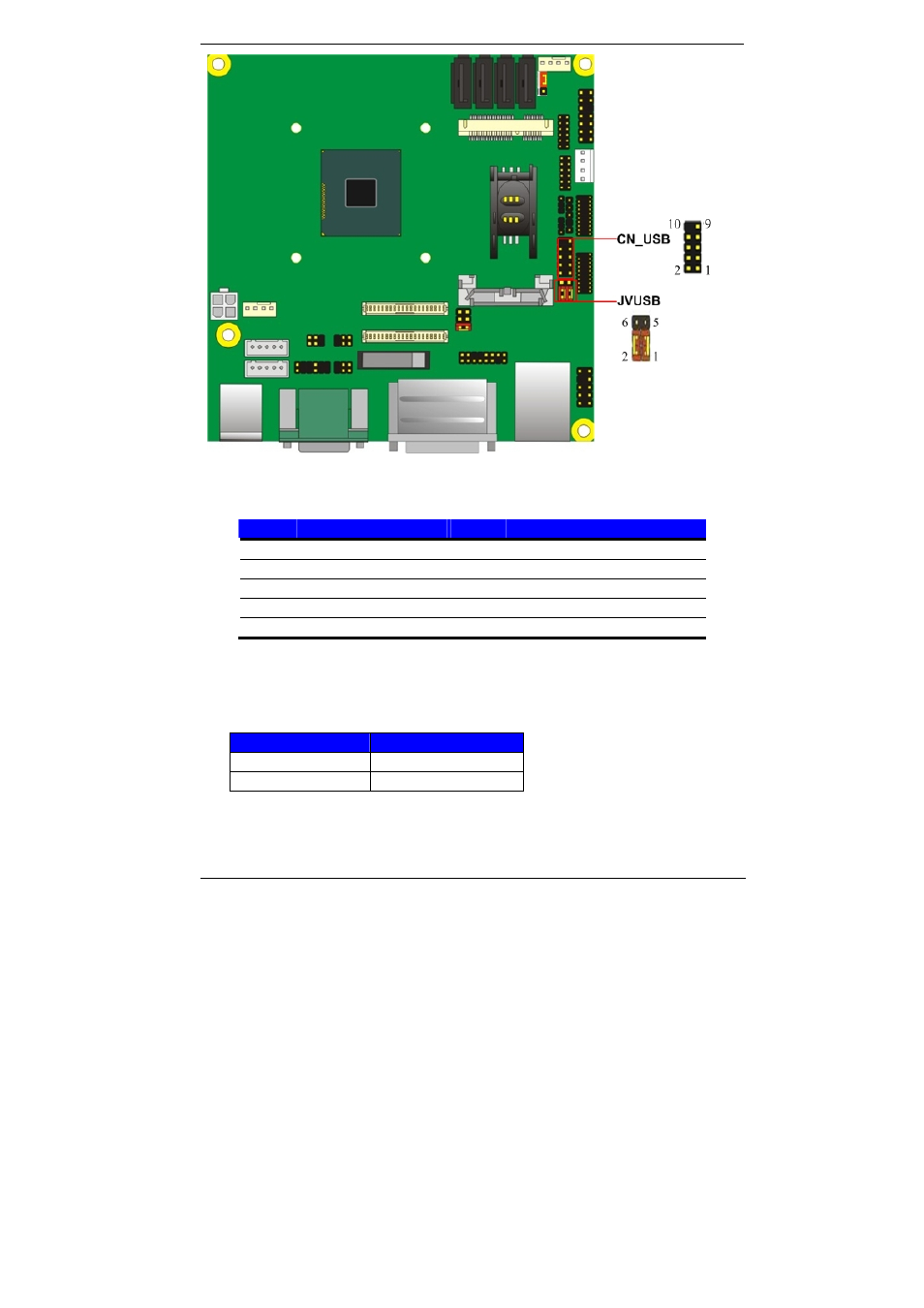

Connector: CN_USB
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin Description Pin Description
1 VCC (5V_SB/ 5V) 2 VCC (5V_SB/ 5V)
3 Data0- 4 Data1-
5 Data0+ 6 Data1+
7 Ground 8 Ground
9 Ground 10 N/C
CN_USB need to enable xHCI Mode .
Connector: JVUSB
Type: 6-pin Power select jumper
Pin Description
1-3 & 2-4 5V_SB
3-5 & 4-6 5V
Default: 1-3 & 2-4
Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
