2.8 Ethernet
Interface
The LV-670 series is integrated with Intel PRO/100+ Fast Ethernet interface
at the type of 10Base-T/100Base-TX auto-switching Fast Ethernet with full
duplex and IEEE 802.3U compliant. The LV-670 series LAN interface is
controlled by the Intel 82801DB ICH4 and 82562ET PHY, and connect with
the external RJ45 connector on rear I/O panel.

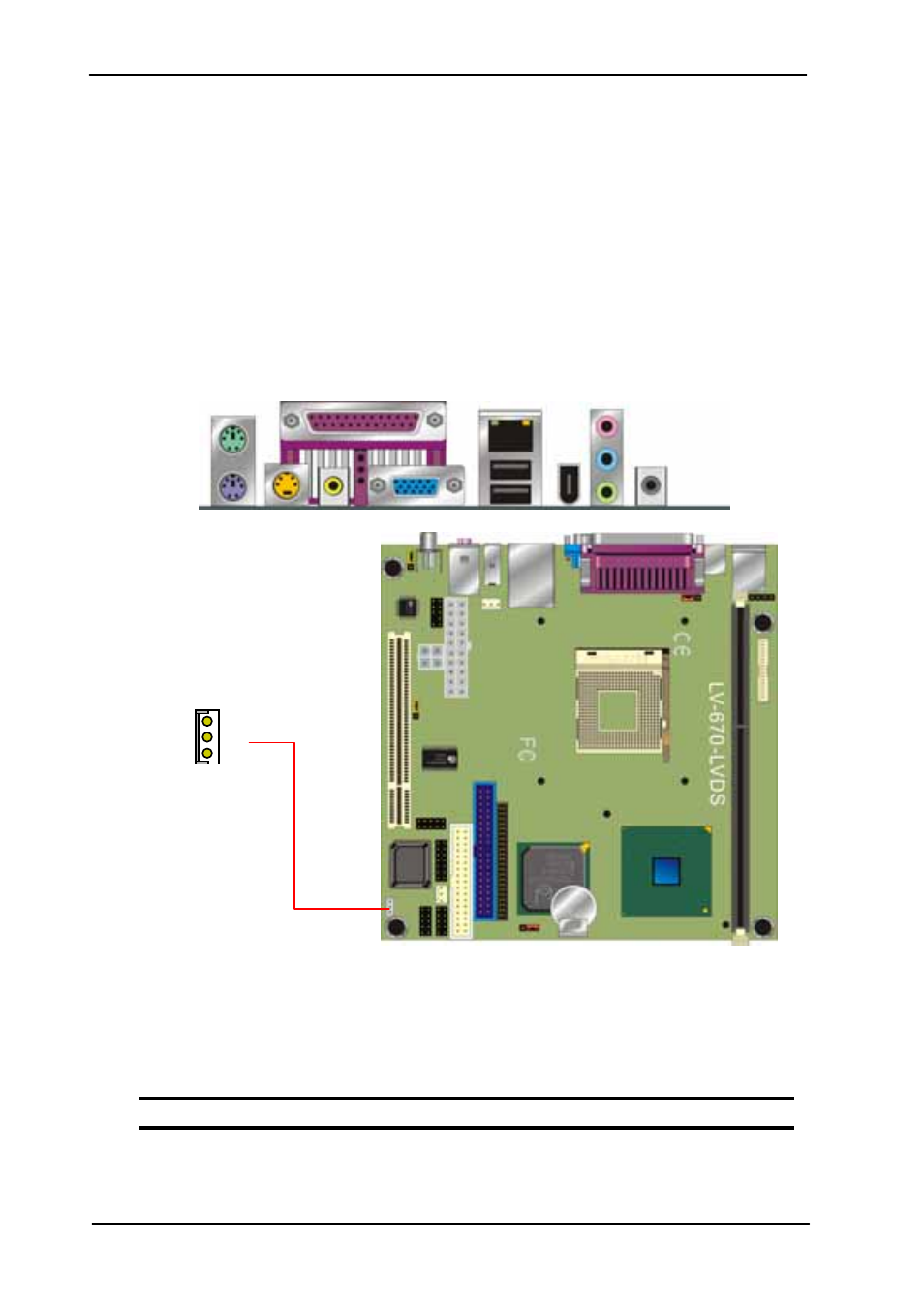

Connector: CN_WOL
Type: onboard 3-pin (1 x 3) wafer connector
Pin 1 2 3
Description WOL-Ctrl
Ground
+5V
Standby
CN_WOL
1
2
3
LAN
