Do not operate the flexible shaft
with a sharp bend. This can
generate excessive heat and will reduce tool and flex-
shaft life. The recommended minimum is 5" radius.
Contents of 225 Flex-Shaft Attachment:
Qty.
Description
1
Flex-Shaft Assembly (42" long)
1
Driver Cap
Page 14
#560
Drywall Cutting Bit
For use in drywall.
• When inserting the #560 bit into your Rotary Tool,
make sure that the bit has been inserted as far as
possible.
• When using a template (outlet box) behind the
drywall, use the drywall bit #560, cutting in a counter-
clockwise direction.
#561
Multipurpose Cutting Bit
For use in wood, plastics, drywall, fiberglass, vinyl
or aluminum siding, acoustical tile and laminates.
• When inserting the #561 bit into your Rotary Tool,
make sure that the bit has been inserted as far as
possible.
• When making freehand cuts in Drywall, example
repairing a hole in drywall, use the Multipurpose bit
#561, cutting in a clockwise direction.
• When using #561, Multipurpose Cutting Bit, start the
bit into the material at a 45 degree angle and then
slowly bring it to a 90 degree angle to begin the cut.
#562
Tile Cutting Bit
For use on wall tile, cement board and plaster
• When inserting the #562 bit into your MultiPro tool,
it is very important that 1/16”-1/8” of smooth shank
remains visible above the collet.
• When using #562, Tile Cutting Bit, start the bit into
the material at a 45 degree angle and then slowly
bring it to a 90 degree angle to begin the cut.
• NOT FOR USE ON FLOOR TILE
Cutting Guide 565
The Cutting Guide 565 (sold separately) comes
completely assembled and ready to use. For use in a
variety of materials up to 3/4” thick. Match the bit
type to the material to be cut. Always hold the tool
firmly, using slow steady pressure to make cuts.

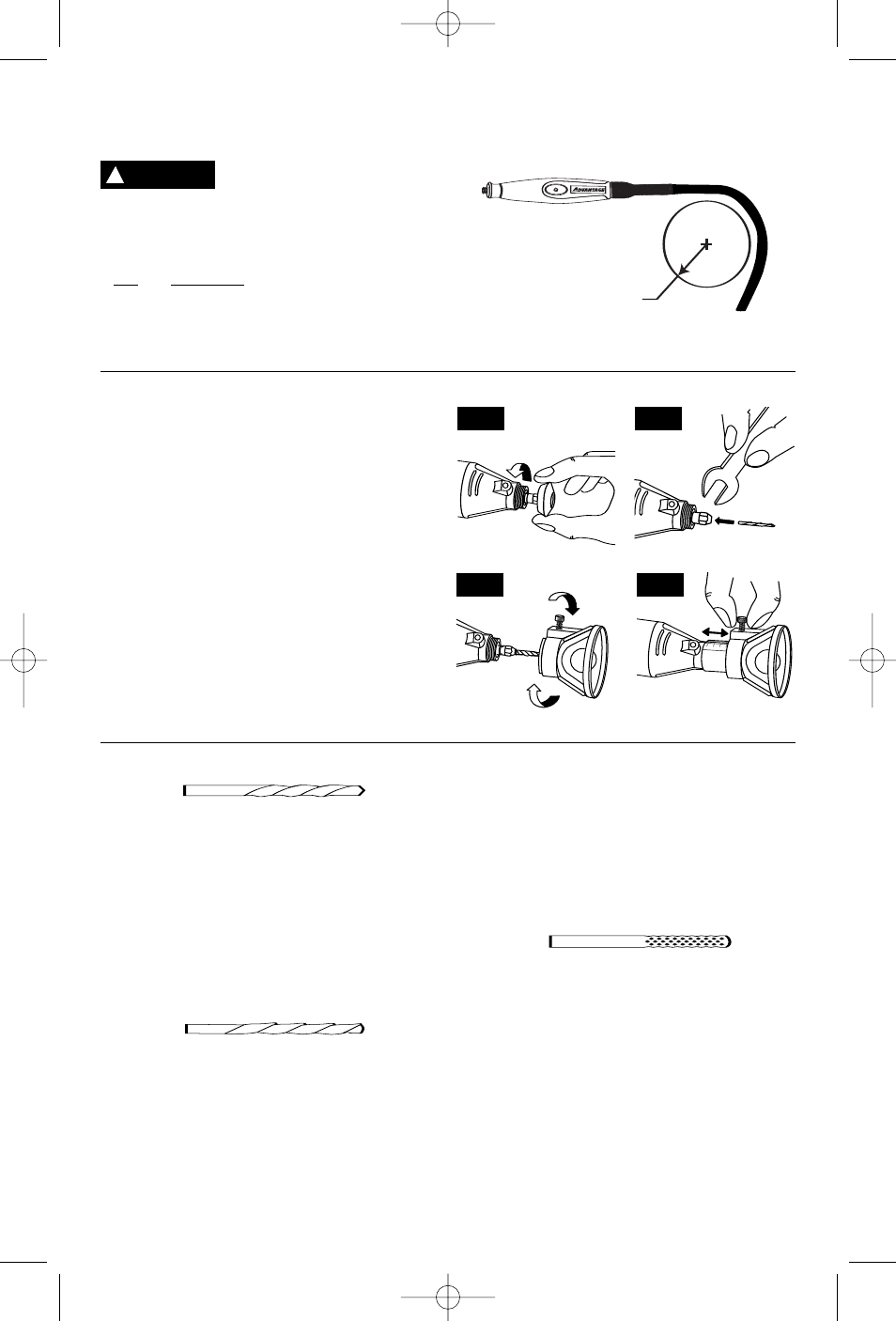

To attach, follow the four steps shown below.
Important: When viewing the tool from the top, the
bit rotates clockwise. Feed direction of cutting
must be counter-clockwise.
WARNING
!
5" RADIUS
3
/4
1
/2
1
/4
0
3
/4
1
/2
1
/4
0
3
/4
1
/2
1
/4
0
3
/4
1
/2
1
/4
0
Step 1
Step 2
Step 3
Step 4
Assembly & Operation of Attachments - (Cont.)
