PMCA User’s Manual Hardware Setup
Digital Display 24

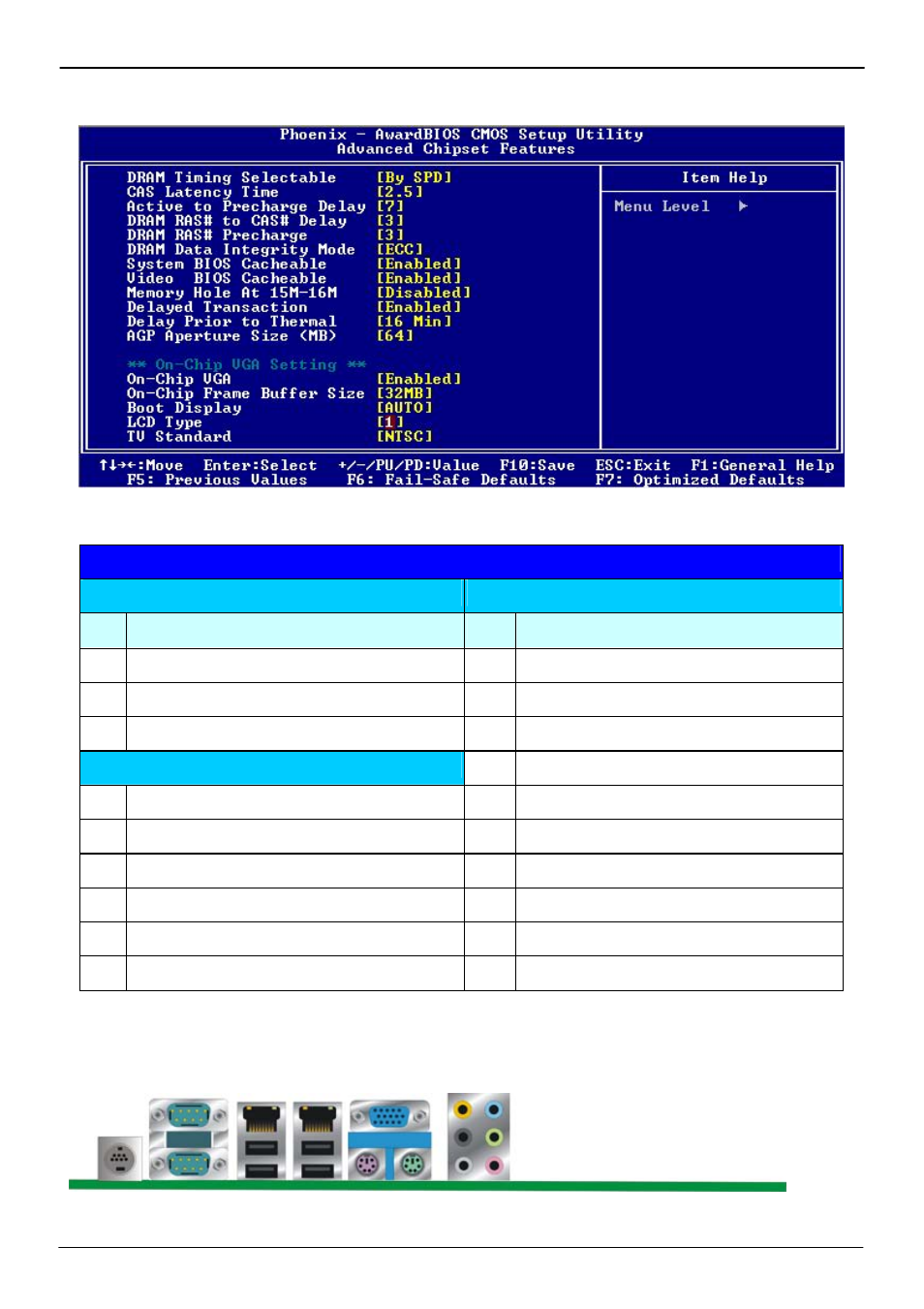

After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
BIOS panel type selection form
18 bits Single channel 24 bits Dual channel
NO. Output format NO. Output format
1 640 x 480 9 1024 x 768
2 800 x 600 10 1280 x 768
3 1024 x 768 11 1280 x 1024
24 bits Single channel 12 1366 x 768
4 1280 x 768 13 1400 x 1050 @ 108Mhz
5 1280 x 1024 15 1600 x 1200
6 1366 x 768
7 1280 x 800
8 1600 x 1200
14 1024 x 768
2.10.3
The board provides one Mini-Din 7pin support Composite, S-Video and Component .
HDTV
