2.14

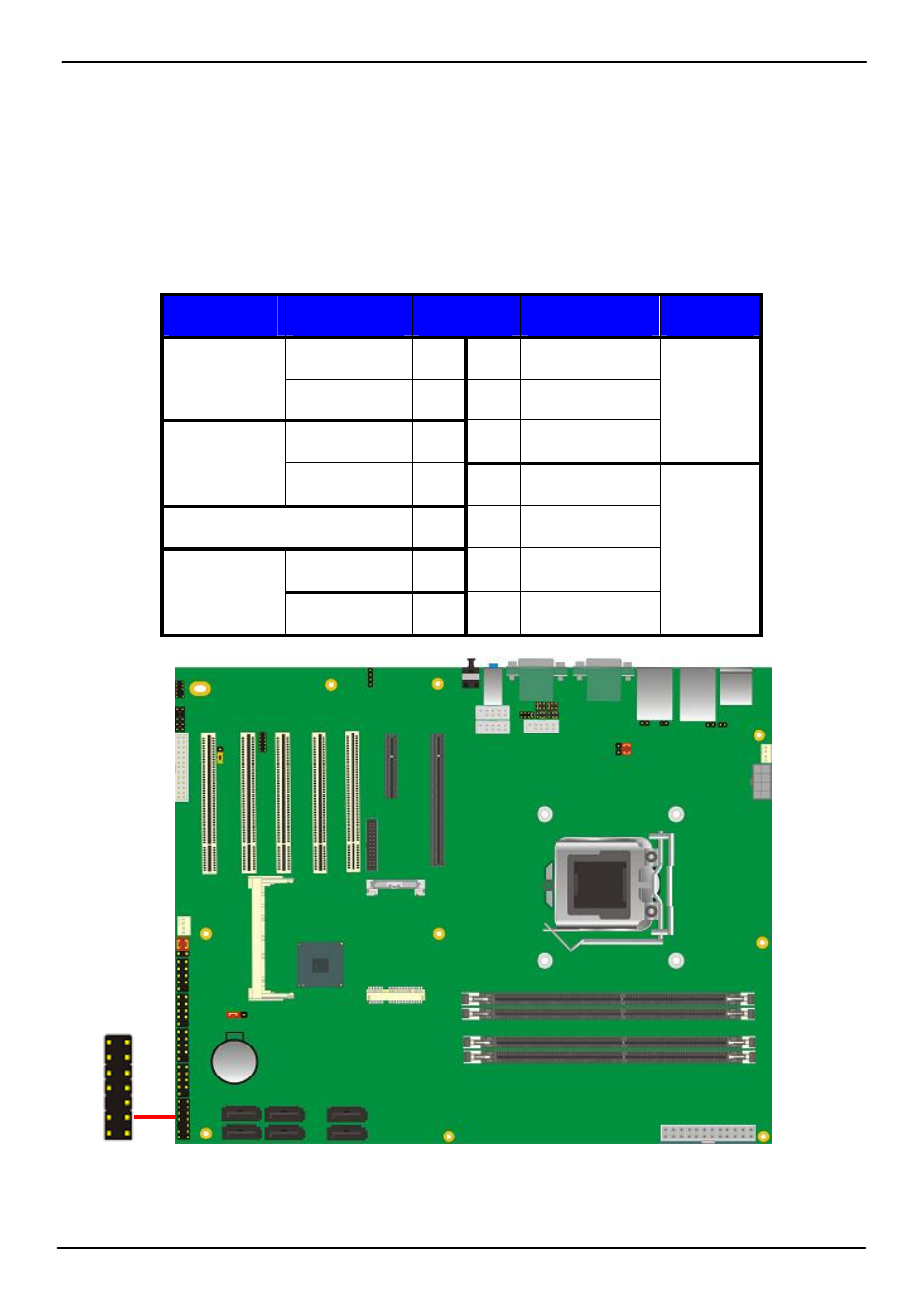

The JFRNT provides front control panel of the board, such as power button, reset and

beeper, etc. Please check well before you connecting the cables on the chassis.

Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header

Function

Signal

PIN

Signal

Function

HDLED+ 1

2 PWDLED+

IDE LED

HDLED- 3

4 N/C

Reset+ 5

6 PWDLED-

Power

LED

Reset

Reset- 7

8 SPKIN+

N/C 9

10

N/C

PWRBT+ 11

12

N/C

Power

Button

PWRBT- 13

14

SPKIN-

Speaker

1 2

JFRNT

13 14
