The board provides the onboard high definition audio with Realtek ALC262

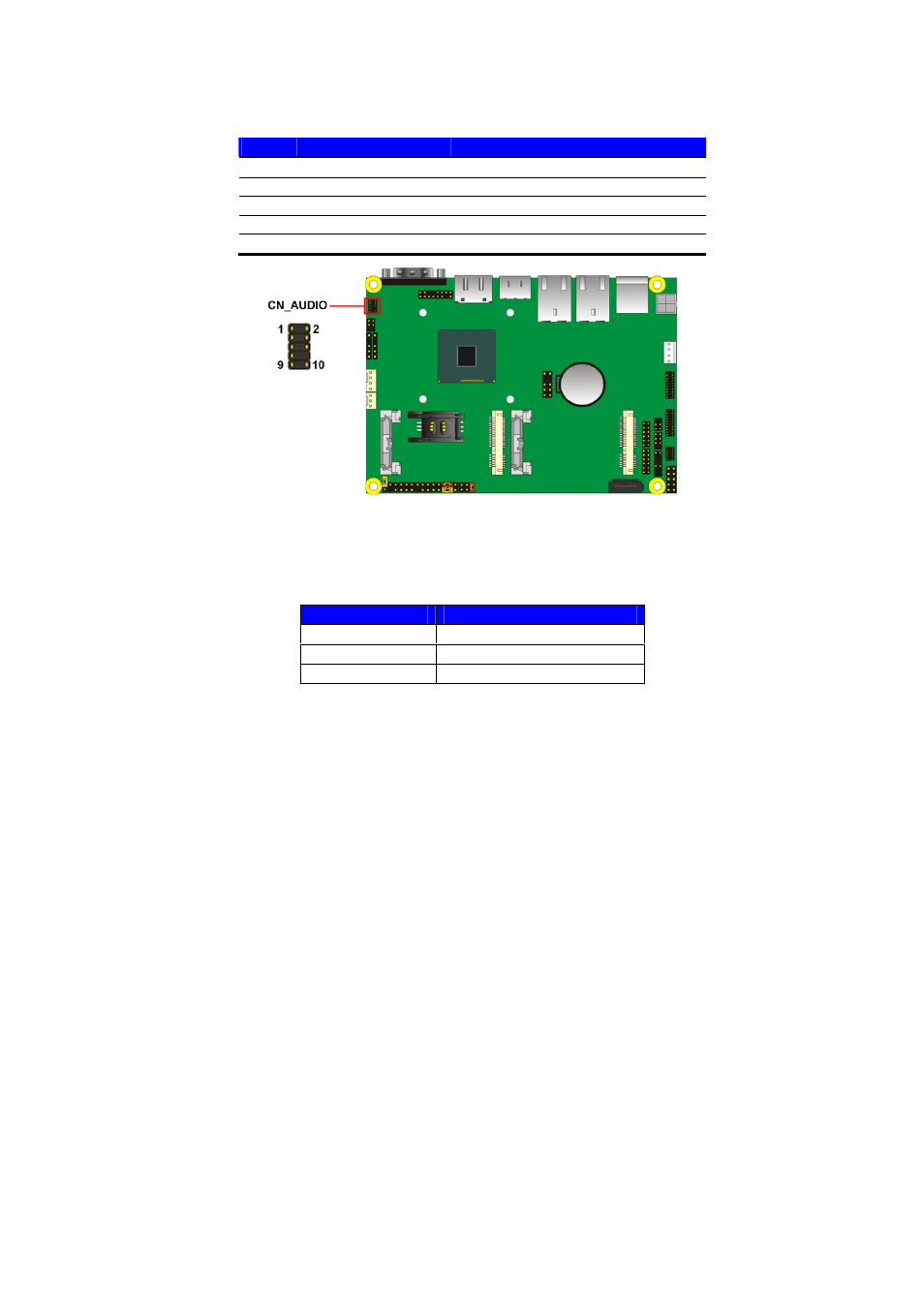

Connector: CN_AUDIO
Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header
Pin
Description
Pin
Description
1 MIC_L
2 Ground
3 MIC_R
4 N/C
5 Speaker_R
6 MIC
Detect
7 SENSE
8 N/C
9 Speaker_L
10
Speaker
Detect
2.10
LE-37D integrates 5 x USB2.0 and 1 x USB3.0.
The specifications of USB3.0 are listed below:
The USB3.0 port need to
Install USB 3.0 eXtensible Host Controller Driver and
enable xHCI Mode.
2.10.1 USB 3.0 eXtensible Host Controller Driver install
Step1. Copy the USB 3.0 driver from “Driver CD” to the local hard driver directory.
(
Do not run this driver from a USB storage device)
Interface
USB3.0
Controller
J1900 / N2930 / E3845
Transfer Rate
Up to 5Gb/s
Voltage 5V
