A.3 Page 44
Page 44
FE-97G User’s Manual
-43-

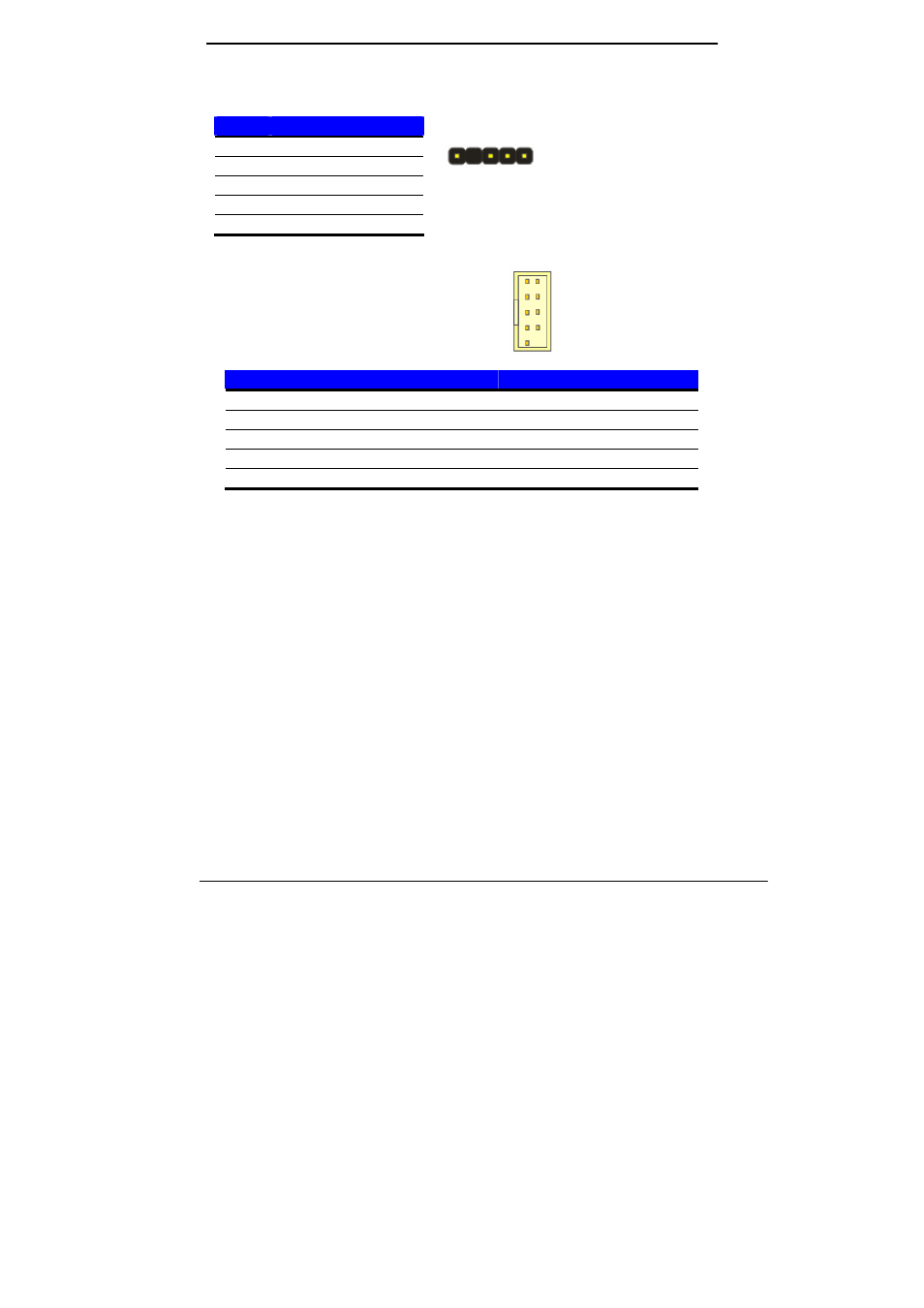

A.3
Connector: CN_ SMBUS
Type: 5-pin header for SMBUS Ports
A.4
Connector: CN_COM2
Type: 9-pin box header
Pin
Description
Pin
Description
1 DCD/422TX-/485-/+5V 2 RX/422TX+/485+
3 TX/422RX+
4 DTR/422RX-
5 Ground
6 DSR
7 RTS
8 CTS
9 RI
/+12V
Pin
Description
1 V5S
2 N/C
3 SMBDATA
4 SMBCLK
5 Ground
1
5
1
2
9 10
