Desa BNG150T - Manual (Page 7)

7 103887
OWNER’S MANUAL

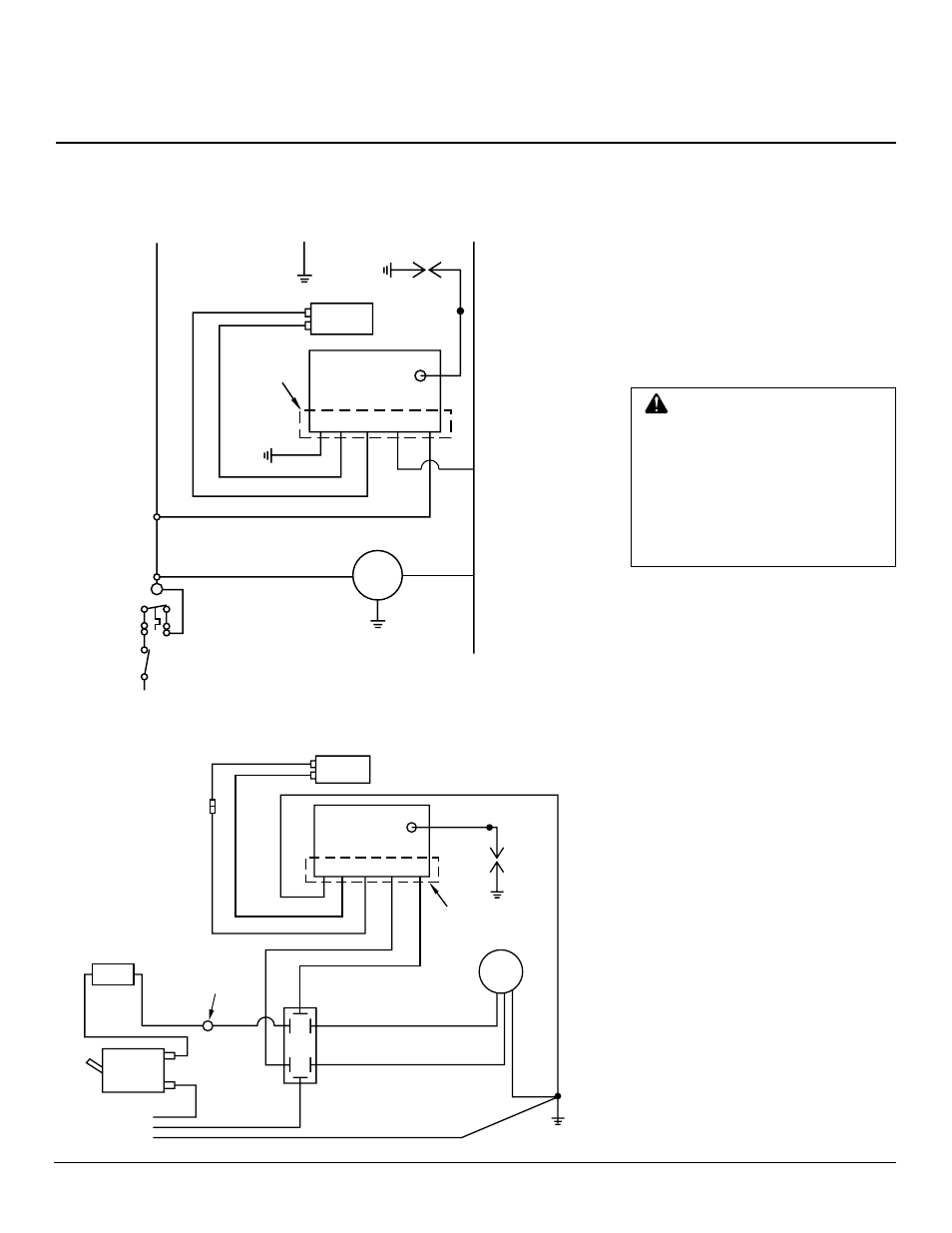

WIRING DIAGRAMS
Electrical Connection Diagram
Orange
Green
Automatic
Ignition
System
G V VR ACR AC
Position of
Leads May
Vary Blue
Blue
White
White
Black
Blue
Insulated
Connector
Solenoid
Valve
Black
Motor
Power Cord
120 VAC
On/Off
Switch
Black
High
Temp
Switch
Black
Thermostat
White
Green
Green
T
Black Black
Line
Neutral
Green or
Green/Yellow
Black White
Green
Black
White
Motor
Blue
Blue
Blue
Green Black White
Orange
Ignitor
Solenoid
Valve
Automatic
Ignition
System
G V VR ACR AC
Position of
Leads May
Vary
T
Electrical Ladder Diagram
You may have further questions about this
heater. If so, contact DESA International’s
Technical Service Department at 1-800-
323-5190 or visit our website at
www.desatech.com .
TECHNICAL
SERVICE
REPLACEMENT
PARTS
PARTS UNDER WARRANTY
Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), either contact your nearest Parts
Central or call DESA International’s Tech-
nical Service Department at 1-800-323-
5190. When calling DESA International,
have ready:
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• purchase date
In most cases, we will ask you to return the
defective part to the factory.
PARTS NOT UNDER
WARRANTY
Contact authorized dealers of this prod-
uct. If they can’t supply original replace-
ment part(s), either contact your nearest
Parts Central or call DESA International’s
Parts Department for referral information
at 1-800-972-7879. When calling DESA
International, have ready:
• model number of your heater
• the replacement part number
WARNING: Use only original
replacement parts. This heater
must use design-specific parts.
Do not substitute or use generic
parts. Improper replacement
parts could cause serious or fa-
tal injuries. This will also protect
your warranty coverage for parts
replaced under warranty.
