INSTALLATION TIPS
1. Due to the inside of CAT5 cable containing pairs of wires twisted at different rates, AND the different quality
on the cable itself and installation different signal arrival time at each pair may occure. If there are big different
at arrival time, that will cause skew status. This is seen on the monitor as separation, or lack of convergence in
colors. Normally it happens on long CAT 5 cable runs.

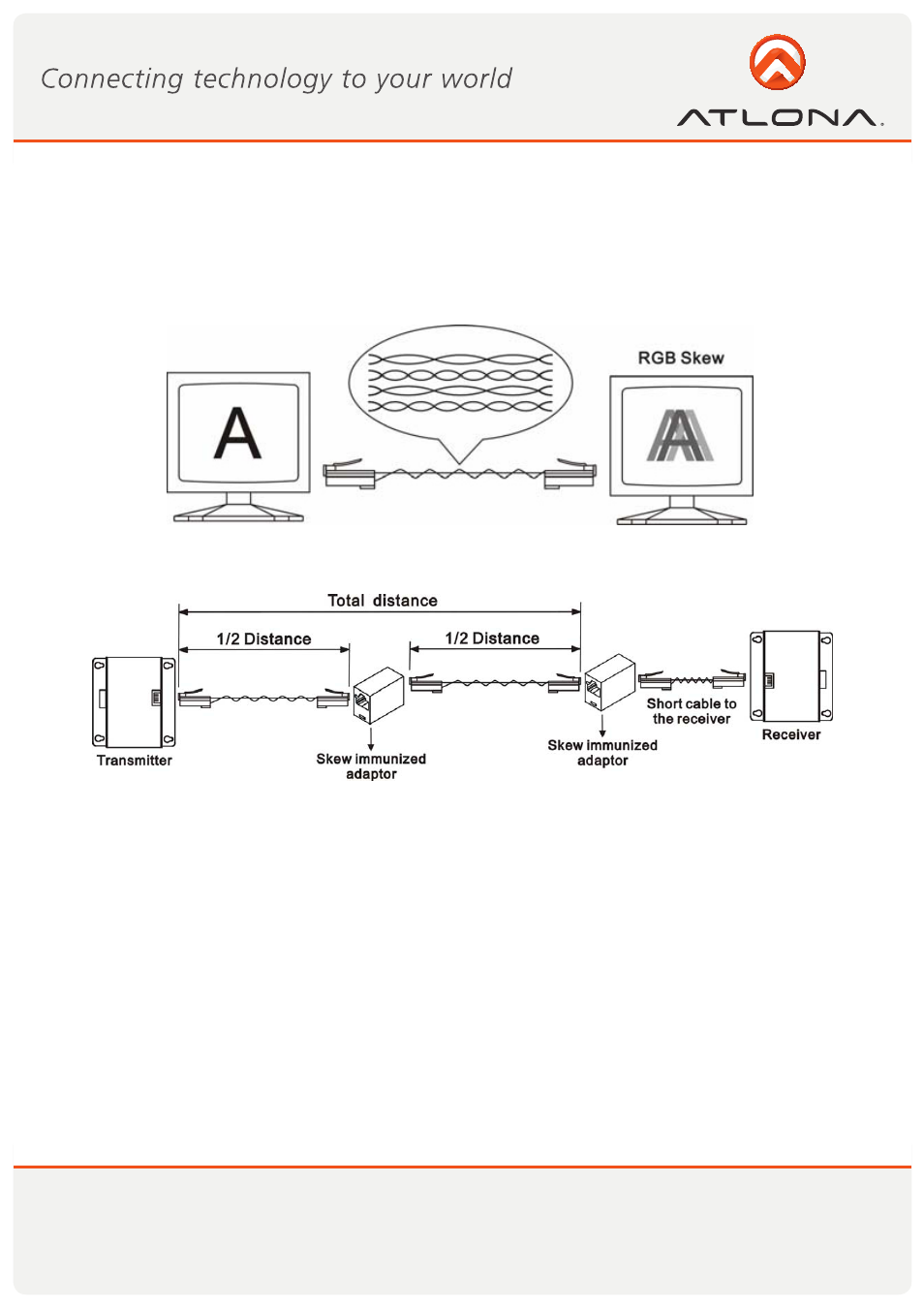

2. Recommend to use following cabling design to reduce skew status, to add special made “skew immunized
adaptor”, 2 pieces included at the package.
CAUTION: to avoid display equipment damaged, be sure to make correct cable connection and pow-
er for both AT-COMP300SL before connecting AT-COMP300RL.
