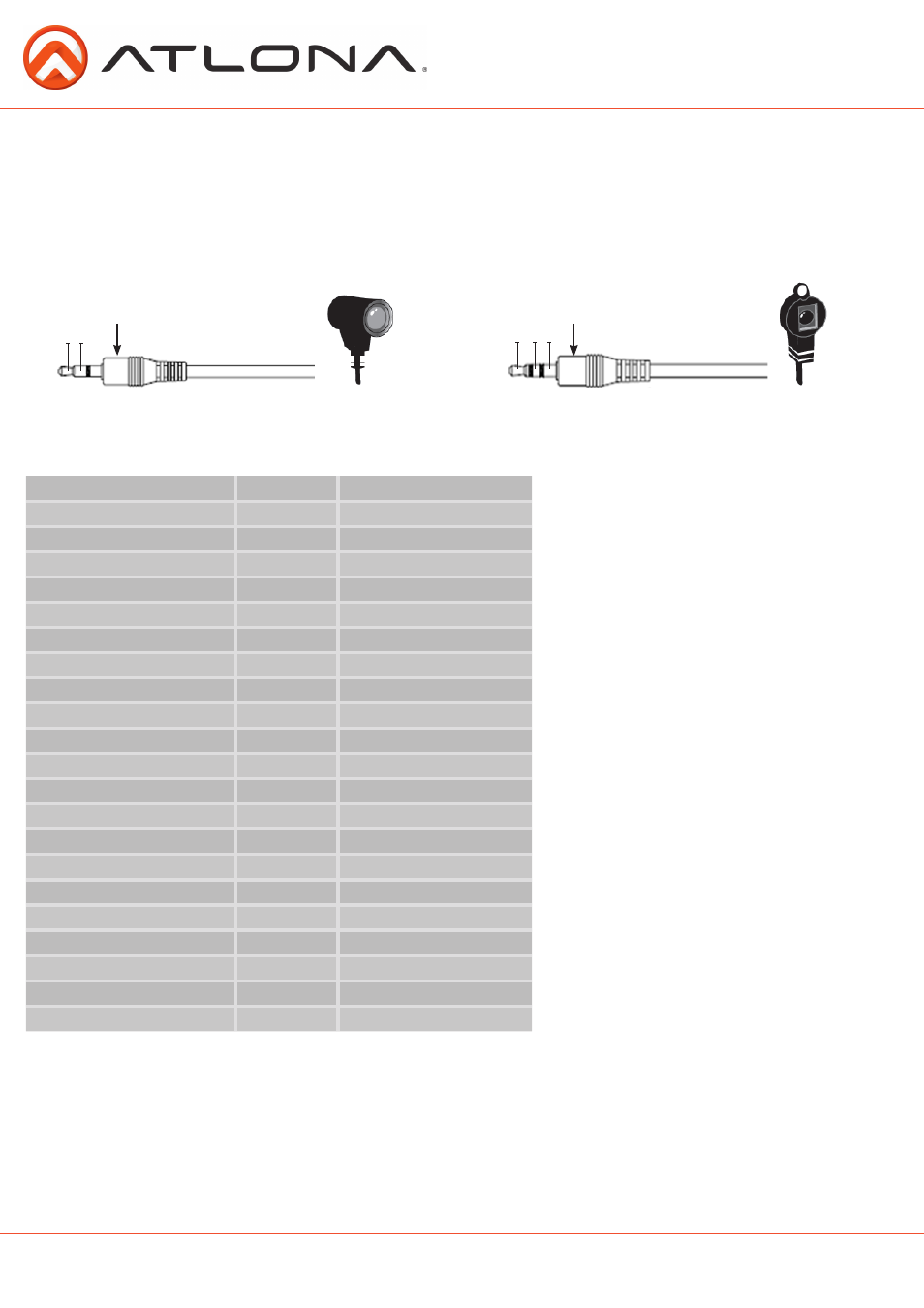

6.3. Definition of IR Earphone Jack.
IR Blaster IR Receiver
1 1 2 2 3
1. IR Signal (60KHz)
2. Grounding
1. Power
2. IR Signal (60KHz)
3. Grounding
6.4. Supported IR Data Format.
Data Format Suitable Not Recommended
NEC v
RC5 v
TOSHIBA MICOM CODE v
GRUNDIG CODE v
SONY 12 BIT CODE v
SONY 15 BIT CODE v
SONY 20 BIT CODE v
RCA CODE v
RCM CODE v
MATSUSHITA CODE v
MITSUBISHI CODE v
ZENITH CODE v
JVC CODE v
M50560-001P v
MN6125H v
MN6125L v
MN6014_C5D7 v
MN6014_C6D6 v
MC14457P v
LC7464(AHEA) v
GEMINI_CM v
