1. IR Receiver: 3.5mm socket for plugging in the extension cable of IR receiver
2. IR Blaster: 3.5mm socket for plugging in the extension cable of IR blaster
3. HDMITM OUT: connect to a HDMITM display with a HDMITM male-male cable
4. +5V DC: connect to 5V DC power supply unit
2.2. Rear Panel
IR PASS-THROUGH

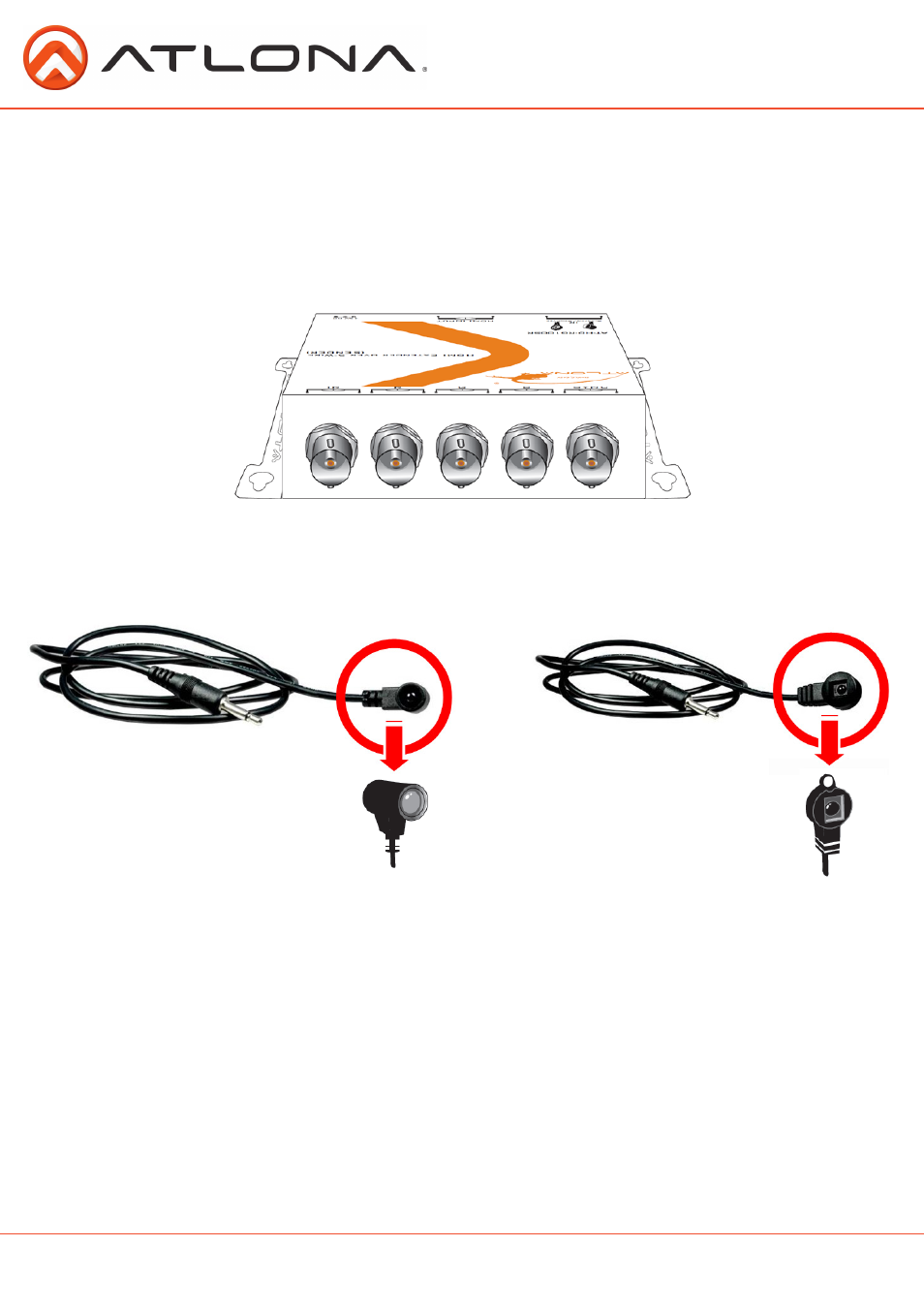

6.1. IR Extenders.
IR
Blaster IR Receiver
6.2. IR Sockets
IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other
enf to control the devices corresponding to the IR signals.
IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the
corresponding devices.
CAUTION!
Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders.
Please check carefully before plugging in the IR extender to the respective IR sockets.
Warranty will not cover the damage.
