Panel Descriptions
HDMI IN: Connect a HDMI source with a HDMI M-M cable here
Rotary switch:
0: HDMI mode with 8 audio channels
1: HDMI mode with S/PDIF 2 audio channels
2: DVI mode
3-5: Reserved
6: Use default EDID
7: Learn EDID from the receiver
TMDS: Plug in a CAT5/5e/6 cable that needs to be linked to the TMDS connector
of the receiving unit: AT-HDMI40R.

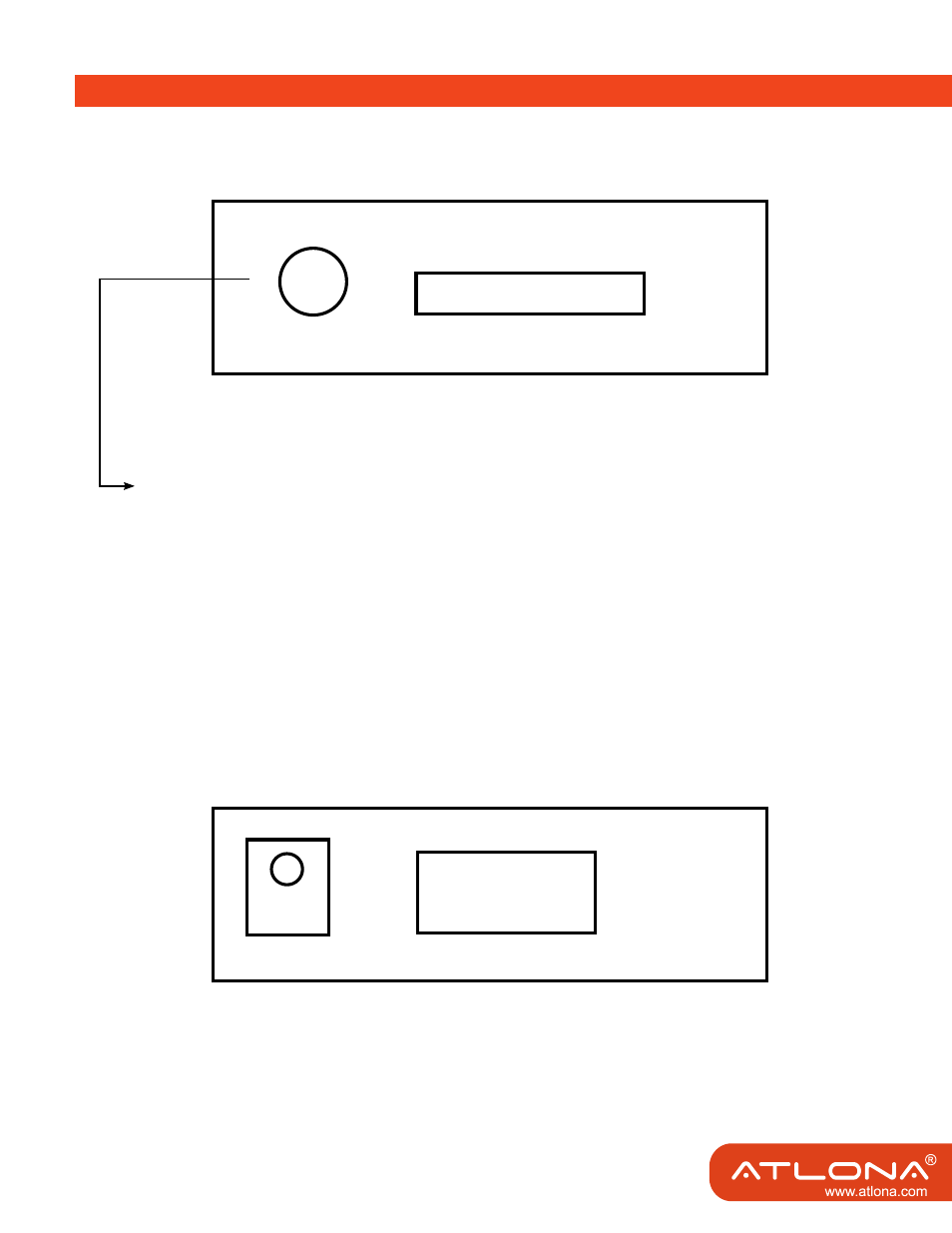

Front View - Transmitting Unit AT-HDMI40S
Rear View - Transmitting Unit AT-HDMI40S
Mode
HDMI IN
5V DC TMDS
