Atlona AT PROHD88M SR - Manual (Page 5)

www.atlona.com | toll free: 1-877-536-3976
For International: 1- 408-962-0515
5

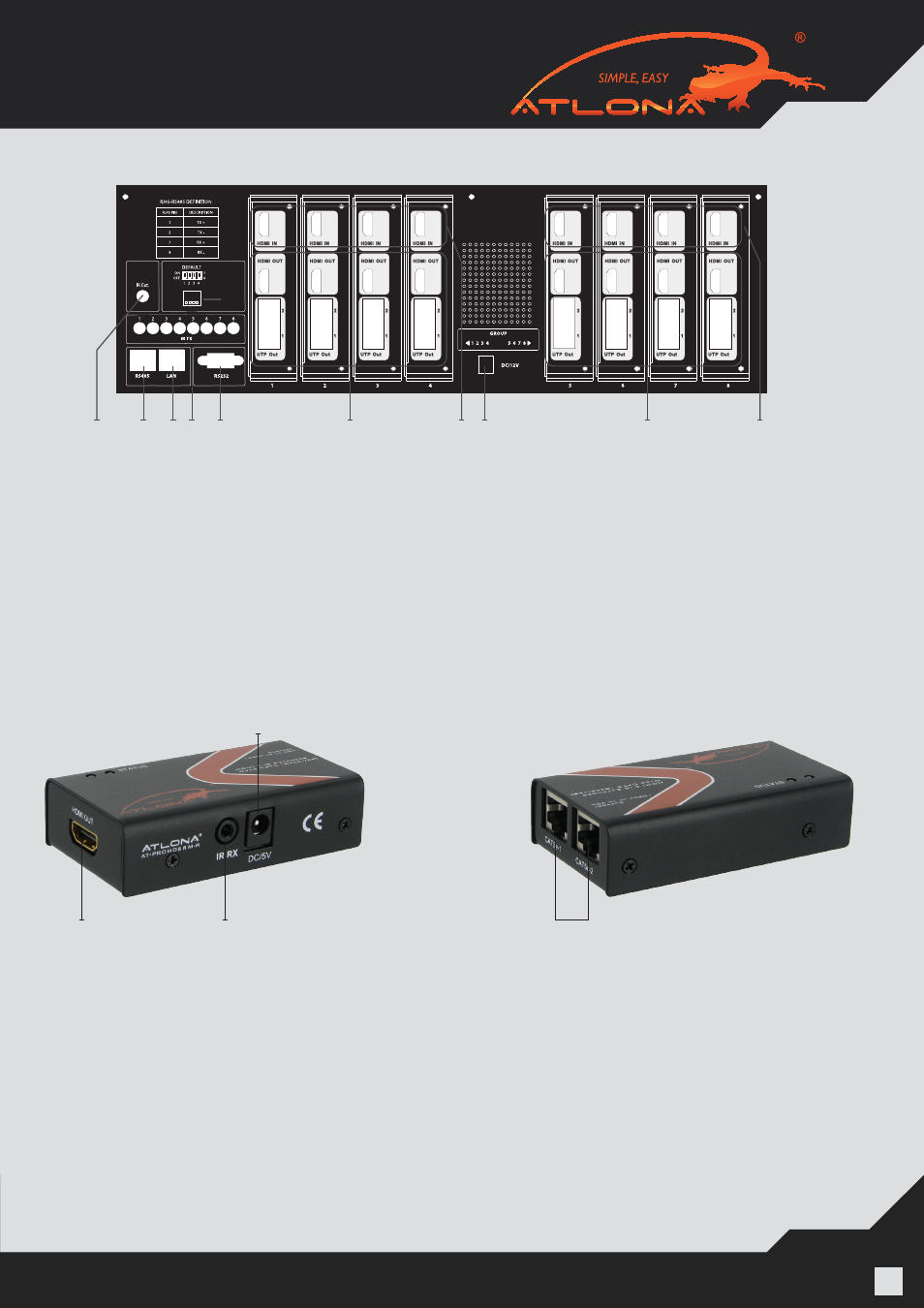

2. Rear Panel
1. IR extension. 7. Input ports 1 to 4.
2. RS485 port. 8. Power input.
3. LAN port. 9. Output 5 and 8 with HDMI and CAT5E.
4. IR emitter, corresponding to the Input port from 1 to 8 10. Input ports 5 to 8.
5. RS232 port. 11. DIP switch setting.
6. Output 1 to 4 with HDMI and CAT5E.
Note: The TCP/IP port has to be connected to the computer via direct Crosswire CAT5/6/7 wire while if connected to the router it needs
to be connected though Straight wire.
HDMI Receiver (8 x Receivers included)
RJ45 inputs – please be careful when connecting RJ45 # 1 and # 2 inputs. They absolutely have to match the
outputs on the switch. Output # 1 should be connected to Input # 1 and Output # 2 should be connected to
Inputs # 2.
1 2 3 4 5
11
6 7 8 9 10
RJ45 Inputs IR Input RX
Power Input
HDMI Out
