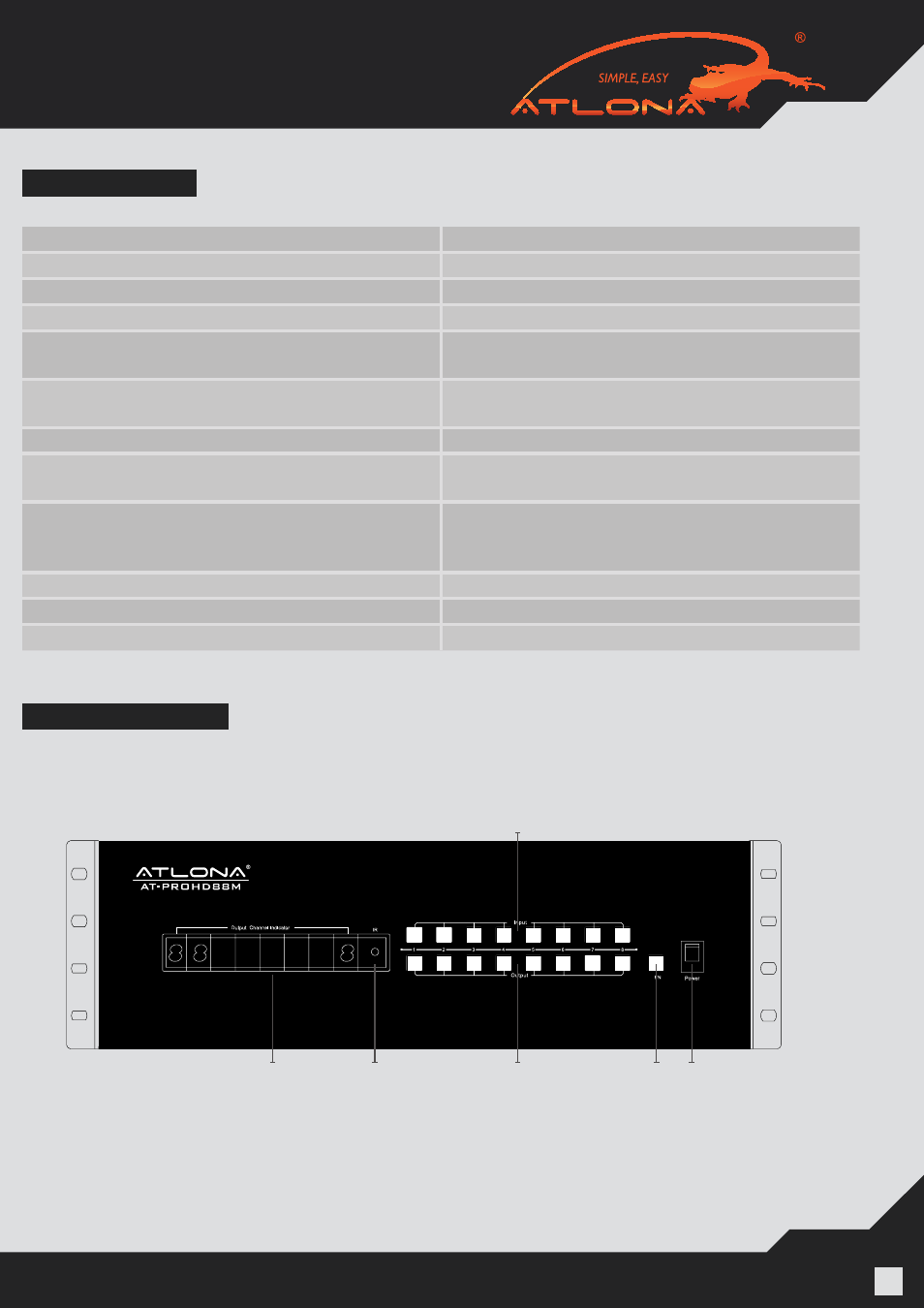

PANEL DESCRIPTION
1. Power ON/OFF switch
2. SET/ENTER (Push the ‘FN’ button to confirm change of an input channel to an output).
3. Output selection push-buttons (Use it to choose the preferred output channel).
4. Input selection push-buttons (Use it to choose the preferred input channel).
5. IR window.
6. LED indicator of input for output port 1 to 8.
Main Unit
1. Front Panel
SPECIFICATIONS:
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 12v (main unit) and 5v (receivers)
Video Format Supported HDTV: 480p/576p/720p/1080i/1080p (50/60Hz)
Computer: up to 1920x1200
Audio Format Supported All latest HDMI audio formats including Dolby
TrueHD and DTS-HD
HDMI Standard HDMI 1.3c
Maximum Output Distance
(HDM out)
55ft (16m)
Maximum Output Distance
RJ45 outputs
165ft (50m) @ 1080p on CAT5/6 cables and
Up to 250ft (80m) @ 1080p on the CAT7 cable
(Tested with Tyco wire)
Power Consumption 30wtts (Max)
Dimensions (inch) 17.3’’L×11’’W×5.5’’H - 4U
Main Unit Weight/Receiver 12LB/0.3LB (6kg)/(0.1kg)
1 2 3
4
5 6
HDMI MATRIX 8:8:2
