ABtUS CAT-HDX11T/A1 - Manual (Page 2)

User Operation Guide
**Specification are subjected to changes without notice. . . for detail and updated information please visit www.abtussingapore.com

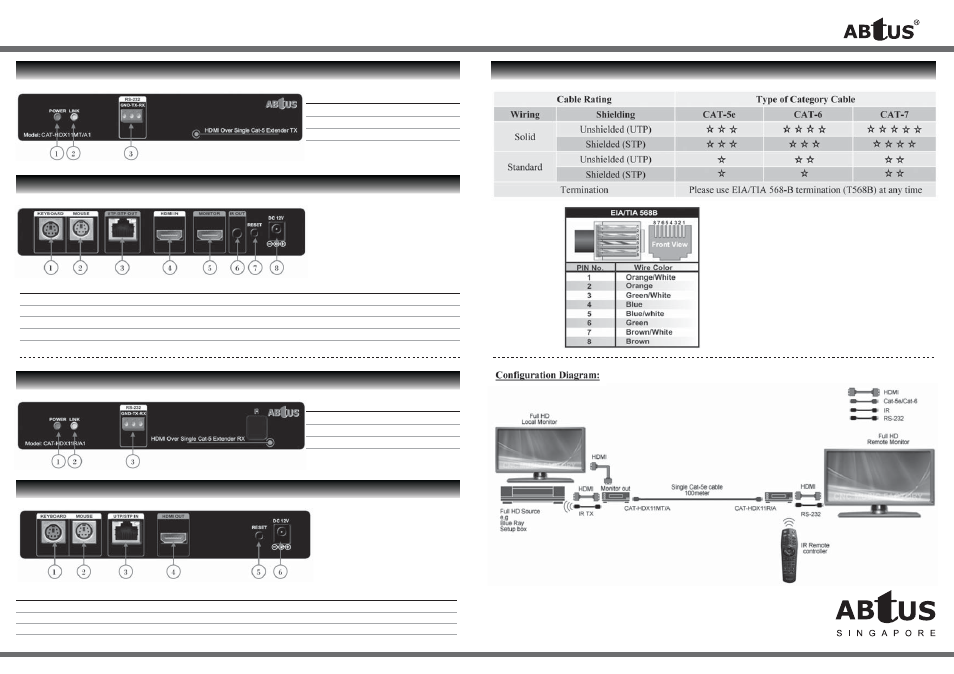

FRONT PANEL VIEW PERFORMANCE GUIDE FOR HDMI OVER CATEGORY CABLE TRANSMISSION
Item Description
1. Keyboard For Keyboard connection
2. Mouse For Mouse connection
3. UTP/STP IN Cat-5 Input connected from Tx
Item Description
4. HDMI OUT HDMI Output to Monitor/TV connection
5. RESET For system reset if transmission fault
6. DC 12 V For supply of power to device
Item Description
1. Power Indicator (LED)
2. Link Indicator (LED)
3. RS-232 pass through Control port
BACK PANEL VIEW
Item Description
1. For Keyboard connection
2. For Mouse connection
3. Cat-5 Output connected to Rx
4. HDMI Input for source connection
Item Description
5. HDMI Output to local monitor/TV
6. IR pass through from Rx for control source device
7. For system reset if transmission fault
8. For supply of power to device
FRONT PANEL VIEW
Item Description
1. Power Indicator (LED)
2. Link Indicator (LED)
3. RS-232 pass through Control port
BACK PANEL VIEW
Typical Application
Any integration that required simple and cost effective HDMI over long Cat-5 extender solution
• Schools (Lab, Hall ect.) • Churches • Corporate Applications (Function Room) • Rental • Home
**Note:
Because the quality of the category cables
has the major effect on how long the
transmission limit can achieve and how
good is the received picture quality, the
actual transmission range is subject to
one’s choice of Cat-5e/6/7 cables.
CAT-HDX11MT/A1
CAT-HDX11R/A1
