DENTIFYING
E
XTERNAL
C
OMPONENTS
Front Panel

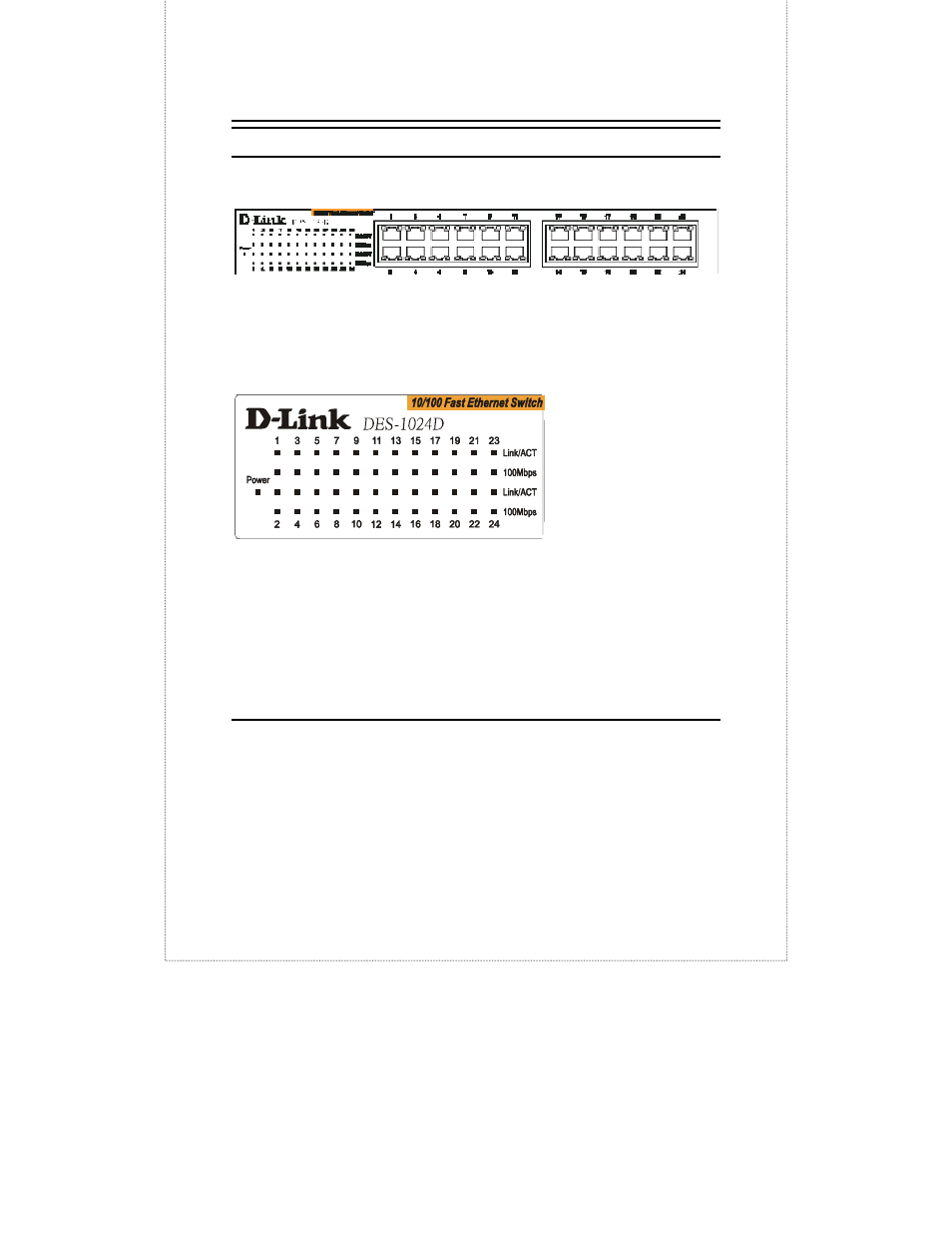

The figure below shows the front panels of the switch.
24-port 10/100Mbps Fast Ethernet Switch
LED Indicator Panel
Refer to the next chapter for detailed information about each of the switch’s
LED indicators.
„ Power (PWR)
This green LED indicator illuminates when the switch is receiving power;
otherwise, it is off.
„
Link / Activity
This green LED indicator illuminates when the port is connected to a Fast
Ethernet or Ethernet station; the indicator blinks when transmitting or
receiving data.
